OEM Spectrometers

Instrument design around a ROCK spectrometer
Instrument design around a ROCK spectrometer

Ibsen offers a wide range of robust, athermal, industrial-grade OEM spectrometers that can be tailored to your exact needs. We are dedicated to being your preferred OEM partner for spectroscopic modules by offering the following benefits:

  • High sensitivity/optical throughput due to our in-house produced fused silica transmission gratings
  • Compact spectrometers in a miniature size which is possible due to our high dispersion gratings
  • Proven, environmentally robust, and thermally stable optomechanical benches with low unit-to-unit variation
  • Volume manufacturing with high quality, consistent performance, and flexible delivery
  • A dedicated OEM support team to assist you throughout your project development and manufacturing phases
  • Senior-level optical and mechanical design experience

You can find more details about our spectrometer platforms below. We also offer extensive integration and support services as well as an OEM project model for customers that want us to develop a spectrometer variant.

Spectrometer Platforms

We base our OEM spectrometers on a range of basic platforms as well as the ROCK, FREEDOM, PEBBLE, PEAK, and EAGLE series of standard spectrometer configurations. On our application pages, you can find help to identify which of our spectrometer platforms that best suit your needs.

To learn more about the benefits of transmission grating-based spectroscopy, see our white paper here.

PEAK – DMD Based Spectrometers

The PEAK platform enables a whole new dimension of programmability in your spectroscopic instruments that have not been possible with any other spectrometer technology on the market.

PEAK utilizes IBSEN’s high efficiency fused silica transmission gratings combined with Texas Instruments’s DLP® technology in order to provide spectral programmability.

PEBBLE – Miniature Spectrometers

The PEBBLE spectrometers combine an ultra-compact form factor of only 17 mm x 15 mm x 8 mm with high resolution and sensitivity as well as environmental ruggedness.

PEBBLE utilizes a new, fast, and very sensitive CMOS detector array with 256 pixels. When combined with a large numerical aperture of 0.22 (low f-number of f/2.2) PEBBLE provides amazingly high sensitivity for such a small spectrometer.

FREEDOM – Compact, High-Performance Spectrometers

The FREEDOM spectrometers combine compactness and low cost with high performance and are the ideal OEM solution for all those handheld and portable system applications, where performance cannot be sacrificed to obtain compactness and/or low cost.

Our designs are extremely flexible and can be fitted with almost any detector and electronics through our unique modular concept. Therefore, you can choose to buy the Spectrometer gratings or the complete Spectrometer with or without electronics from Ibsen.

You can find a detailed overview of the available FREEDOM spectrometer configurations here.

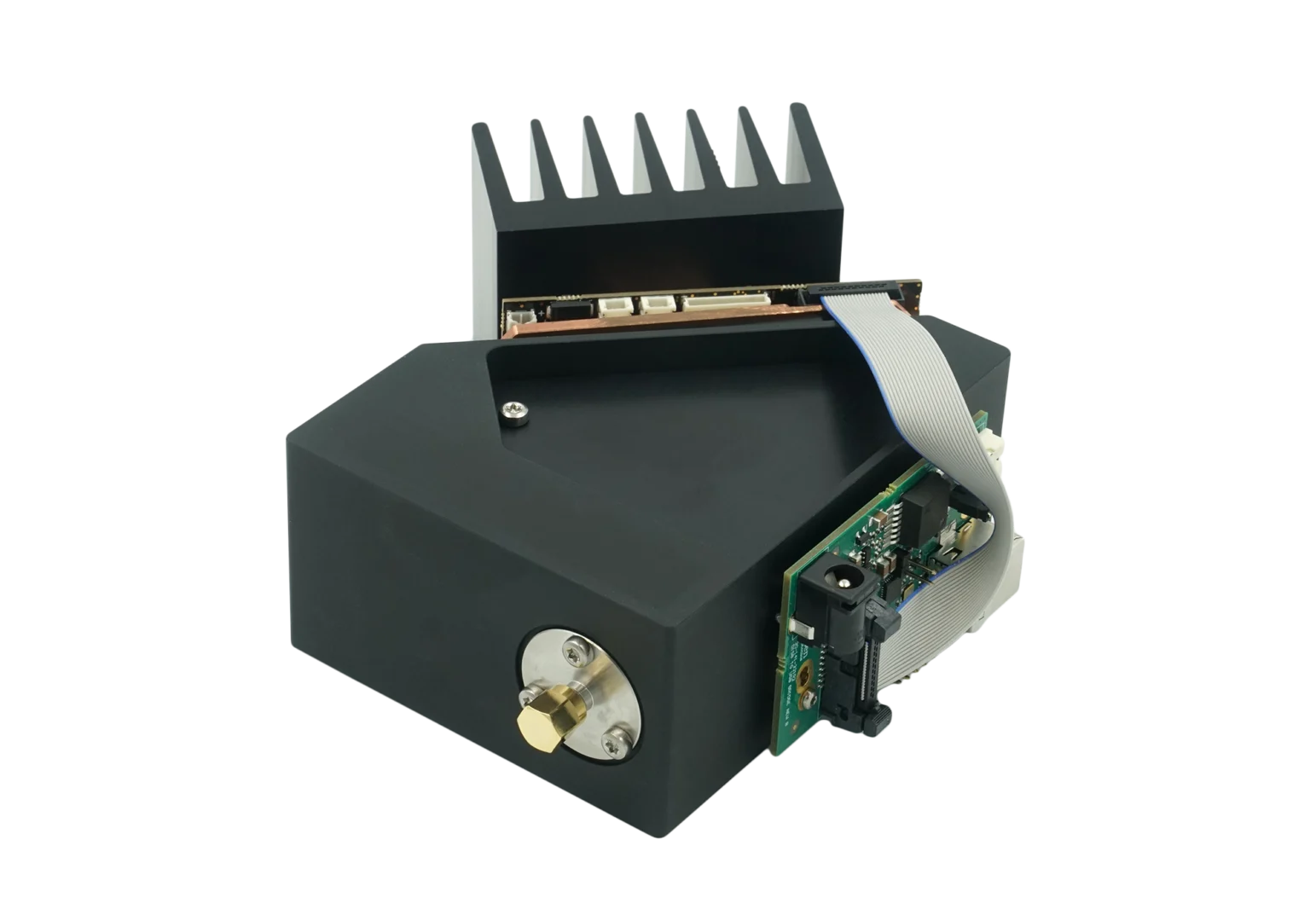

ROCK – High-Efficiency Spectrometers

Due to a low f-number of 2.2 and our highly efficient transmission gratings, the ROCK series offers very high throughput spectrometers – typically 4 times higher than conventional Czerny-Turner-based spectrographs.

Our designs are extremely flexible and can be fitted with almost any detector through our unique modular concept. Therefore, you can choose to buy the Spectrometer gratings or the complete Spectrometer from Ibsen.

You can find a detailed overview of the available ROCK spectrometer configurations here.

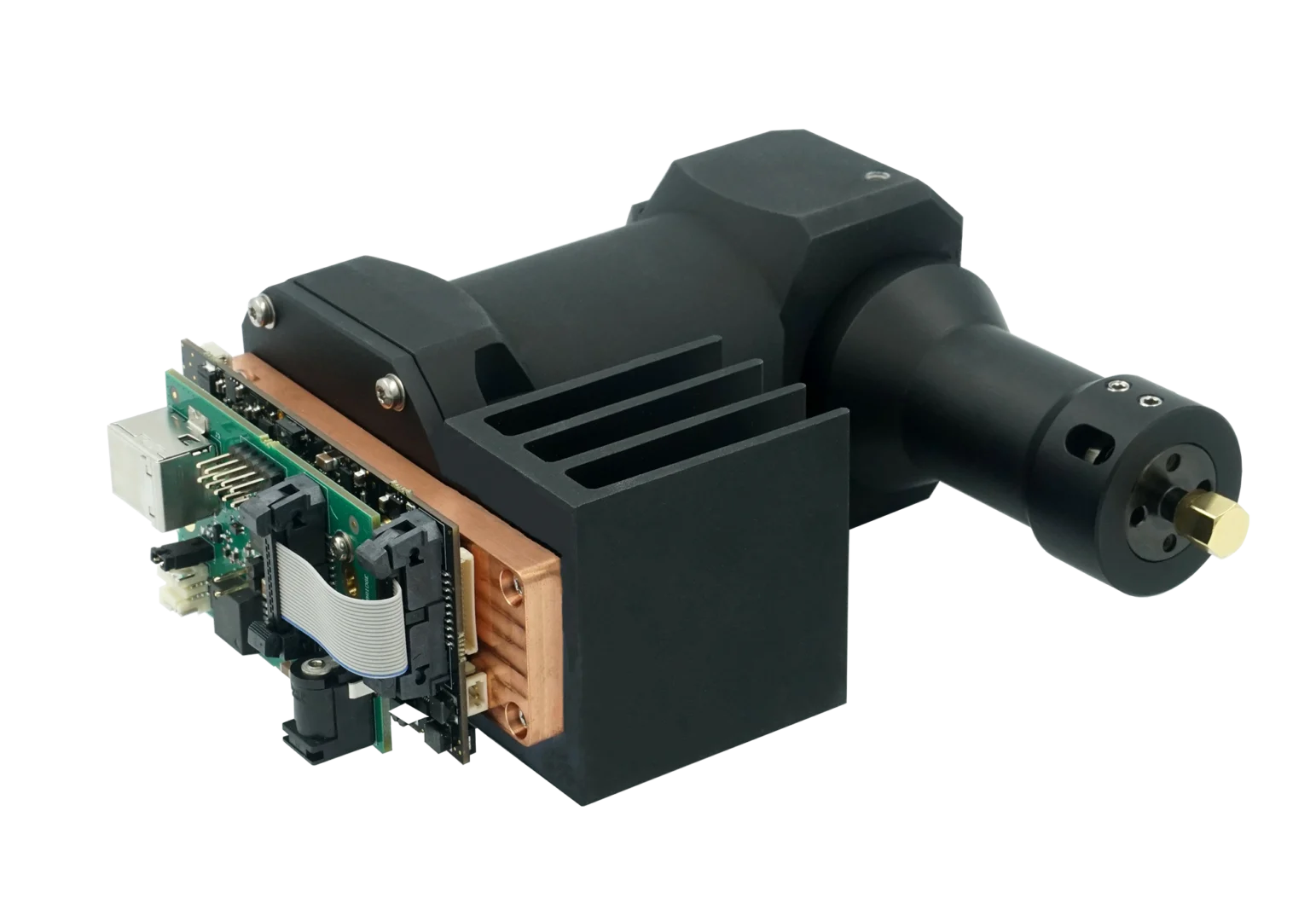

EAGLE – High-Resolution Spectrometers

The EAGLE spectrometers are robust, athermal, industrial grade, diode array based spectrometers especially well-suited for Spectral Domain Optical Coherence Tomography and Raman spectroscopy, due to a high optical resolution.

You can find a detailed overview of the available EAGLE spectrometer configurations here.

Ordering

Request a quotation for any of our spectrometers here. If you have special requirements just enter those into the “Request quotation” form.
