NIR spectrometers for system integration

Choosing the right NIR spectrometer for your application

NIR spectrometers are crucial tools for analyzing samples in the near infrared spectrum (typically 900 – 2100 nm). NIR instruments utilize a light source and a spectrometer to measure the absorbance or emission of light by a sample. When selecting a NIR spectrometer, it is essential to consider the specific application requirements, such as wavelength range, resolution, sensitivity, and stray light performance.

The resolution of the spectrometer determines its ability to distinguish between closely spaced spectral features, which is vital for accurate analysis. Sensitivity and stray light performance are also critical, as they affect the spectrometer’s ability to detect low concentrations of analytes in a large dynamic range.

Our NIR spectrometers are designed to provide high sensitivity and resolution, making them ideal for diverse applications, including absorption spectroscopy. They feature advanced optics and electronics to ensure precise measurements and can be easily integrated into OEM systems. Furthermore, our compact design and robust construction make them suitable for industrial environments.

NIR spectrometers

Best in class broadband gratings for NIR spectrometers

The high sensitivity of our NIR spectrometers is obtained through in-house manufactured transmission gratings.

Our gratings provide unparalleled high broadband efficiency, enabled by optimized groove profiles, a thin optical path, and a high refractive index contrast. The inherent nature of fused silica ensures our gratings are environmentally stable while working in transmission, providing angle insensitivity and vibrational stability.

We design our visible light spectrometers to perfectly match and supplement the performance of our gratings, but we also supply gratings for use in your own NIR spectrometer design.

NIR spectrometers

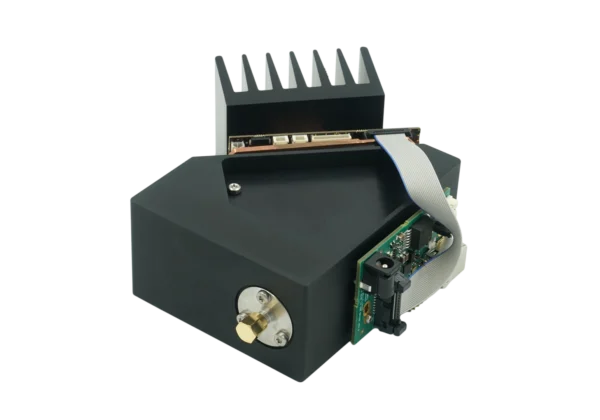

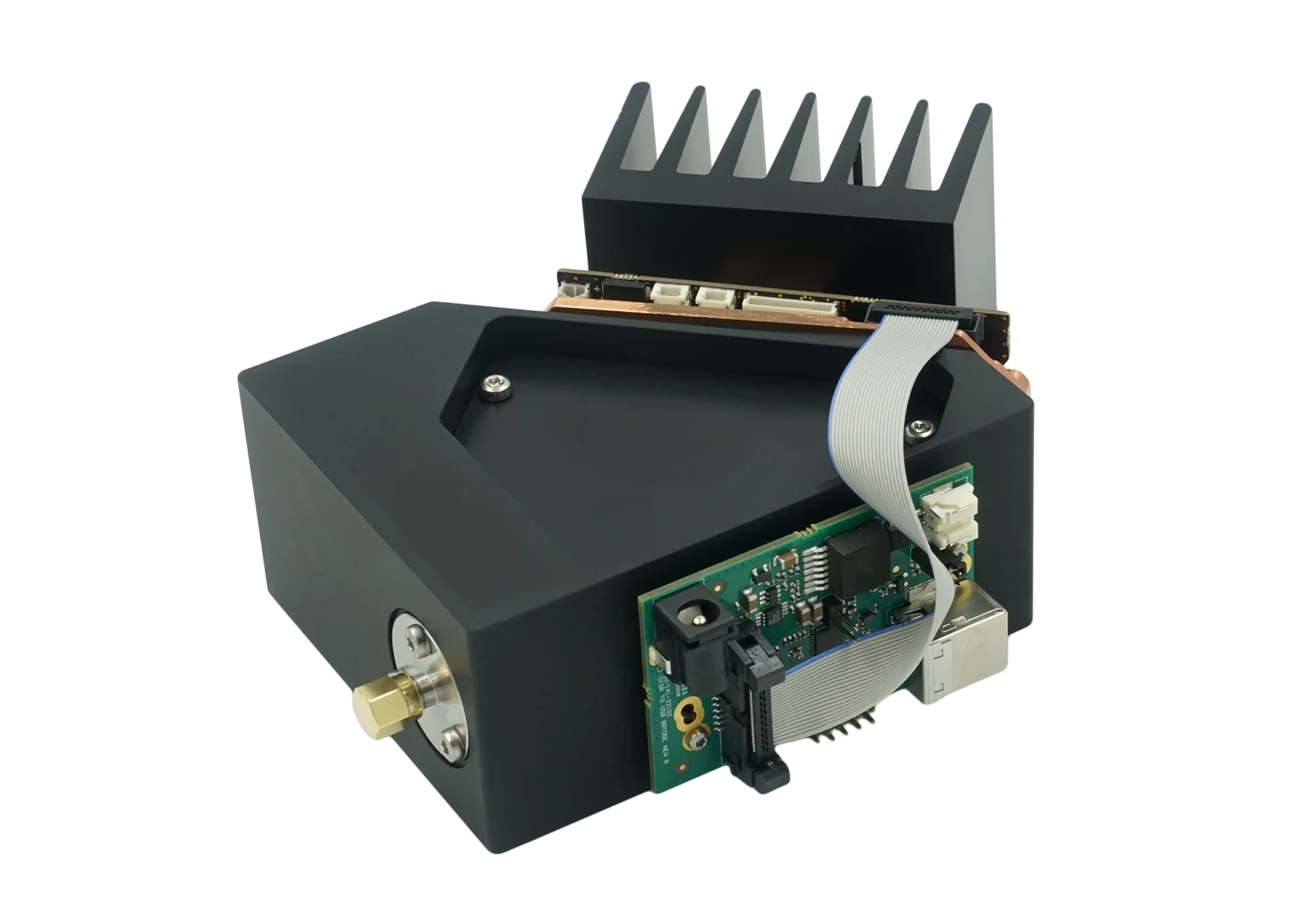

Our NIR spectrometers

ParameterUnitROCK NIRPEBBLE NIRROCK XNIR
Wavelength rangenm900 - 1700950 - 17001100 - 2100
Best resolution
(Typical values)1)
nm3.39.55.6
Numerical aperture0.11 or 0.220.220.11 or 0.22
Optical inputSMASMA or free space
SMA
Detector options Hamamatsu G11508-256
Hamamatsu G11508-512
Hamamatsu G13913Hamamatsu G11477-256
Hamamatsu G11477-512
Electrical interfaceSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm123 x 148 x 4823 x 21 x 8131 x 149 x 54

1) Other resolutions are obtainable with different slit sizes. Please, note that resolution can be influenced by specific detector type.

Ibsen as your NIR spectrometer manufacturer

At Ibsen, we understand that volume manufacturing of application-specific NIR spectrometers is a completely different task than building a single scientific instrument. We are an ISO 9001 and 13485 certified manufacturer with decades of experience in volume manufacturing of OEM spectrometers.

Our emphasis is on the high and consistent quality of our products, ensured through our proven, robust designs and 100% outgoing inspection. Especially for laser induced breakdown spectroscopy, our low unit-to-unit variation can help you achieve a lean manufacturing process and deliver products with a consistently high quality to your customers.

Our spectrometer designs have undergone environmental qualification to ensure proper operation within specified thermal, humidity, vibrational, and drop test conditions.

We have established long-term relationships with a range of qualified sub-suppliers, ensuring you a stable supply chain. Furthermore, we offer our OEM customers flexible supply options, typically based on frame order contracts or Kanban agreements.

All in all, Ibsen Photonics is a well-established spectrometer supplier that enables you to focus on your core business.

Advantages working with Ibsen:

  • Specialists in volume manufacturing

  • ISO 9001 and 13485 certified with decades of experience

  • High and consistent quality assurance

  • Low unit-to-unit variation for consistent quality

  • Environmentally qualified spectrometer designs

  • Stable supply chain with flexible supply options

  • Enabling you to focus on your core business

NIR spectrometer FAQ

General questions about NIR spectrometers

A NIR spectrometer is an instrument used to measure the intensity of light in the near infrared (NIR) range (900-2100 nm) of the electromagnetic spectrum. It analyzes how light interacts with a sample, providing valuable data for various applications.

NIR spectrometers utilize a diffraction grating to disperse the spectrum across an array of photo-detectors

NIR spectrometers have a wide range of applications across various fields due to its ability to analyze chemical and physical properties in solids and liquids. Some of the main applications are food and agriculture, phamaceuticals, environmental monitoring and chemical industry.

When selecting a NIR spectrometer, consider your requirements to wavelength range, resolution, sensitivity, and signal-to-noise ratio as key factors. Also, footprint, environmental robustness and cost should be considered.

Yes, our NIR spectrometers are designed as OEM modules for seamless integration into your systems. Their compact design and advanced electronics ensure easy incorporation into various setups.

Our OEM NIR spectrometers offer high sensitivity and resolution, compact design, and robust construction. They provide accurate measurements and are suitable for both laboratory and field applications, enhancing your system’s capabilities.
