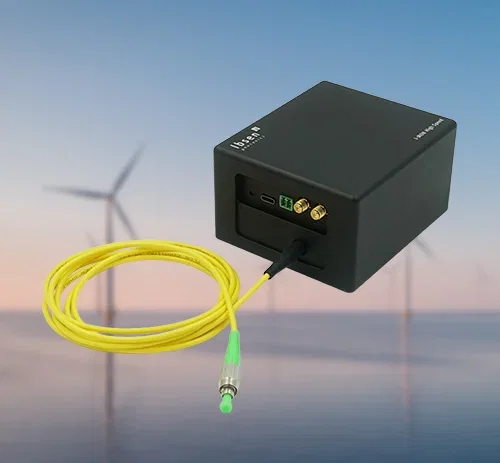

I-MON High Speed

High speed and rugged

The I-MON 256/512 High Speed is designed for demanding applications requiring high speed, real-time analysis while maintaining sub-picometer wavelength fit resolution. With its EMC shielded housing and reinforced fiber, the I-MON is highly rugged and well-suited for both industrial applications as well as lab-type experiments.

High speed measurement example:

To demonstrate the capabilities of the I-MON 256 High Speed, Ibsen has made a measurement of the wavelength modulation from a piezo actuated FBG sensor with a 1 kHz tone. As seen from the picture to the right, the I-MON 256 High Speed resolves the modulation perfectly.

1 kHz modulation of FBG measured by I-MON 256 HS
I-MON High Speed

Product selector guide

ParameterUnitI-MON 256 HSI-MON 512 HS
Wavelengthnm1525-15701275-1345 / 1510-1595
Max number of sensors-3770
Number of pixels-256512
Wavelength fit resolutionpm<0.5<0.5
Wavelength linearitypm5 (typ)5 (typ)
Max speedHz35,00017,000
Sizemmxmmxmm124x94x59124x94x59

Want to know more?

For further information see below.

Ask the experts

Do you want to discuss your I-MON project with one of our experts? Please fill out the form, and we will contact you as soon as possible.

Contact us

Contact sales

Would you like to receive a quotation for one of our standard I-MON or maybe discuss a customized version? Please, fill in your contact details and we will get back to you shortly.

Contact sales

The I-MON interrogation monitors are suitable for a wide range of applications

FBG Sensing:

Vibration analysis
Temperature measurements
Pressure monitoring
Strain measurements
