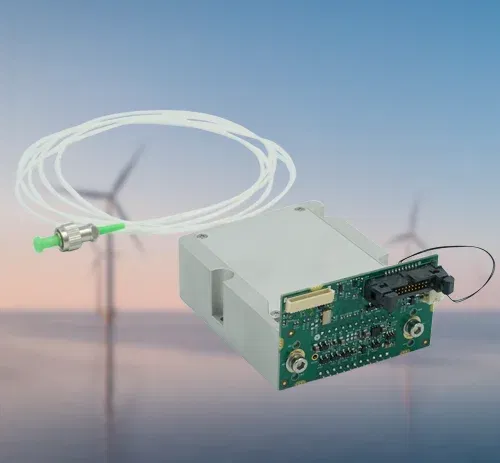

I-MON DISB

Compact, light weight and cost efficient

The I-MON DISB Interrogation Monitors are designed for customers who want to operate the I-MON via a reliable industrial interface. The DISB electronics is interfaced via SPI and can be connected directly to the customer’s microprocessor-based control electronics.

The DISB electronics convert the analog video output from the detector to a 16-bit digital signal that can be read over the SPI interface. It offers software and hardware trigger control, onboard averaging, region of interest, and advanced lamp control.

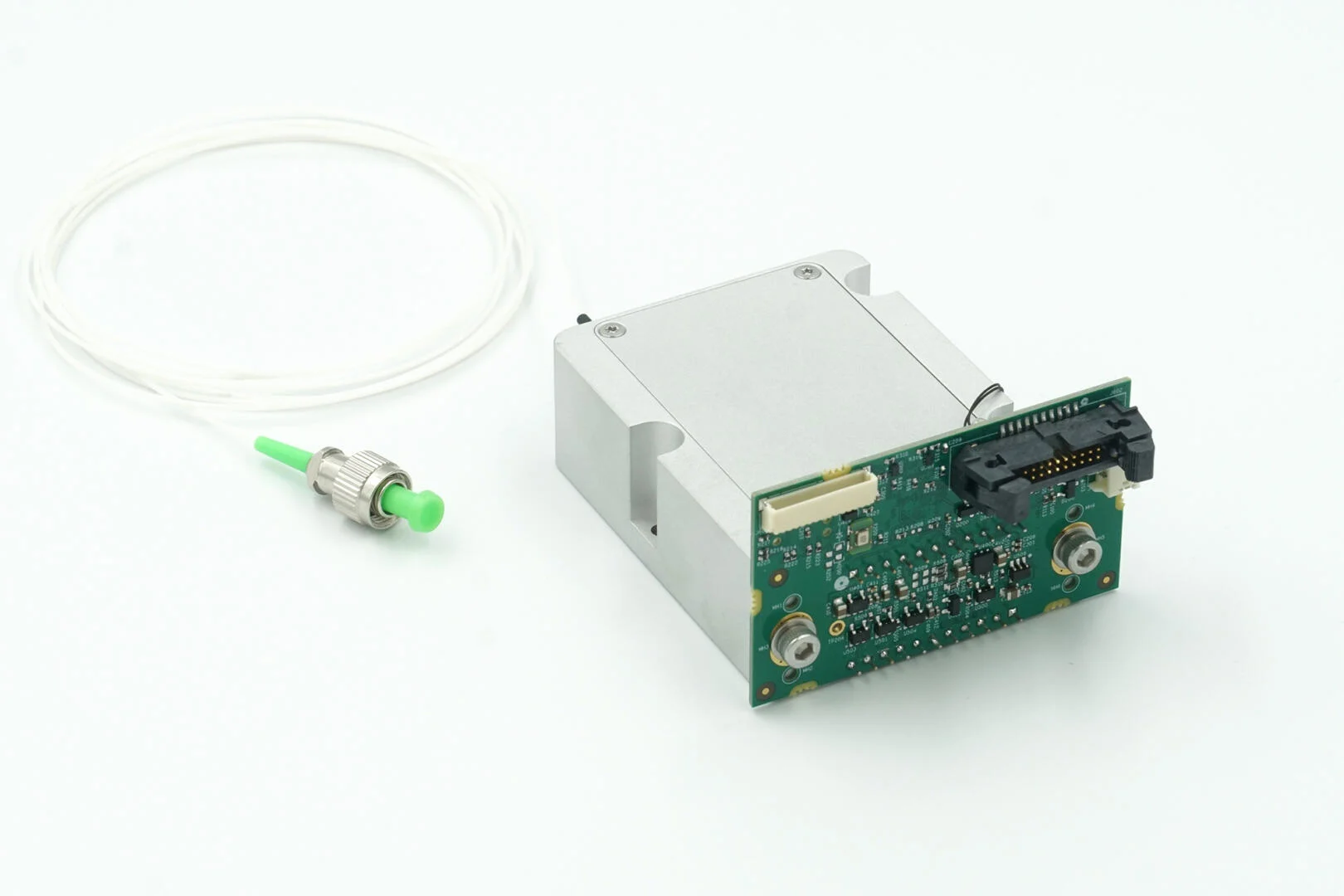

The I-MON 256 DISB and 512 DISB are based on our OEM series using a high speed InGaAs detector array for sensing at 1550 nm. The I-MON 256/512 DISB uses the same electrical interface, making it easy to use the same software to control either device.

The I-MON 835 DISB offers a cost-effective, yet high performing, sensing solution for 835 nm FBG’s.

All our I-MON DISBs are offered with a Developer’s Kit to get started plug and play.

Product selector guide

ParameterUnitI-MON 256 DISBI-MON 512 DISBI-MON 835 DISB
Wavelengthnm1525-15701510-1595810-860
Max number of sensors-377045
Interface-SPI
Diode array-Hamamatsu G11620 seriesHamamatsu S11639N-01
Number of pixels-2565122048(*)
Max speedHz5,0002,500600
Sizemmxmmxmm78x58x3684x58x3683x71x43

(*) Only 1024 pixels are illuminated

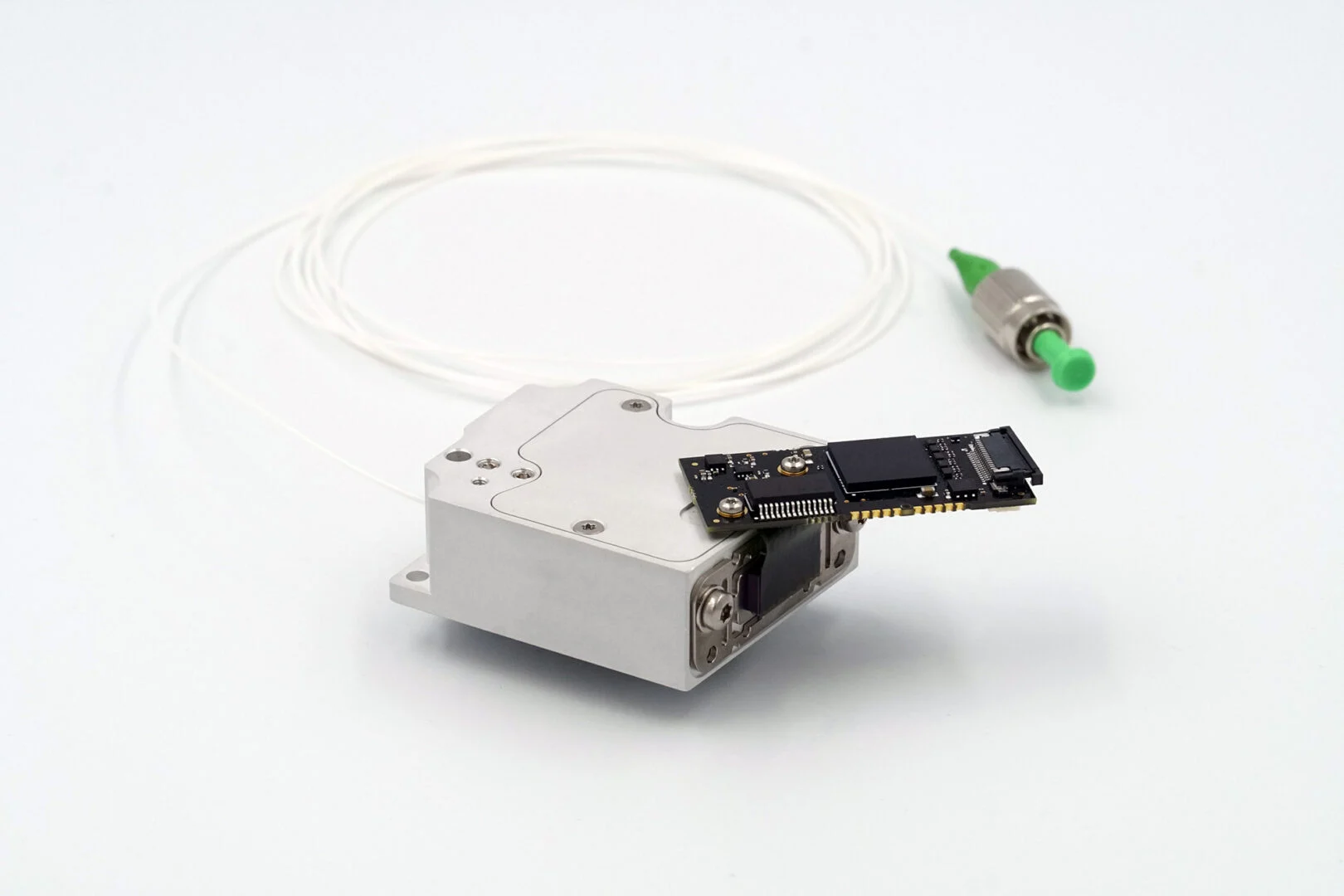

I-MON DISB with Developer’s Kit

Enables Plug-and-Play Operation with the I-MON DISB

The I-MON DISB Developer’s Kit will demonstrate the performance of the I-MON DISB in an easy manner without the need for hardware interfacing and tedious programming from the customer’s side. It enables the customer to use the I-MON DISB with its own light sources and FBG sensors using a PC as a monitor and thereby test the basic performance via standard spectrometer software.

Package content

The I-MON DISB Developer’s Kit contains the following items:

  • I-MON DISB Module

  • DISB-USB Bridge

  • Interface- and trig cables

  • Quick guide with a download link for software and manuals

Want to know more?

For further information see below.

Ask the experts

Do you want to discuss your I-MON project with one of our experts? Please fill out the form, and we will contact you as soon as possible.

Contact us

Contact sales

Would you like to receive a quotation for one of our standard I-MON or maybe discuss a customized version? Please, fill in your contact details and we will get back to you shortly.

Contact sales

I-MON interrogation monitors are suitable for a wide range of applications

FBG Sensing:

Vibration analysis
Temperature measurements
Pressure monitoring
Strain measurements
