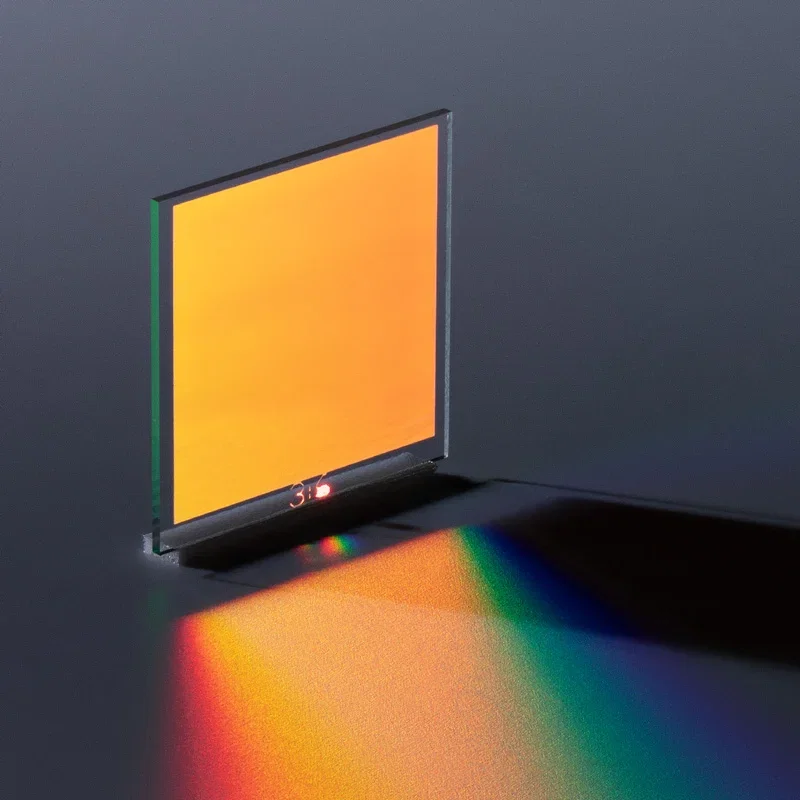

Ibsen Fused Silica Transmission Gratings are the ideal choice for applications ranging from high power lasers to telecom devices to compact spectrometers.

See White paper

Diffraction gratings are used either as beam splitting elements (e.g. Phase masks) or as dispersion elements for wavelength separation. Ibsen fused silica transmission gratings are the ideal grating choice for a wide range of applications:

  • Telecom devices such as Wavelength Selective Switches (WSS), Tunable Filters (TF) and Optical Channel Monitors (OCM)

  • High power laser applications such as pulse stretching / compression, spectral beam combining or beam-splitting

  • Compact spectrometers for absorption spectroscopy, fluorescence spectroscopy, Raman spectroscopy, OCT and color measurements

Advantages:

Ibsen’s fused silica grating technology was developed by Ibsen in the mid 90’s and has continuously evolved ever since. Ibsen’s gratings are characterized by being 100% dielectric, surface relief etched transmission gratings, and offer many advantages:

  • Environmentally stable as no coatings, polymers or epoxies are used

  • Low thermal expansion coefficient

  • Low temperature sensitivity

  • Highest energy / power damage threshold

  • Transmission gratings provide more flexibility in the optical design than reflection gratings – choice of beam path, multiple gratings

  • Ideal in cases where the input location must be spatially separated from the detector location

  • Combined wavelength dispersion and beam folding elements

  • Absence of complex absorption issues provides more homogenous DE values over the spectral band

  • Holographic or lithographic exposure, etched gratings

  • High diffraction efficiency combined with high dispersion

  • High tolerance to illumination angle of incidence

  • Low stray lightfused silica transmission gratings

Product overview

PING-Sample-001

Polarization independent gratings (PING)

TELECOM (WSS, TF, OCM), RAMAN, OCT, ETC

100% dielectric gratings offer unbeatable environmental and thermal stability combined with high-efficiency, low PDL performance.

Go to PING
PCG-1250-10XX-984

Pulse compression gratings (PCG)

PULSE COMPRESSION/STRETCHING, SPECTRAL BEAM COMBINING, ETC

Fused Silica Transmission Gratings – unbeatable energy/power damage threshold combined with high-efficiency spectral performance.

Go to PCG
FSTG-XVIS1274-920

Spectrometer gratings

FROM UV BANDWIDTHS
OVER VIS TO NIR

Ibsen Fused Silica Transmission Gratings enable high resolution, high efficiency gratings that are ideal for compact spectrometers.

Go to Spectrometer gratings

Phase masks

BEAM SPLITTING GRATINGS

Phase masks are the production tool used to write gratings in fibers and waveguides. Ibsen Phase masks incorporate unbeatable, interferometric (holographic) patterning technology into a production friendly Phase mask.

Go to Phase masks

Ibsen makes gratings for many other applications too. If you find that your fused silica transmission grating application is missing, just specify your grating requirement / request a quotation below.

Which transmission grating to use?

For further information or to request a quotation please contact us.

Ask the experts

Do you want to discuss your transmission grating project with one of our experts? Please fill out the form, and we will contact you as soon as possible.

Book a call back

Get a price

Ibsen makes gratings for many applications. If you find your fused silica transmission grating application missing, specify your grating requirement/request a quotation here.

Request a quotation
