UV-VIS spectrometers for system integration

Choosing the right UV-VIS spectrometer for your application

UV-VIS spectrometers are important for analyzing samples in the ultraviolet, visible and near-infrared spectrum (typically 200-1100 nm). UV-VIS instruments utilize a light source and a spectrometer to measure the absorbance or emission of light by a sample. When selecting a UV-VIS spectrometer, it is essential to consider specific application requirements, such as wavelength range, resolution, sensitivity and stray light performance.

The resolution of the spectrometer determines its ability to distinguish between closely spaced spectral features, which is vital for accurate analysis. Sensitivity and stray light performance is also critical, as it affects the spectrometer's ability to detect concentrations of analytes within a large linear dynamic range.

Our UV-VIS spectrometers provide high broadband sensitivity and resolution, making them ideal for many applications including absorbance spectroscopy, HPLC UV-detectors and optical thin film measurements. They feature our unique UV-VIS transmission gratings with flat spectral response and high dispersion. Our compact spectrometer design and robust construction make them suitable for industrial environments, and low unit-to-unit variation enables seamless integration into OEM systems

UV-VIS spectrometers

Unique high-dispersion and broadband gratings for UV-VIS spectrometers

Our UV-VIS spectrometers are more compact than any other UV-VIS spectrometer on the market due to our in-house manufactured broadband transmission gratings.

Our gratings provide almost flat spectral response over the entire UV-VIS range, enabled by optimized groove profiles, a thin optical path, and a high refractive index contrast. Furthermore, the gratings have a high groove density which lead to extremely compact modules. The inherent nature of fused silica ensures environmentally stable operation.

We design our UV-VIS spectrometers to perfectly match and supplement the performance of our gratings, but we also supply gratings for use in your own UV-VIS spectrometer design.

UV-VIS spectrometers

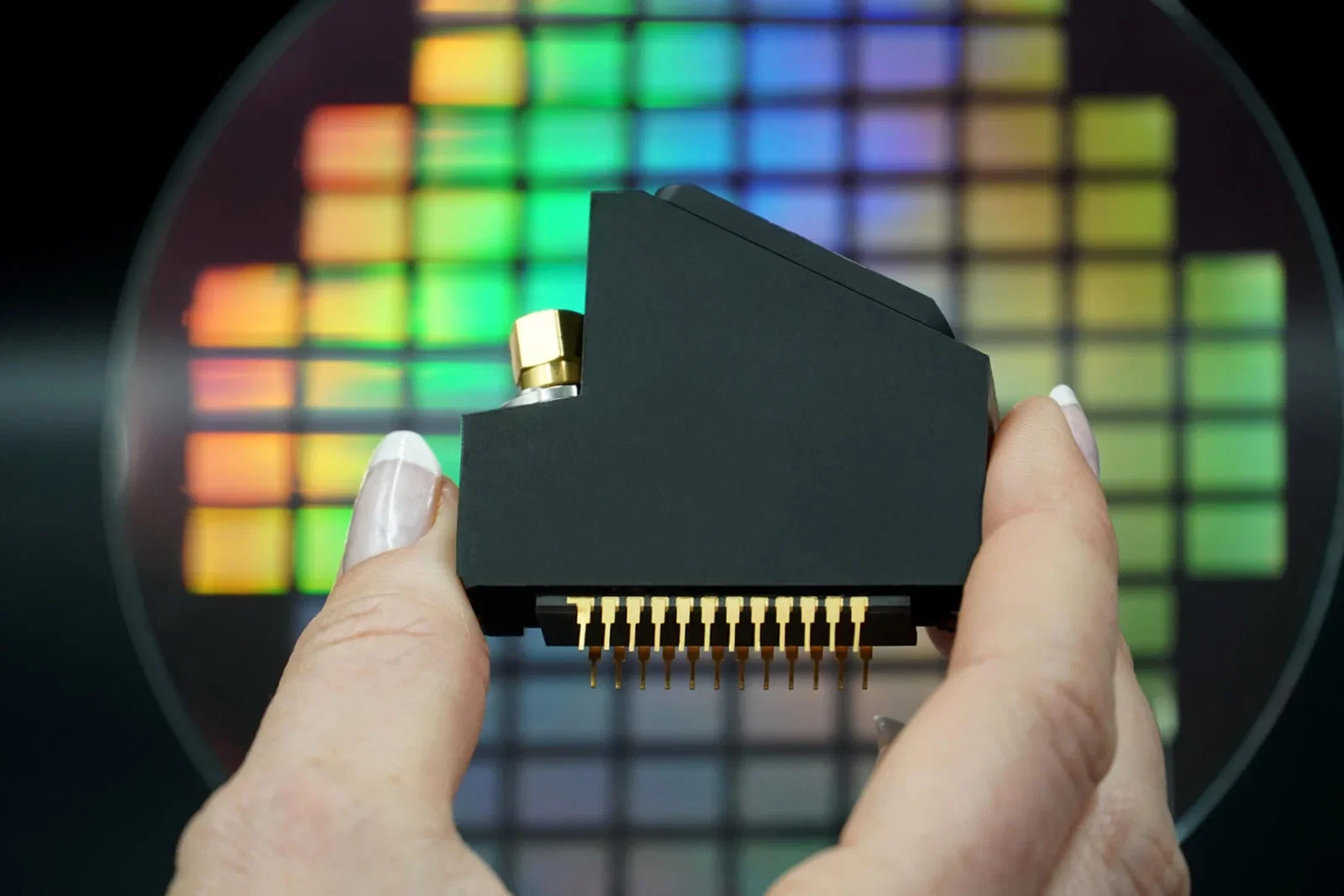

Our UV-VIS spectrometers

ParameterUnitFREEDOM UV-VISFREEDOM UV-NIR
Wavelength rangenm190 - 850190 - 1100
Best resolution
(Typical values)1)		nm1.31.8
Numerical aperture0.150.15
Optical inputSMASMA
Detector options
(Hamamatsu)		S11639N-01
S10420-1106
S11156-2048-02		S11639N-01
S10420-1106
S11156-2048-02
Electrical interfaceSPI or USBSPI or USB
Dimensionsmm x mm x mm54 x 48 x 1654 x 48 x 16

1) Other resolutions are obtainable with different slit sizes. Please, note that resolution can be influenced by specific the detector type.

Ibsen as your UV-VIS spectrometer manufacturer

At Ibsen, we understand that volume manufacturing of application-specific UV-VIS spectrometers is a completely different task than building a single scientific instrument. We are an ISO 9001 and 13485 certified manufacturer with decades of experience in volume manufacturing of OEM spectrometers.

Our emphasis is on the high and consistent quality of our products, ensured through our proven, robust custom spectrometer designs and 100% outgoing inspection. Especially for UV-VIS spectroscopy, our low unit-to-unit variation can help you achieve a lean manufacturing process and deliver products with a consistently high quality to your customers.

Our spectrometer designs have undergone environmental qualification to ensure proper operation within specified thermal, humidity, vibrational, and drop test conditions ensuring seamless industrial spectrometer integration.

We have established long-term relationships with a range of qualified sub-suppliers, ensuring you a stable supply chain. Furthermore, we offer our OEM customers flexible supply options, typically based on frame order contracts or Kanban agreements.

All in all, Ibsen Photonics is a well-established OEM spectrometer supplier that enables you to focus on your core business.

Advantages working with Ibsen:

  • Specialists in volume manufacturing

  • ISO 9001 and 13485 certified with decades of experience

  • High and consistent quality assurance

  • Low unit-to-unit variation for consistent quality

  • Environmentally qualified spectrometer designs

  • Stable supply chain with flexible supply options

  • Enabling you to focus on your core business

UV-VIS spectrometer FAQ

General questions about UV-VIS spectrometers

A UV-VIS spectrometer is an instrument used to measure the intensity of light from the ultraviolet to the visible range and sometimes also into the near infrared  range of the electromagnetic spectrum. It analyzes how light interacts with a sample, providing valuable data for various applications.

Please note, that in some contexts a UV-VIS spectrometer is sometimes called a UV spectrophotometer or UV detector.

UV-VIS spectrometers utilize a diffraction grating to disperse the spectrum across an array of photo-detectors

UV-VIS spectrometers are versatile tools used in many different applications. Some of the more common applications are as UV-detector in HPLC systems and thin film measurements of coatings.

When selecting a UV-VIS spectrometer, consider your requirements to wavelength range, resolution, sensitivity, and signal-to-noise ratio as key factors. Also, footprint, environmental robustness and cost should be considered.

Yes, our UV-VIS spectrometers are designed as compact OEM modules ideal for seamless integration into your systems. Their compact design and advanced electronics ensure easy incorporation into various setups.

OEM UV-VIS spectrometers offer high sensitivity and resolution, compact design, and robust construction. They provide accurate measurements and are suitable for both laboratory and field applications, enhancing your system’s capabilities.
