Ibsen gratings for telecom. When efficiency matters

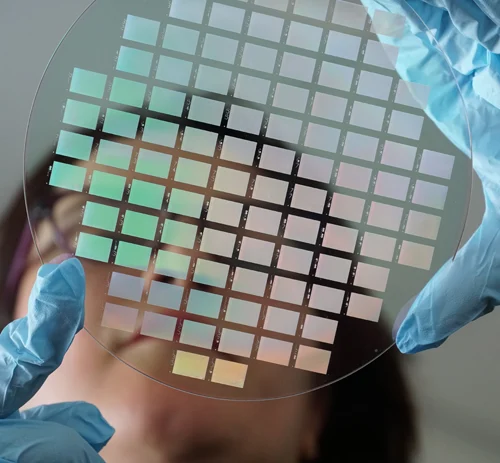

Ibsen’s telecom gratings are advanced, polarization-independent (PING) gratings fabricated using advanced lithographic or holographic stepper patterning combined with reactive ion etching in 100% dielectric materials. This technology provides unmatched thermal and environmental stability, with no polymers, epoxies, gelatins, or metals in the optical path – or anywhere in the grating structure.
The precision of our etching technology delivers industry-leading diffraction efficiency and ultra-low polarization-dependent loss (PDL) across an exceptionally broad bandwidth. Additionally, the low angular sensitivity of our gratings simplifies module design and facilitates seamless integration.
Key benefits
Dual-polarization PING gratings are unmatched when efficiency matters. While this is critical in telecom applications, many other fields also benefit from their exceptional dual-polarization performance. Below is a list of key application areas for PING gratings, both within and beyond telecommunications.
Important applications
Our telecom gratings
C-band gratings
Grating Resolution AOI Grating area Chip size DE (*) PDL
PING-600-052 600 l/mm
29.4°
41 mm x 41mm 42 mm x 42 mm >90% <0.25 dB
PING-840-165d 840 l/mm
45.5°
15 mm x 4.5 mm 16 mm x 5.5 mm >92% <0.3 dB
PING-Sample-003 940 l/mm
46.6°
19 mm x 13.5 mm 21 mm x 15 mm >90% <0.25 dB
PING-966-183d 966 l/mm
48.4°
75 mm x 16.5 mm 77 mm x 18.5 mm >94% <0.25 dB
PING-966-184d 966.18 l/mm
49.9°
19 mm x 13.5 mm 21 mm x 15 mm >90% <0.25 dB
PING-966-015 966.18 l/mm
49.9°
9.5 mm x 6.5 mm 12.3 mm x 7.1 mm >85% <0.8 dB
PING-Sample-001 966.2 l/mm 49.9° 8 mm x 4 mm 9 mm x 8 mm >90% <0.25 dB
PING-Sample-171 966.2 l/mm 49.9°
6.5 mm x 5 mm 7.5 mm x 7 mm >90% <0.25 dB
PING-Sample-182 966.2 l/mm 49.9°
12 mm x 3 mm 15.5 mm x 3.5 mm >90% <0.25 dB
PING-Sample-007 966.2 l/mm 49.9°
10.2 mm x 4.0 mm 11.2 mm x 8.0 mm >90% <0.25 dB
PING-Sample-121 966.2 l/mm 49.9°
14.5 mm x 8 mm 16 mm x 10 mm >90% <0.25 dB
PING-Sample-131 966.2 l/mm 49.9°
14.5 mm x 8 mm 16 mm x 10 mm >92% <0.25 dB
PING-Sample-141 966.2 l/mm 49.9°
14.5 mm x 8 mm 16 mm x 10 mm >94% <0.25 dB
PING-Sample-142 966.2 l/mm 45° 15 mm x 9 mm 16 mm x 10 mm ≥94% ≤ 0.3 dB
PING-Sample-002 966.2 l/mm 49.9°
14 mm x 11.5 mm 16 mm x 13.5 mm >90% <0.25 dB
PING-Sample-083 1000 l/mm
49.9°
19 mm x 13.5 mm 21 mm x 15 mm >90% <0.25 dB
PING-1000-042 1000 l/mm
50°
40 mm x 37 mm 43.6 mm x 38 mm >90% <0.25 dB
SPG-1200-1540-203d 1200 l/mm
67.6°
3.75 mm x 2.75 mm 4.375 mm x 3 mm >92% <0.25 dB
L-band gratings
Grating Resolution AOI Grating area Chip size DE (*) PDL
PING-Sample-072 940 l/mm 48.5° 14 mm x 11.5 mm 16 mm x 13.5 mm >90% <0.25 dB
PING-Sample-073 940 l/mm 48.5° 19 mm x 13.5 mm 21 mm x 15 mm >90% <0.25 dB
PING-966-184d 966.18 l/mm 49.9° 19 mm x 13.5 mm 21 mm x 15 mm >90% <0.25 dB
PING-966-015 966.18 l/mm 49.9° 9.5 mm x 6.5 mm 12.3 mm x 7.1 mm >85% <0.8 dB
O-band gratings
Grating Resolution AOI Grating area Chip size DE (*) PDL
PING-Sample-106 1144.16 l/mm 49.9° 14 mm x 11.5 mm 16 mm x 13.5 mm >90% <0.25 dB
Ibsen as your grating manufacturer
At Ibsen Photonics, we recognize that the optical grating is a mission-critical component in your device or instrument, where performance and reliability are non-negotiable.
As an ISO 9001 and 13485 certified manufacturer, we bring decades of expertise in both prototyping and high volume production of transmission gratings. Our focus is unwavering: to deliver superior, consistent quality.
Our commitment is backed by robust, proven designs, 100% metrology on diffraction efficiency, and comprehensive outgoing inspection. The result? Over hundreds of thousands of gratings deployed in the field – without a single reliability failure or return.
We maintain stable supply chains through long-standing partnerships with qualified sub-suppliers, and offer flexible delivery models tailored to OEM needs, including frame orders and Kanban agreements.
Partnering with Ibsen means you can rely on a trusted, experienced grating supplier – so you can stay focused on advancing your core technology.
Advantages working with Ibsen:
Which transmission grating to use?
For further information or to request a quotation please contact us.
