PING-966-015
PING S+C+L-band telecom grating
Main characteristics:
- Fused silica transmission gratings
- Production technology: Holographic / lithographic stepper patterning and RIE etching
- S+C+L-band is defined as 1460 nm – 1620 nm (but can be OEM customized)
- 100% dielectric materials – No polymers, epoxies, gelatins or metals
- Grating chip thickness: 0.625 mm
- Maximum operating temperature at least 500° C
- Packaging: Packed in semiconductor grade Gelpak containers, sealed in class 10 cleanroom
| Parameter | Specification |
|---|---|
| Grating technology | Surface relief, etched transmission gratings |
| Production technology | Holographic / lithographic stepper patterning and RIE etching |
| Grating resolution | 966.18 l/mm |
| Illumination bandwidth | 1460 nm - 1620 nm |

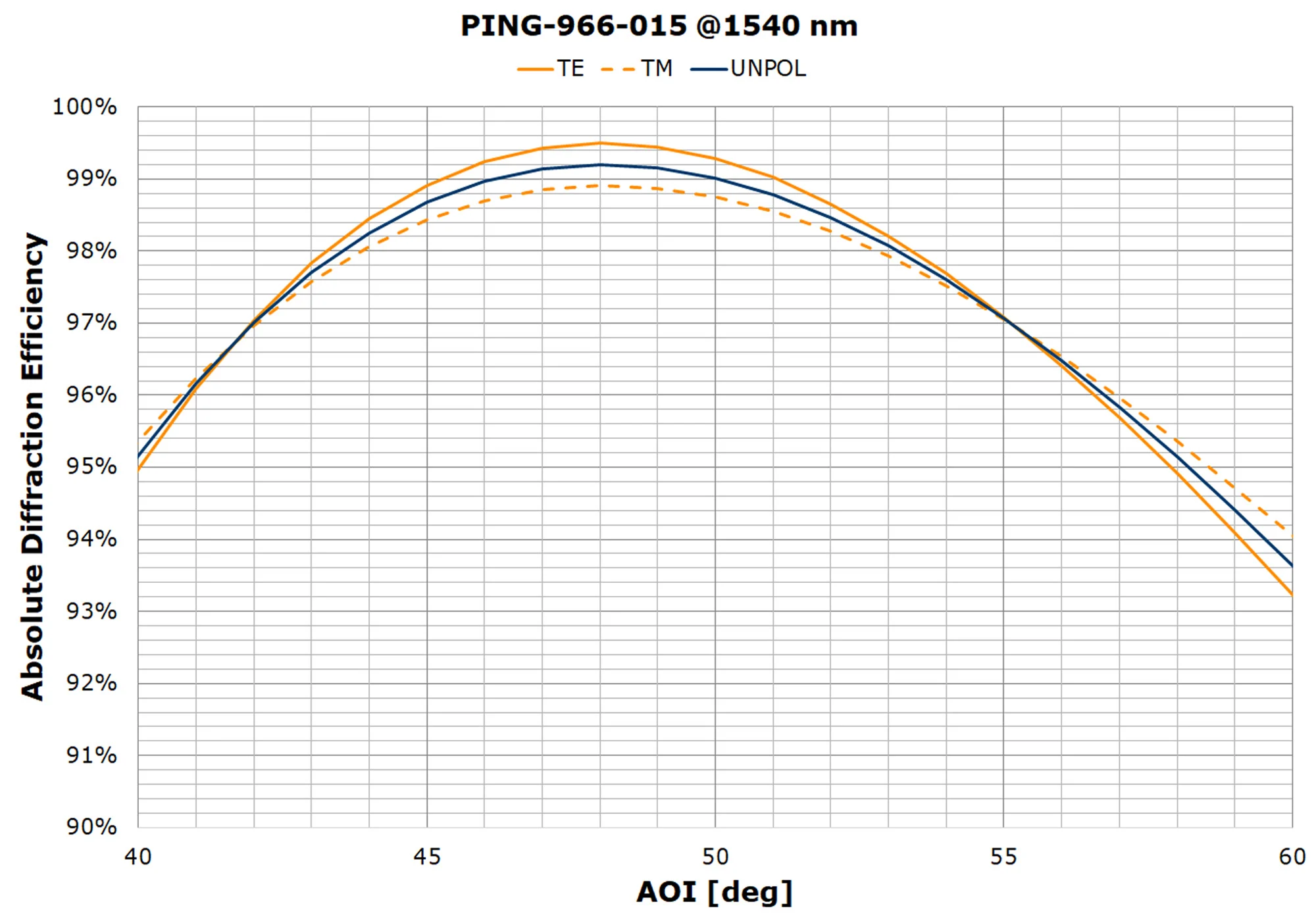

| Angle of incidence | 49.9 deg |

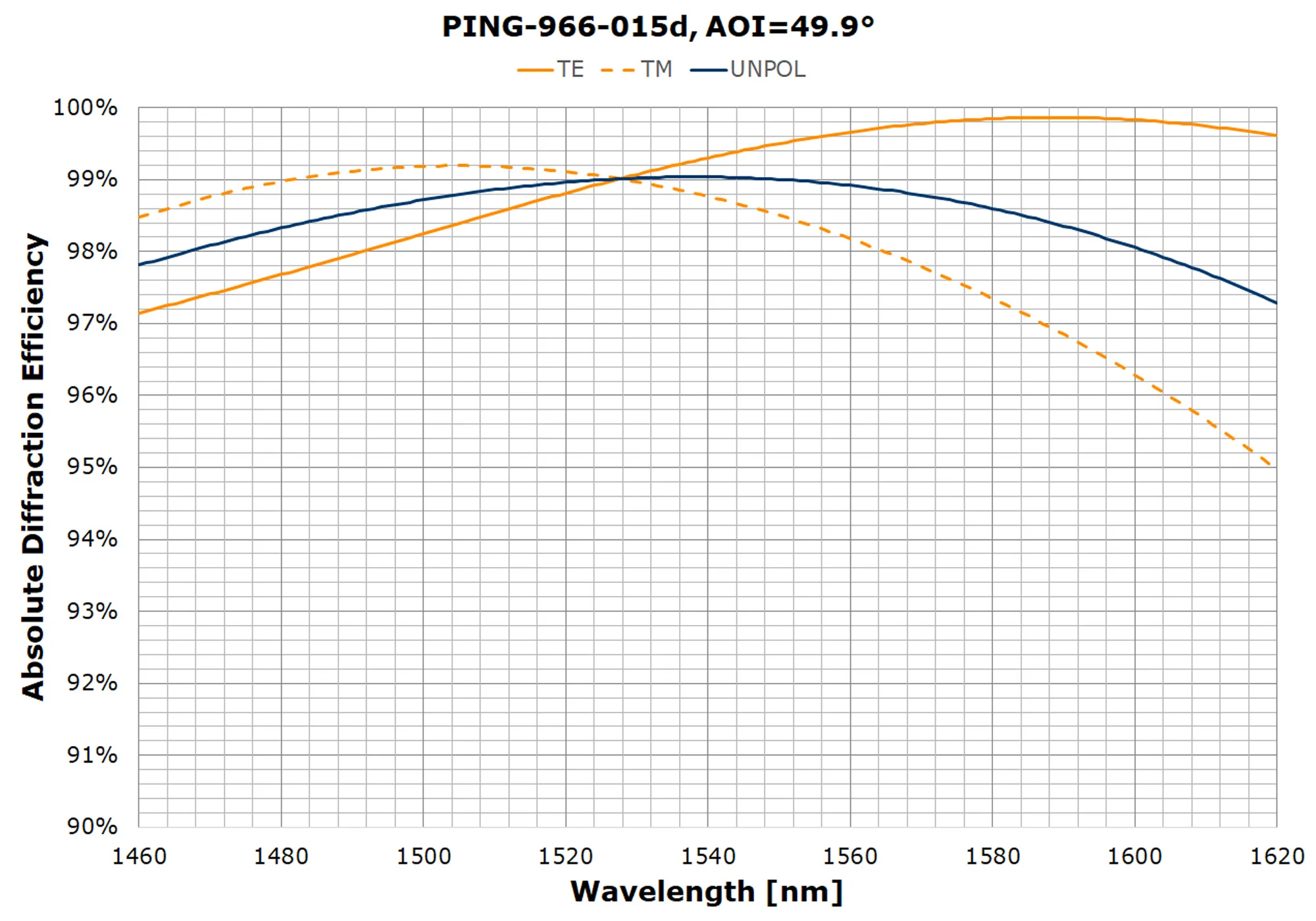

| Diffraction efficiency (TE & TM) | > 85% |
| PDL | < 0.8 dB |
| Materials | 100% dielectric materials |
| Grating area | 9.5 mm x 6.5 mm |
| Chip size | 12.3 mm x 7.1 mm |
| Chip thickness | 0.625 mm |
Download Product Sheets
We are also happy to work with you to design an optimal grating for your OEM requirements. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.
€774,00
Quantity based pricing table
| Min | Max | Unit Price |
|---|---|---|
| 1 | 4 | € 774.00 |
| 5 | 9 | € 574.00 |
| 10 | and more | € 424.00 |
