Spectrometer electronics

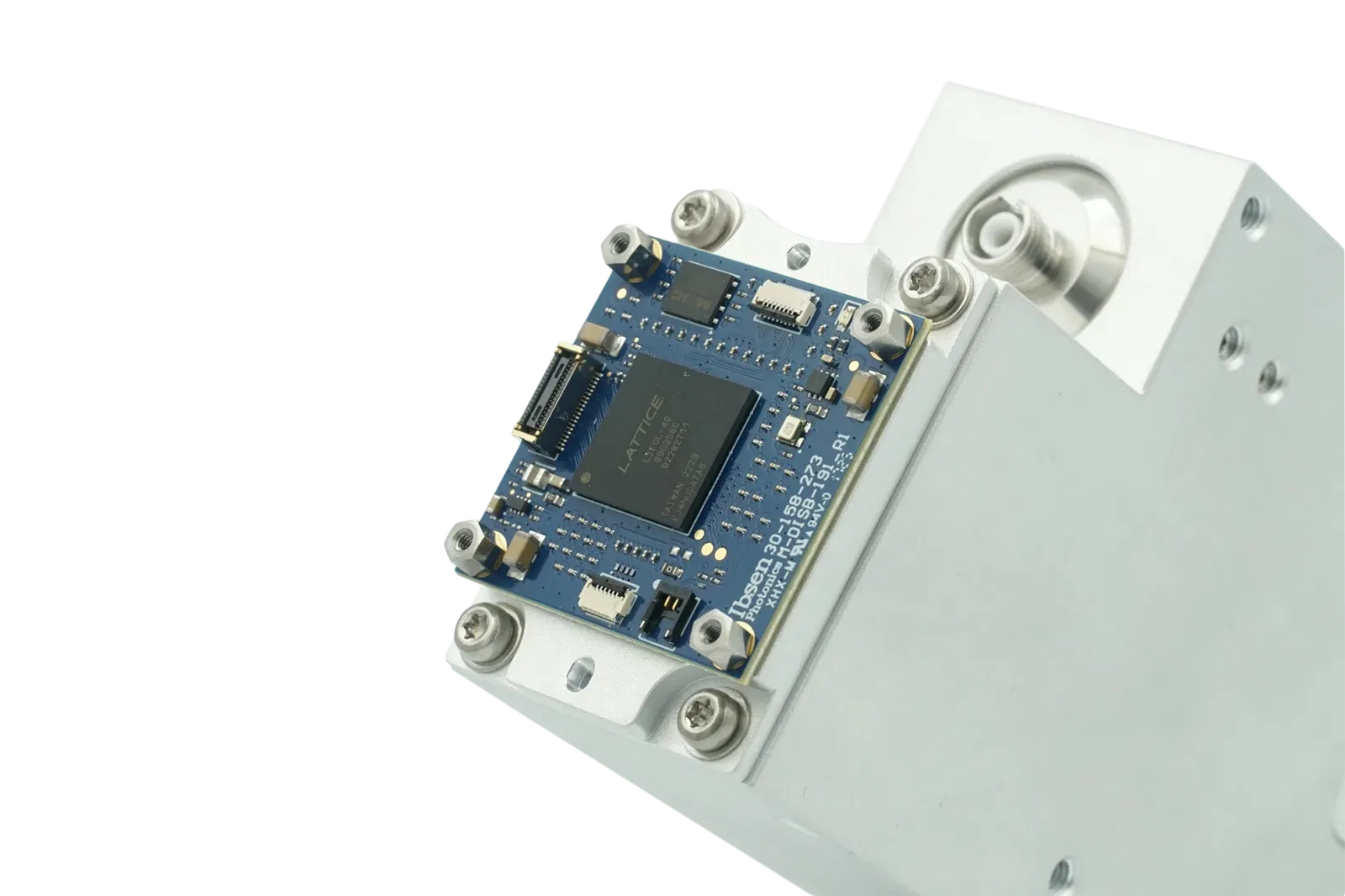

Our spectrometers can be purchased without accompanying electronics, giving direct access to the pins on the chosen detector. Alternatively, Ibsen Photonics can supply our Digital Image Sensor Boards (DISB), designed to operate the detector of choice via hardware commands over a Serial Peripheral Interface (SPI). The DISB electronics can also be supplied with a DISB to USB Bridge board, which converts the SPI connection to a standard USB 2.0 for convenient connection to a PC.
Below, you will find links to all our available electronics.

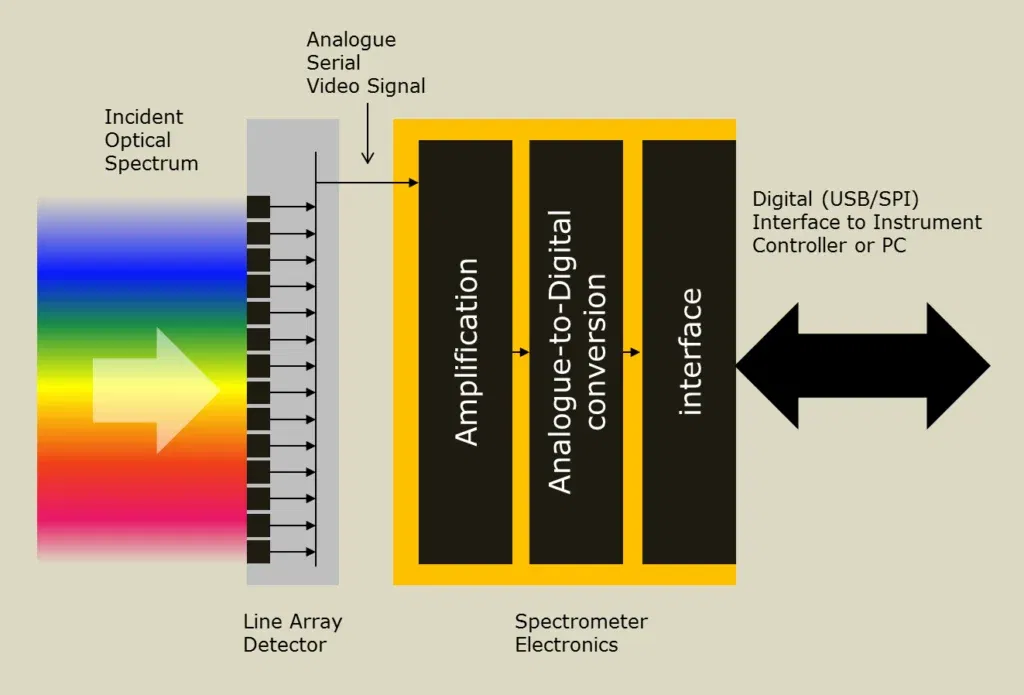

Spectrometer electronics overview
| Parameter | DISB-101T | DISB-105 | DISB-220 | DISB-290 | DISB-315 | DISB-380 |
|---|---|---|---|---|---|---|
| Supported detectors | S11639 S13496 | S14739 | S8380 S8381 | S8382 S8383 | S10420 | S11156 |
| Supported Developer's kit | DISB | Mini-DISB | DISB | DISB |
| Parameter | DISB-386 | DISB-400 | DISB-411 | DISB-415 | DISB-466 | DISB-485 |
|---|---|---|---|---|---|---|
| Supported detectors | S11850 S14651 | G13913 | G11620 | G11476N-128LB | G11508 G11477 | G14714-1024DG |
| Supported Developer's kit | DISB w/cooling | Mini-DISB | DISB w/cooling |
Use horizontal scrolling to see more DISB versions!
DISB-101T
Electronics used for most of our spectrometers using CMOS detectors from Hamamatsu.

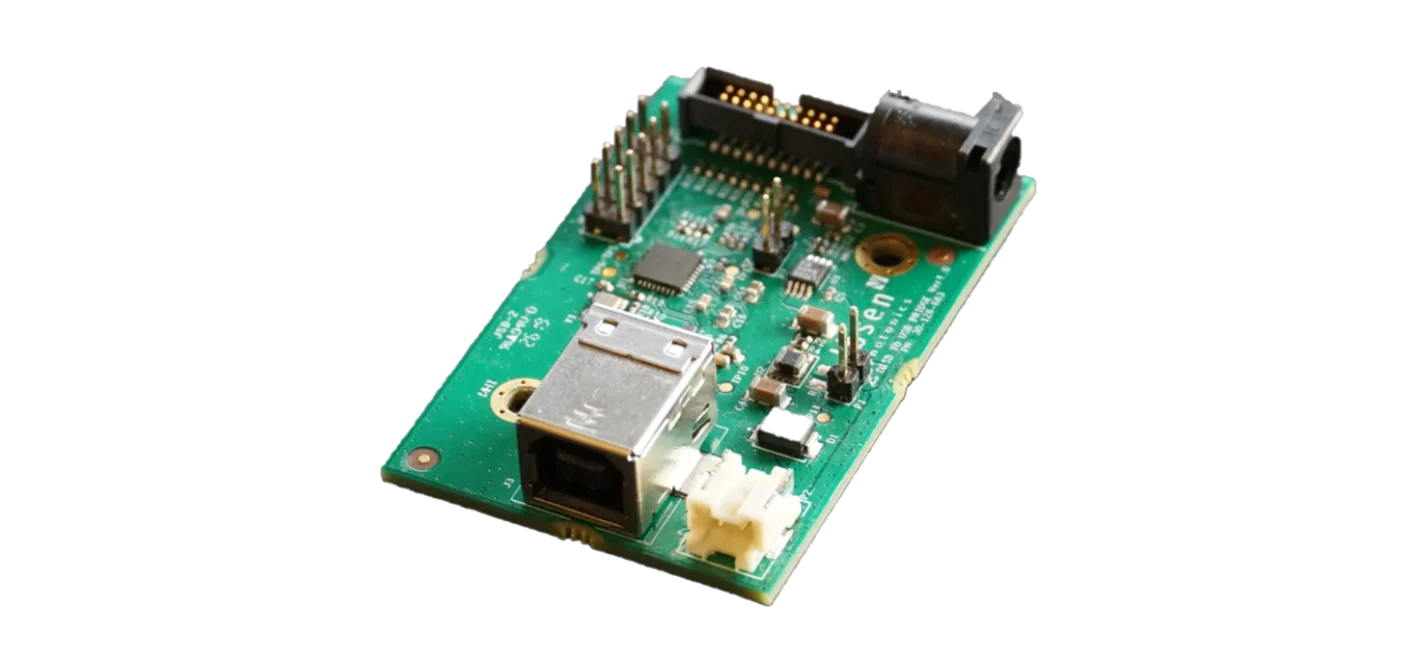

The interface is a Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-101T are listed in the table below.
| Electronics | DISB-101T |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate over SPI | 600 Hz (2048 px) 300 Hz (4096 px) |
| Frame rate over USB | 250 Hz (2048 px) 125 Hz (4096 px) |
| Supported detectors | S11639-01 CMOS S13496 CMOS |
| Power consumption (typ.) | 0.8 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-10 nano sec. |
| Output for lamp control | Yes |
| On-board calculations | Averaging |
| Region of interest | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Remote firmware upgrade | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |
DISB-105
Electronics used for the most compact CMOS detectors from Hamamatsu, used for our PEBBLE spectrometers.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-105 are listed in the table below.
| Electronics | DISB-105 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 4800 Hz |
| Supported detectors | S14739 |
| Power consumption (typ.) | 0.8 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-10 nano sec. |
| On-board calculations | Averaging |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

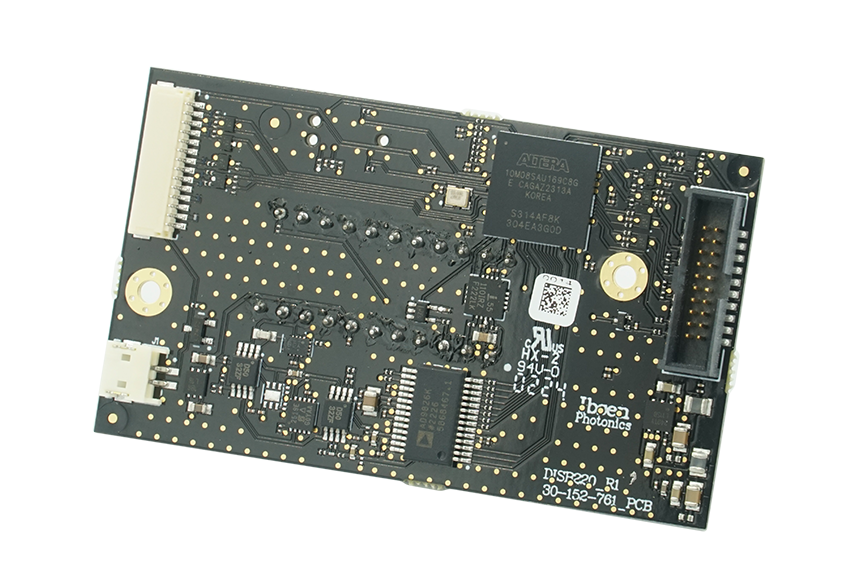

DISB-220
Electronics for our spectrometers using NMOS detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-220 are listed in the table below.
| Electronics | DISB-220 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 148 Hz |
| Supported detectors | S8380 S8381 |
| Power consumption (typ.) | 0.775 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-10 nano sec. |
| On-board calculations | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

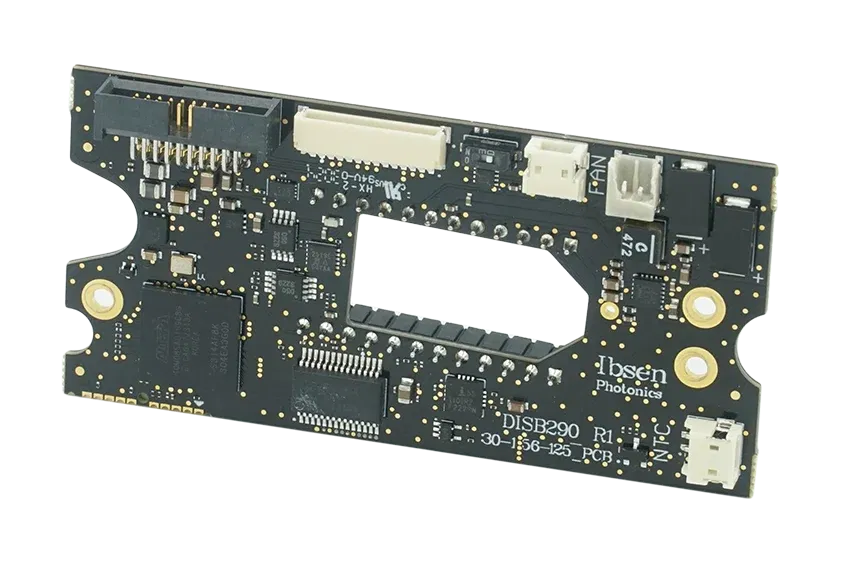

DISB-290
Electronics used for spectrometers using TE-cooled NMOS detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-290 are listed in the table below.
| Electronics | DISB-290 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 148 Hz |
| Supported detectors | S8382 S8383 |
| Power consumption (typ.) | 0.275 W |
| TEC power consumption (typ.) | 2 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-10 nano sec. |
| On-board calculations | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| TEC control | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |
DISB-315
Electronics used for spectrometers with low-noise non-cooled CCD detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of our DISB-315 are listed in the table below.
| Electronics | DISB-305/315 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate(SPI, 1024/2048 pixels) | 166/100 Hz |
| Supported detectors | S10420 BT-CCD |
| Power consumption (typ.) | 0.275 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Averaging |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

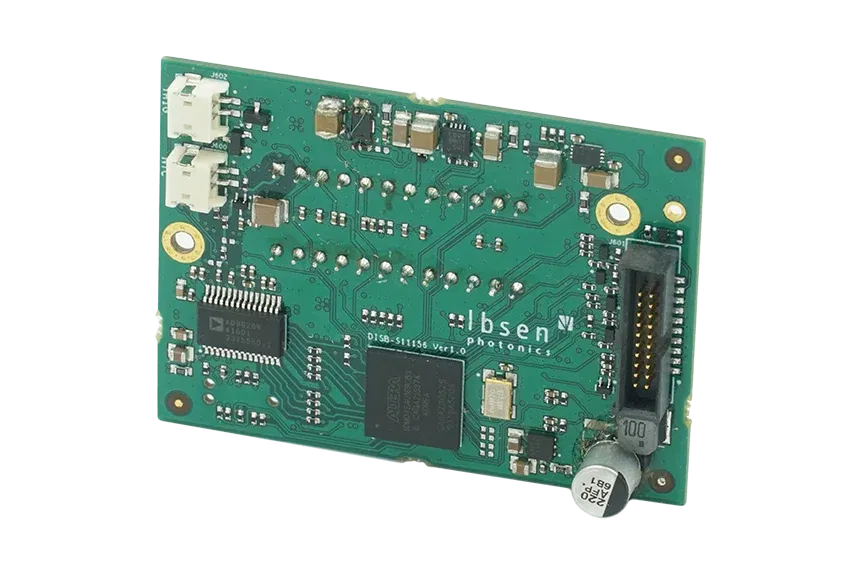

DISB-380
Electronics used for spectrometers using high-speed non-cooled CCD detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of our DISB-380 are listed in the table below.
| Electronics | DISB-380 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 2048 pixels) | 600 Hz |
| Supported detectors | S11156 BT-CCD |
| Power consumption (typ.) | 3.7 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-10 nano sec. |
| On-board calculations | No |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |
DISB-386
Electronics used for spectrometers with low-noise TE-cooled CCD detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of our DISB-386 are listed in the table below.
| Electronics | DISB-386 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 2048 pixels, S11850/S14651 detector) | 100/83 Hz |
| Supported detectors | S11850 BT-CCD S14651 BT-CCD |
| Power consumption (typ.) | 1.25 W |
| TEC power consumption (typ.) | 0.7 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Averaging |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| TEC control | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |
DISB-400
Electronics used for spectrometers with compact un-cooled InGaAs detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of our DISB-400 are listed in the table below.
| Electronics | DISB-400 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 3000 Hz |
| Supported detectors | G13913 |
| Power consumption (typ.) | 0.8 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Averaging |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

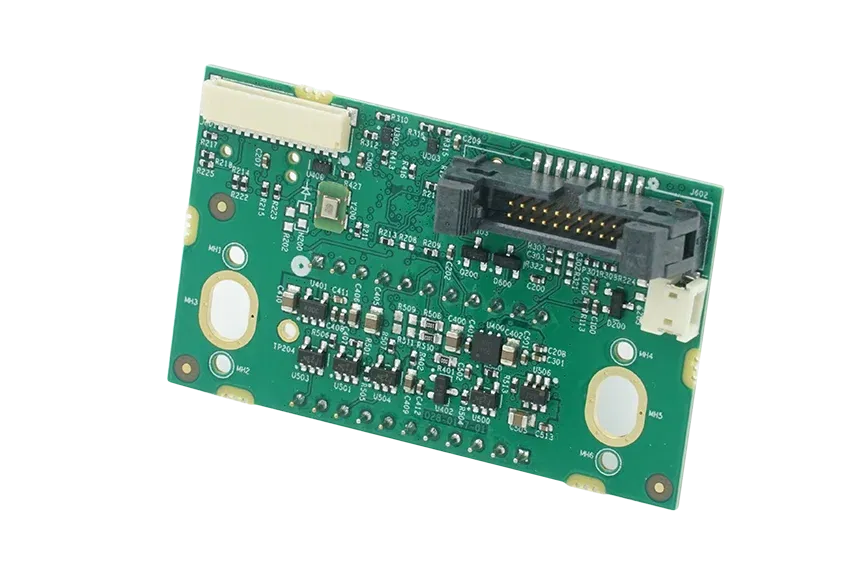

DISB-411
Electronics used for our compact spectrometers with un-cooled InGaAs detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-411 are listed in the table below.
| Electronics | DISB-411 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 4800 Hz |
| Supported detectors | G11620 |
| Power consumption (typ.) | 0.8 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

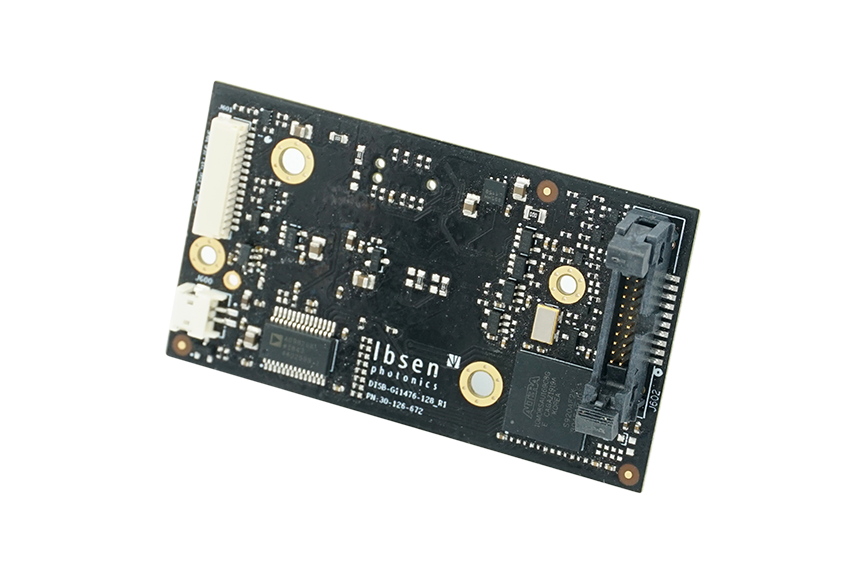

DISB-415
Electronics used for our compact XNIR spectrometers using un-cooled InGaAs detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-415 are listed in the table below.
| Electronics | DISB-415 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 128 pixels) | 9600 Hz |
| Supported detectors | G11476N-128LB |
| Power consumption (typ.) | 0.8 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

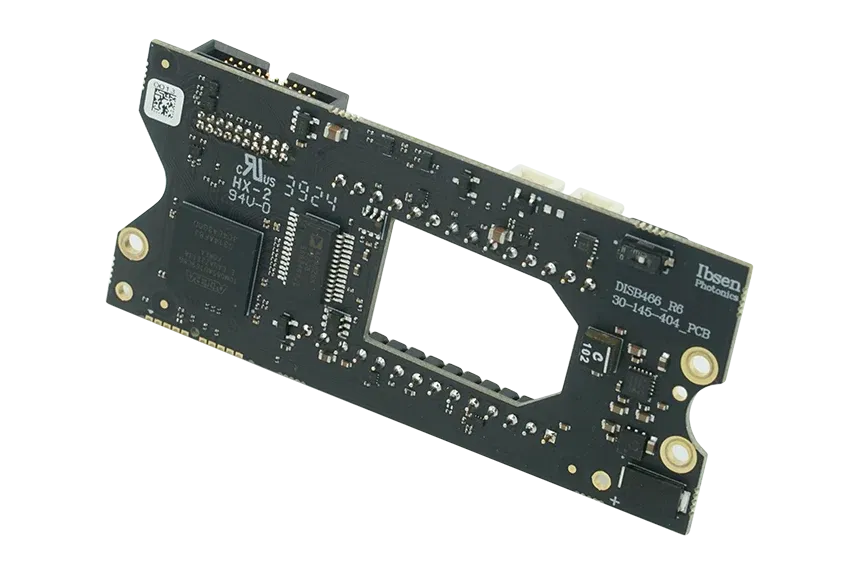

DISB-466
Electronics used for spectrometers with TE-cooled InGaAs detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-466 are listed in the table below.
| Electronics | DISB-466 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 256 pixels) | 3000 Hz |
| Supported detectors | G11508 InGaAs G11477 InGaAs |
| Power consumption (typ.) | 1.25 W |
| TEC power consumption (typ. S11508 / S11477) | 3.9 / 6.0 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Averaging |
| On-board storage of calibration coefficient | Yes |
| TEC control | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |

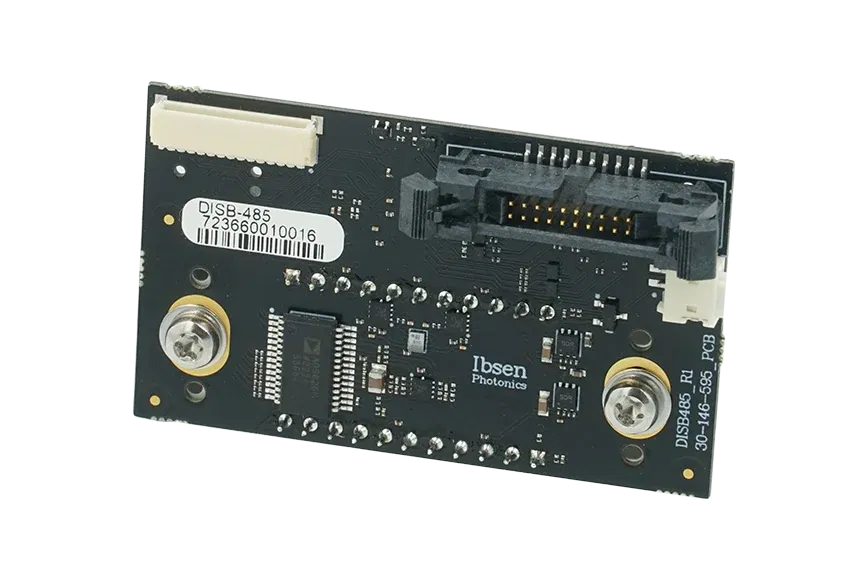

DISB-485
Electronics used for spectrometers with high-speed high-resolution InGaAs detectors from Hamamatsu.
The interface is Serial Peripheral Interface (SPI). By combining it with a DISB-USB Bridge board, you can interface over USB. Key features of the DISB-485 are listed in the table below.
| Electronics | DISB-485 |
|---|---|
| Main interface | SPI |
| Optional interface | USB (DISB-USB Bridge) |
| Frame rate (SPI, 1024 pixels) | 1500 Hz |
| Supported detectors | G14714-1024DG |
| Power consumption (typ.) | 1.4 W |
| Integration time control | Configurable integration time |
| External trigger | Configurable delay Jitter +/-20 nano sec. |
| On-board calculations | Yes |
| On-board storage of calibration coefficient | Yes |
| Temperature monitor | Yes |
| Evaluation Software (Windows) | DISB-USB Evaluation SW |
| Programming interface | Register R/W over SPI |
