DISB with cooling Developer’s Kit

DISB with cooling Developer’s Kit

The DISB with cooling Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

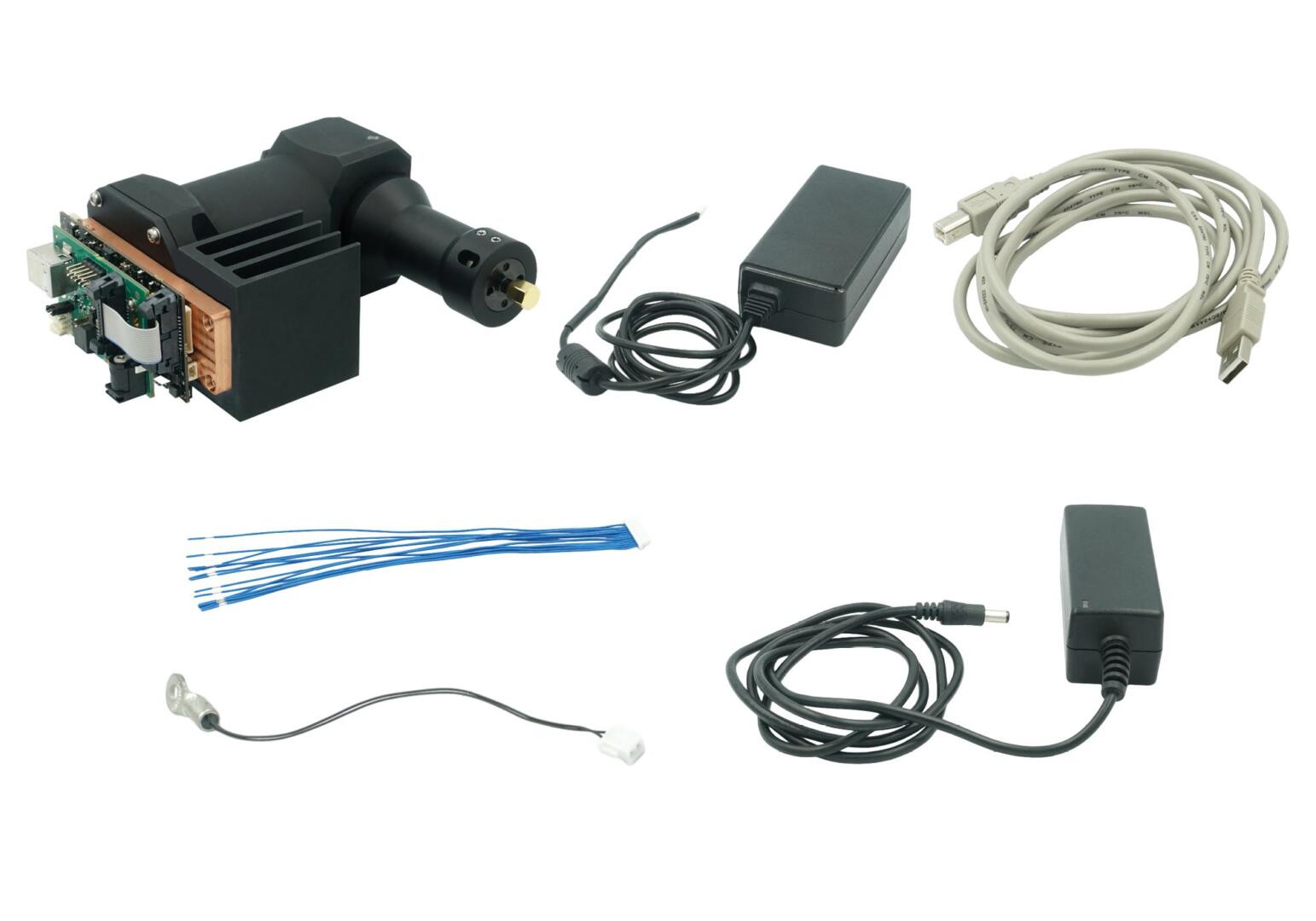

Package content

The DISB With Cooling Developer’s Kit contains the following items:

  • Spectrometer with DISB control electronics

  • Evaluation board with USB 2.0 interface

  • USB 2.0 cable

  • Compatible power supplies

  • Cable for external triggering, auxiliary signal control and GPIO channels

  • Thermistor for external temperature measurements

  • Download link for software and manuals

The DISB with cooling Developer’s Kit is illustrated with the EAGLE Raman HR 785 spectrometer and is suitable for multiple Ibsen spectrometers.

Hardware  and peripherals

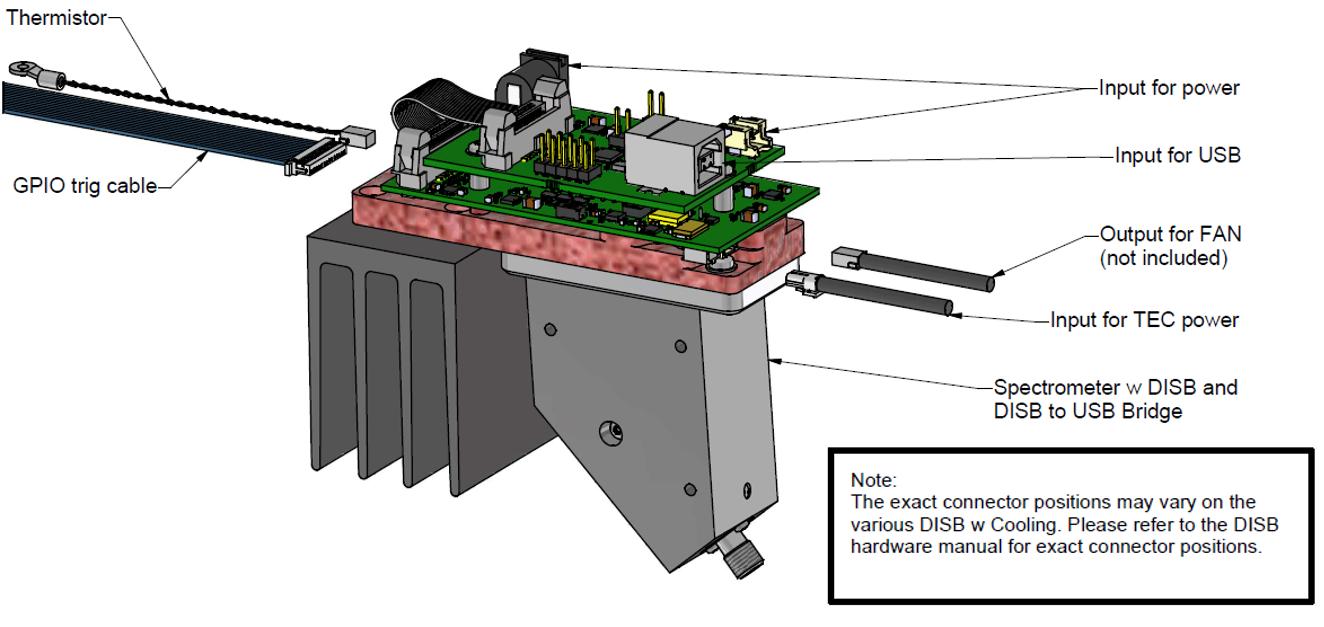

The DISB-USB electronics converts the SPI output from the DISB spectrometer electronics to USB, allowing spectrometer control and signal acquisition via a PC.
The included GPIO trig cable allows for easy hardware triggering, auxiliary signal access and controllable input-output pins. The thermistor enables frequent temperature readings, which can be used for dark signal referencing.

The DISB-USB electronics can be mounted on the spectrometer together with the DISB electronics or included on the side.

Evaluation software

When purchasing your spectrometer with the DISB With Cooling Developer’s Kit, a Windows-based Evaluation Software is included. The software enables the user to acquire spectra and control spectrometer settings via a simple graphical user-interface. The acquired data can be saved in text files or directly exported to Excel.

Software development kit

A Windows-based software development kit (SDK) for C++. C#, LabVIEW (x86), MATLAB and Python is also included, allowing users to integrate their spectrometer into a lab-based system while providing dynamic control of spectrometer settings and data acquisition.
