MIPI-USB developer kit

Home / Products / Spectrometer Electronics / MIPI-USB developer kit

Developer kit for high speed DISB electronics

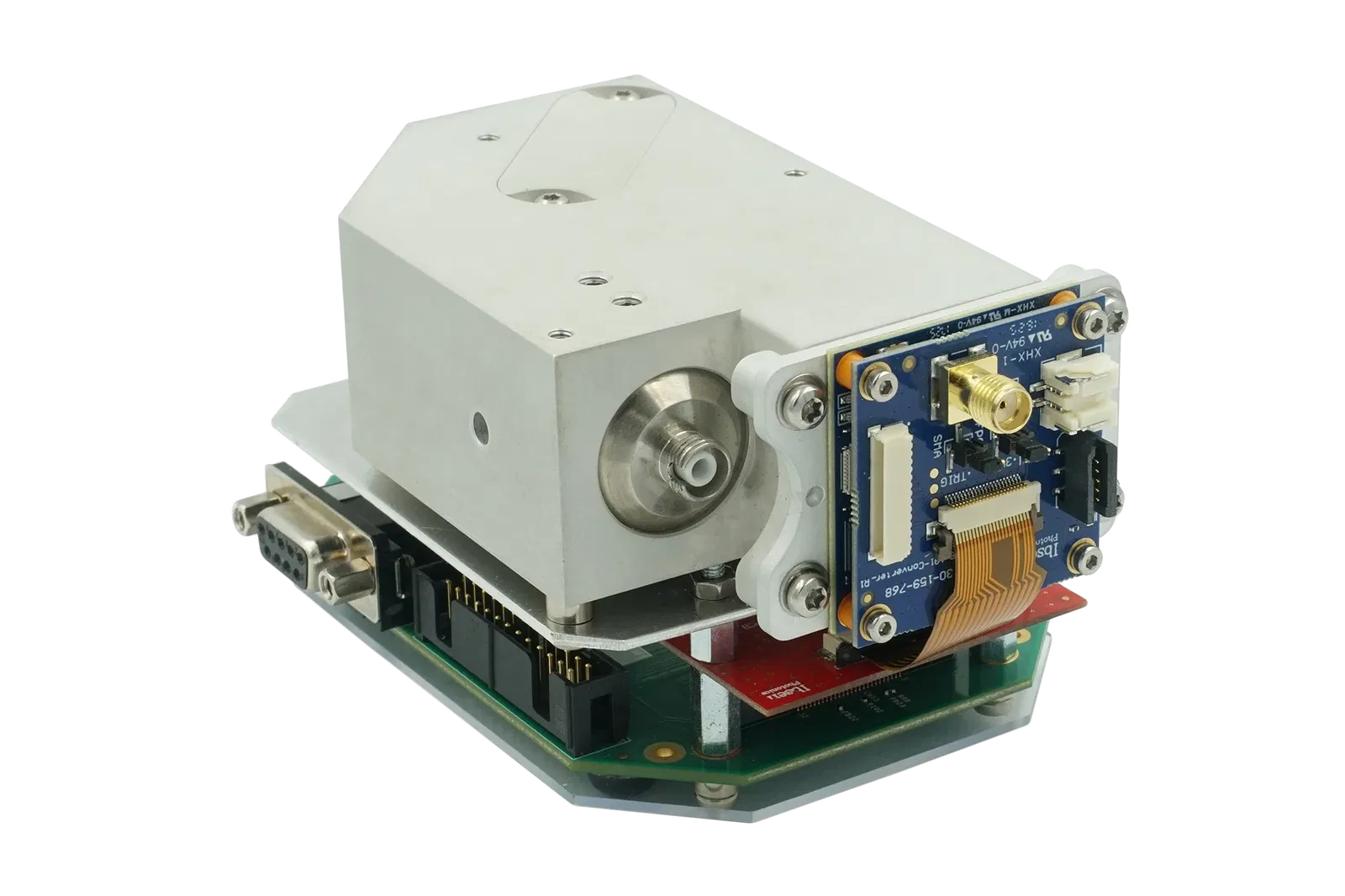

The MIPI-USB developer kit is all-in-one package providing electronincs, software and manuals for using Ibsen Photonics M-DISB electronics directly with a Windows PC.

The kit contains electronics for convertering the M-DISB MIPI output to USB and evaluation software (LabVIEW 2024) for convinient interface with Windows 10/11 PCs. Ibsen Photonics Evaluation software allows for control of all of M-DISB’s features and provide basic OCT functionalities such as FFT’s and B-scans. Data can also be saved and exported as either a binary format of .txt, for further data processing.

The MIPI-USB electronics is based on Infinion’s EZ-USB CX3 chipset, and allows for line-rates up to 61 kHz over USB3 with the M-DISB-191 electronics

Key benefits

  • Allows for use of M-DISB electronics with a Windows PC

  • Includes USB and externall trigger cables.

  • Get started testing spectrometer and electronics performance in minutes

  • Makes own electronics and software development faster and easier.

Key features

  • Support line-rates of 61 kHz (with M-DISB-191)

  • Support all M-DISB features with included Evaluation software

  • LabVIEW 2024 source files included

  • All necessary cables included (Ext. Trigger and USB superspeed)

  • Evaluation software supports basic OCT features such as FFT and B-scans

Specifications MIPI-USB developer kit

ParameterValueComment
Supported electronicsM-DISB191
Supported Operating systemsWindows 10 and 11
Included softwareIbsen Photonics MIPI-USB evaluation software (LabVIEW 32-bit)Source files included
Includes electronicsM-DISB-191 converter board
E-Con Cypress EZ-USB CX3 RDK
CablesUSB3 superspeed
Ext. trigger cable (SMA)
Transfer protocolUSB3 superspeedRequires USB3 capable of 500 mW power draw.
