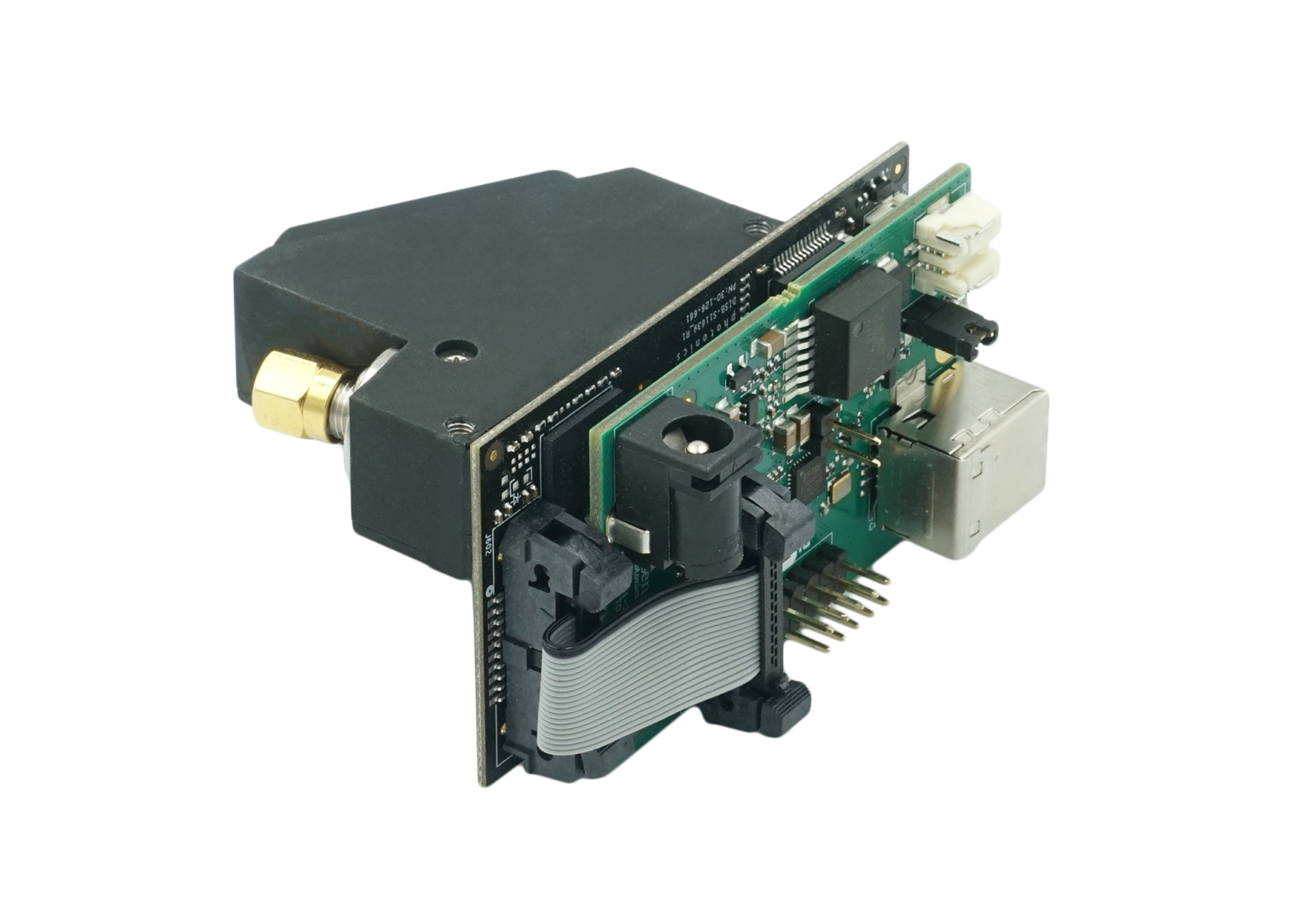

FREEDOM UV-VIS

Home / Products / OEM spectrometers / UV-VIS

Compact and cost-efficient OEM spectrometer modules for the 190 – 850 nm range

The FREEDOM spectrometers offer a compact and cost-efficient spectrometer module for OEM manufacturers of analytical instruments that do not want to sacrifice performance and robustness for compactness.

FREEDOM UV-VIS is built on a new transmission grating developed by Ibsen Photonics that provides high diffraction efficiency for both polarizations from 190-850 nm.

Furthermore, the FREEDOM UV-VIS spectrometers support many different detector systems which enables you to choose the best detector option for your specific application. FREEDOM even allows you to re-use already developed electronics and software for your favorite detector type.

Key benefits

  • Improved UV and VIS sensitivity

  • Ideal for compact and portable instrument integration

  • Enables impressive dynamic range absorption measurements in a compact form factor

  • Tailor-made performance with flexible configuration options

Key features

  • 190 nm to 850 nm wavelength range

  • Numerical aperture of 0.15

  • Configurable resolution from 1.3 nm to 10.9 nm

  • High efficiency

  • Low polarization dependence

  • Footprint of 54 mm x 48 mm x 16 mm

  • Broadband spectrometer
  • Broadband spectrometer
  • Broadband spectrometer
  • Broadband spectrometer
  • Broadband spectrometer

Specifications

ParameterUnitFSB-101FSB-315FSB-380
Wavelength rangenm190 - 850190 - 850190 - 850
Best resolution
(typical value, 12.5 μm slit)		nm1.31.31.3
Slit width optionsμm12.5, 35, 50, 70, 12512.5, 35, 50, 70, 12512.5, 35, 50, 70, 125
Slit heightμm250750750
Numerical aperture0.150.150.15
Optical inputSMASMASMA
DetectorS11639N-01S10420-1106S11156-2048-02
Number of pixels204820482048
ElectronicsDISB-101TDISB-315TDISB-380
Electrical interfaceSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm54 x 48 x 1654 x 48 x 1654 x 48 x 16
Temperature induced shiftnm / o C< 0.02< 0.02< 0.02
Operating temperature rangeo C0 to 500 to 500 to 50
Storage temperature rangeo C-40 to 65-40 to 65-40 to 65

Developer’s Kit

The FREEDOM UV-VIS is offered with a Developer’s kit for a plug and play experience.

The Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

Benefits of transmission grating based spectrometers

The FREEDOM is a series of versatile spectrometers. This is obtained by a unique mirror-grating-mirror design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput, together with high resolution and a broad wavelength range.
