I-MON 256 High Speed

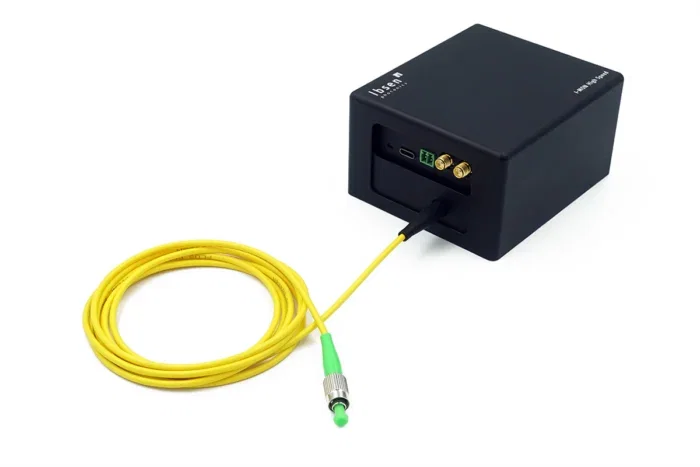

I-MON 256 High Speed Interrogation monitor (1525-1570 nm)

The I-MON 256 High Speed provides full-spectrum monitoring of FBG sensors at line scan rates up to 35 kHz. The high spectrometer resolution combined with a broad wavelength range provides high-resolution interrogation monitors, enables the measurement of a large number of FBG sensors.

A GigE interface and a data acquisition software allow plug-and-play operation for integrators of FBG sensing systems.

Applications

Stand-alone Interrogation Monitor and/or OEM Interrogation Monitor Modules:

  • Vibration analysis
  • Temperature measurements
  • Pressure monitoring
  • Strain measurements
Out of stock
I-MON High Speed
I-MON High Speed
Parameter UnitI-MON 256 HS
Maximum number of FBG sensors37
Minimum FBG spacingpm / GHz 1200 / 150
Wavelength range nm 1525 - 1570
Wavelength fit resolution (-20 dBm input power) pm < 0.5
Repeatability (over any pol. state) pm 3 (5 max)
Wavelength linearity pm 5 (typ)
Wavelength drift pm/deg. C1 (3 max) (*)
Dynamic range dB 30
Input optical power range dBm-75 to - 25
Measurement frequency kHz
35 max
Electrical interface GigE
Power supply 5 VDC, 3A
Operating temperature deg C 0 to 50
Size (LxWxD) mm 124x94x59

(*) Note that by applying temperature control or temperature correction the wavelength accuracy over the entire wavelength range can be improved.

A detailed Product Specification and User’s Manual are available upon request.

€9.900,00

Out of stock

Out of stock
