FREEDOM spectrometers

Compact and high-performance OEM spectrometer modules

The FREEDOM family of spectrometers offers compact spectrometer modules for OEM manufacturers of spectral instruments who refuse to compromise on performance and robustness for the sake of compactness. Our standard FREEDOM spectrometers provide the most compact form factor, while the FREEDOM HR/C series delivers high resolution. Various wavelength bands, ranging from UV to VIS-NIR, are supported across our different models.

If you require a broader spectral range, our broadband FREEDOM UV-VIS and UV-NIR spectrometers cover 190–850 nm and 190–1100 nm, respectively. The FREEDOM spectrometers can be configured with different slits and detector options to precisely match your application’s requirements. The high performance of our FREEDOM spectrometers is made possible by our in-house transmission gratings, featuring the world’s best diffraction efficiency.

Key benefits

  • Ideal for compact and portable instrument integration

  • Easy integration into existing handheld and other low weight devices

  • Tailor-made performance with flexible configuration options

If the specifications of our standard FREEDOM configurations do not match your requirements, Ibsen can customize a FREEDOM spectrometer to meet your exact needs.

Visible light spectrometers

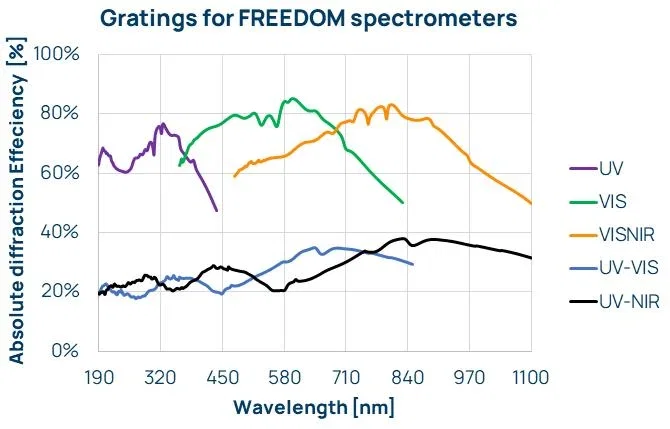

The world’s best broadband gratings

The high sensitivity of our FREEDOM spectrometers is made possible by our unique in-house manufactured transmission gratings.

Our gratings provide unparalleled high broadband efficiency, enabled by optimized groove profiles, a thin optical path, and a high refractive index contrast. The inherent nature of fused silica ensures our gratings are thermally stable, while working in transmission providing angle insensitivity and vibrational stability.

We design our FREEDOM spectrometers to perfectly match and supplement the performance of our gratings, but we also supply gratings for use in your own spectrometer design.

Visible light spectrometers

Our FREEDOM spectrometers

Compact FREEDOM

ParameterUnitFREEDOM UVFREEDOM VISFREEDOM VIS-NIR
Wavelength rangenm190 - 435380 - 830475 - 1100
Best resolution
(typical values)		nm0.71.31.7
Numerical aperture0.160.160.16
Optical input optionsSMA
SMA
SMA
Detector options
(Hamamatsu)		S11639N-01S10420-1006
S11156-2048-02		S11639N-01
S10420-1006
S11156-2048-02		S11639N-01
S10420-1006
S11156-2048-02
Electrical interfaceSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm25 x 48 x 1625 x 48 x 1625 x 48 x 16



FREEDOM High Resolution

ParameterUnitFREEDOM HR-DUVFREEDOM HR/C-UVFREEDOM HR/C-VISFREEDOM HR/C-VISNIR
Wavelength rangenm178 - 409190 - 435360 - 830475 - 1100
Resolution (FREEDOM C)nm-0.150.30.4
Resolution (FREEDOM HR)nm0.30.20.40.6
Numerical aperture0.110.110.110.11
Optical inputSMASMA
SMASMA
Detector options
for FREEDOM C
(Hamamatsu)		-
S13496S13496S13496
Detector options
for FREEDOM HR
(Hamamatsu)		S11156-2048-02S11639N-01
S10420-1106
S11156-2048-02		S11639N-01
S10420-1106
S11156-2048-02		S11639N-01
S10420-1106
S11156-2048-02
Electrical interfaceSPI or USBSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm61 x 65 x 1961 x 65 x 1961 x 65 x 1961 x 65 x 19
Valves for inert gas purgingYesNoNoNo



Broadband FREEDOM

ParameterUnitFREEDOM UV-VISFREEDOM UV-NIR
Wavelength rangenm190 - 850190 - 1100
Best resolution
(Typical values)1)		nm1.31.8
Numerical aperture0.150.15
Optical inputSMASMA
Detector options
(Hamamatsu)		S11639N-01
S10420-1106
S11156-2048-02		S11639N-01
S10420-1106
S11156-2048-02
Electrical interfaceSPI or USBSPI or USB
Dimensionsmm x mm x mm54 x 48 x 1654 x 48 x 16



Ibsen as your spectrometer manufacturer

At Ibsen, we understand that volume manufacturing of application-specific spectrometers is a completely different task than building a single scientific instrument. We are an ISO 9001 and 13485 certified manufacturer with decades of experience in volume manufacturing of OEM spectrometers.

Our emphasis is on the high and consistent quality of our products, ensured through our proven, robust designs and 100% outgoing inspection. Our low unit-to-unit variation can help you achieve a lean manufacturing process and deliver products with a consistently high quality to your customers.

Our spectrometer designs have undergone environmental qualification to ensure proper operation within specified thermal, humidity, vibrational, and drop test conditions.

We have established long-term relationships with a range of qualified sub-suppliers, ensuring you a stable supply chain. Furthermore, we offer our OEM customers flexible supply options, typically based on frame order contracts or Kanban agreements.

All in all, Ibsen Photonics is a well-established spectrometer supplier that enables you to focus on your core business.

Advantages working with Ibsen:

  • Specialists in volume manufacturing

  • ISO 9001 and 13485 certified with decades of experience

  • High and consistent quality assurance

  • Low unit-to-unit variation for consistent quality

  • Environmentally qualified spectrometer designs

  • Stable supply chain with flexible supply options

  • Enabling you to focus on your core business
