High Speed DISB electronics

The M-DISB-191 is a high speed electronics board designed around the MIPI (Mobile Industry Processor Interface) communication protocol and the Hamamatsu S17122 linear CMOS detector. The M-DISB-191 offers a feature rich FPGA based platform that allows for full control of the 2048 pixel S17122 detector with line rates up to 61 kHz (for 2048 pixels) and additional functionality including on-board wavelength calibration coefficients, configurable well depth and HSYNC/VSYNC external triggering, making it an ideal choice for applications such Optical Coherence Tomography (OCT).

Key benefits

  • High Speed Spectrometer electronics

  • Ultra compact size

  • Integration with Ibsen Photonics OCT spectrometers

  • OEM integration-friendly design MIPI CSI-2 protocol

  • Optional converter board for connectivity with Raspberry Pi camera cable

Key features

  • Line-rates of 61 kHz with Hamamatsu S17122 (2048 pixel readout)

  • Support of Region-of-interest (ROI)

  • On-board wavelength calibration coefficients

  • Form-factor of 36 x 36 mm^2

  • External triggers for HSYNC/VSYNC

  • 4 levels for configurable well depth

  • Single power supply input of 3.3V

  • Test pattern generator for easy test and debugging

M-DISB-191 board

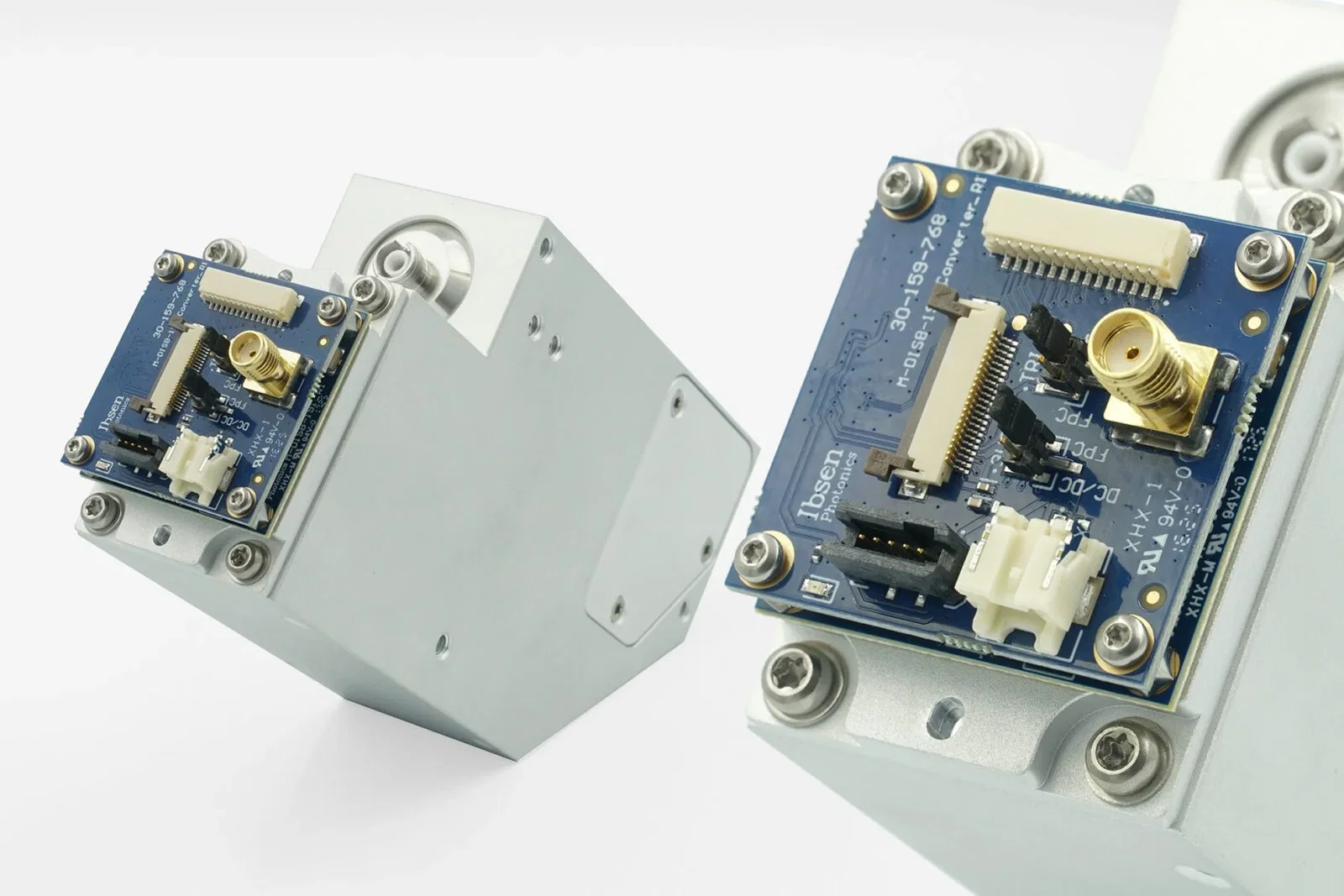

M-DISB-191 converter board

Specifications M-DISB-191

ParameterValueUnitComment
Support detector
Hamamatsu S17122 Linear CMOS detector
No. pixels2048pixels
Pixel size7 x 200µm
Line-rate61kHz101 kHz with pixel binning enabled
Pixels binningYes (pairs)Binned to 1024 pixels with 14 µm pitch
Transfer protocolMIPI CSI-22 Lanes
ADC resolution12bit
ADC offset0-1023ADC Counts (12bit)Set individually for the two readout ports (i.e. pixels 1-1024 and 1025-2048)
No. of trigger modes31. Internal trigger
2. External trigger with exposure time set by trigger pulse width.
3. External trigger with exposure time set by register value.
Min. exposure time2.225µsAdjustable in 25 ns increments
Min. line period16.25µsAdjustable in 25 ns increments
Well depth27, 44, 240 or 380kéAdjustable in four levels via register settings
Voltage supply3.3V
Current262 mATypical value
Power draw863mWTypical value
Dimensions36 x 36mm^2

Specifications M-DISB-191 Converter board

ParameterValueUnitComment
Voltage supply4.5 - 28 VJumper can be used for 3.3V input
Power Connector2 pin PA connector (JST SM02B-PASS-TB)
Trigger portSMA (LINX SMA001-SMD-G-T)
GPIO port14 pin Header (JST SM14B-SRSS-TB)
MIPI port22 pin FPC/FFC (FH12-22S-0.5)Compatible with 22 pin Raspberry Pi Camera cable
Dimensions36 x 36mm^2
