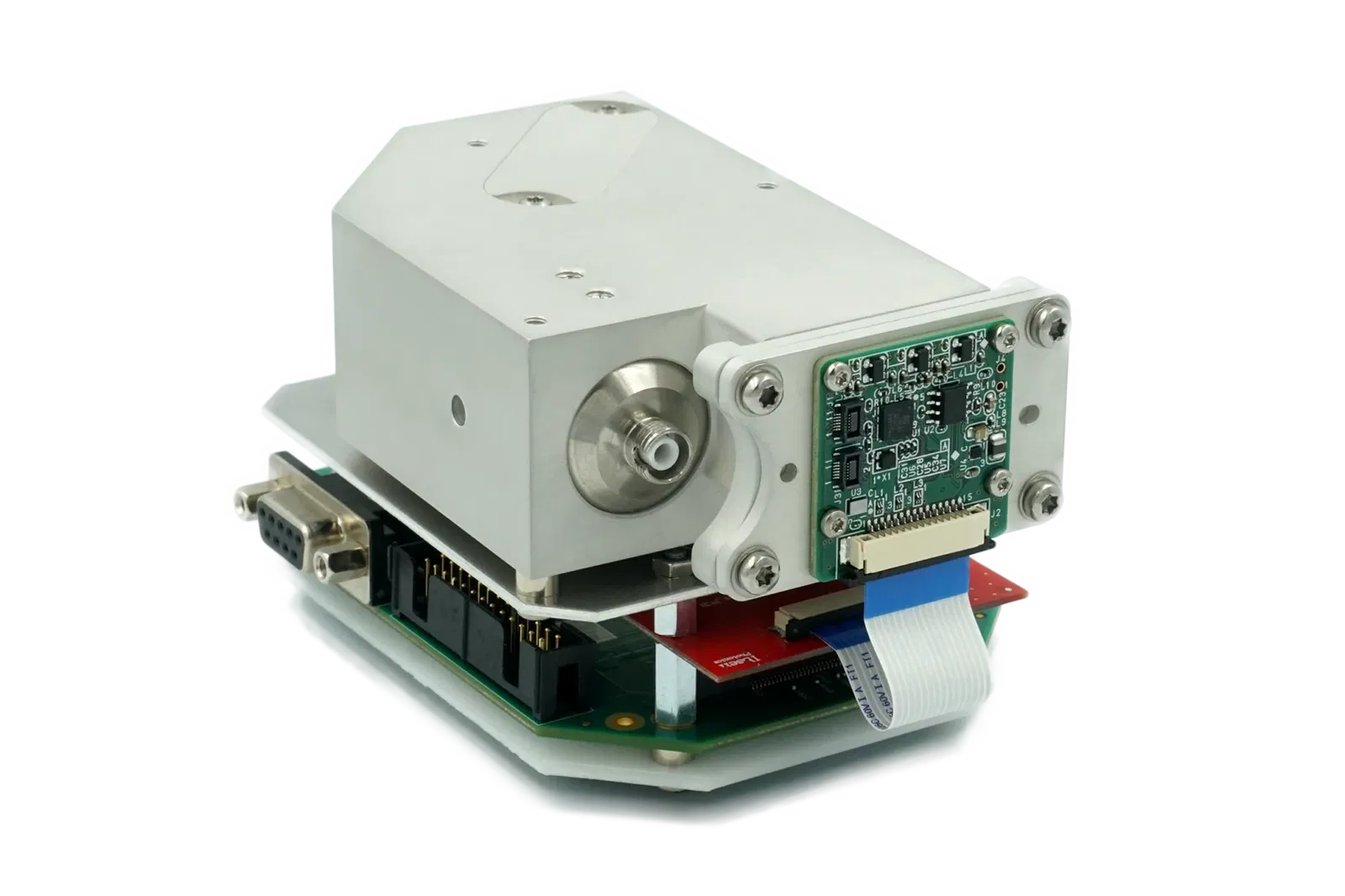

Compact EAGLE C-OCT-S Developer’s Kit

Enables Plug-and-Play Operation with the EAGLE C-OCT-S

The EAGLE C-OCT-S Developer’s Kit will demonstrate the performance of the EAGLE C-OCT-S OEM spectrometer in an easy manner without the need for hardware interfacing and tedious programming from the customer’s side. It enables the customer to use the EAGLE C-OCT-S OEM spectrometer using a PC as monitor and thereby test the basic performance.

The spectrum graph screen of the Evaluation Software illustrates the pixel response from the image sensor of the EAGLE C-OCT-S OEM spectrometer, i.e., the interference signal from an OCT measurement.

The software includes a range of control buttons e.g. for configuration, displaying FFT and data logging.

Package content

The EAGLE C-OCT-S Developer’s Kit contains the following items:

  • EAGLE C-OCT-S OEM spectrometer

  • Evaluation board with USB3 interface

  • USB3 cable

  • Cable for external triggering

  • Quick guide with a download link for software and manuals

Parameter EAGLE C-OCT-S
with developer's kit
Comments
Optical entranceFC/UPC adapter780HP single mode optical fiber
Wavelength range810 - 870 nmOther ranges available upon request
Resolution
0.06 nm
Numerical aperture
0.13
CameraHamamatsu C16821
MIPI D-PHY/CSI-2 interface 10-bit
Raw Developer kit with USB3
Number of pixels1024 x 1 pixels
Pixel size7 μm x 200 μm
CameraHamamatsu S15611
Frame rate34 kHz
Operating temperature range0 to +50 °CNon-condensing
Storage temperature range-20 to +70 °C
Wavelength shift with temperature0.002 nm/°C
Dimensions61 mm x 110mm x 33 mm
Weight336 grams

Download Product Sheets:

Compact EAGLE OCT 810 – 870 nm
