High Power Gratings for Directed Energy applications

By Kristian Buchwald, Ibsen Photonics

Introduction

In the rapidly evolving landscape of photonics, the demand for high power laser systems – particularly for directed energy weapon systems and wireless power transfer – has never been greater. These applications push optical components to their limits, requiring materials and manufacturing processes that can withstand extreme conditions without degradation. Among the most critical components in such systems are diffraction gratings, which must exhibit exceptional Laser Induced Damage Threshold (LIDT) levels to ensure reliability and performance under high power, continuous wave (CW) operation.

This article explores the material science, coating technologies, and process optimizations that enable the production of gratings capable of handling multi-megawatt per square centimeter power densities, with focus on 1 μm CW lasers widely used in both Directed Energy Weapons (DEW) and industrial applications.

Meet the author

Kristian Buchwald (M.Sc. in Electrical Engineering from the Technical University of Denmark) is VP of Gratings at Ibsen Photonics – a role he has held for over 30 years. He is happiest when engaging with customers deploying our fused silica transmission gratings in an ever-growing range of applications including telecom, datacom, lasers, spectroscopy, fiber sensing, quantum, space and defense. You will meet him at various trade shows through the year – he is known for saying “I love the smell of exhibition opening day!”.

High-Power Laser Gratings for Directed Energy

The Critical Role of Gratings in High Power Systems

Diffraction gratings are essential for beam steering, spectral control, and pulse compression in high power laser systems. In directed energy weapons, gratings enable spectral beam combining (SBC) for precise targeting and high energy delivery, while in wireless power transfer, they facilitate efficient energy transmission over distance. However, the intense laser fluxes in these applications can induce thermal stress, absorption losses, and catastrophic optical damage if the gratings are not engineered for extreme durability.

The primary metric for a grating’s suitability in such environments is its LIDT – the maximum power density a component can endure before failing. For high-power applications, LIDT values in the MW/cm² range are often required, alongside ultra-low absorption and minimal thermal distortion.

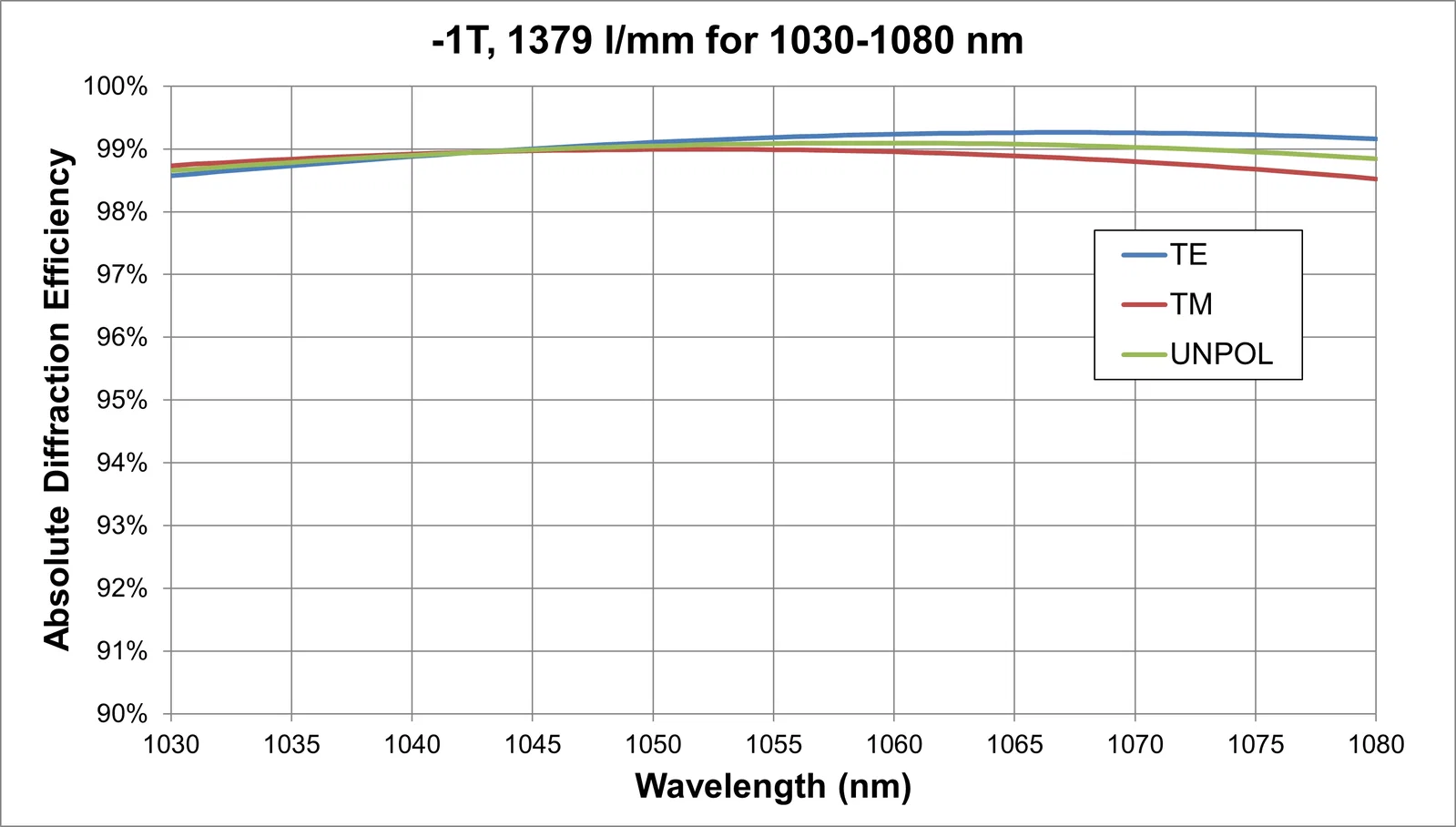

Graph of diffraction efficiency vs. wavelength for Ibsen Photonics’ high-performance gratings

Material Selection: The Foundation of High LIDT

Key Materials and Their Bandgaps

Material       Bandgap (eV)

SiO₂                                    ~9

HfO₂                                   ~5.5

Ta₂O₅                                  ~4

Nb₂O₅                                  ~1

Fused silica (SiO₂) remains the gold standard for high power gratings due to its exceptionally wide bandgap (~9 eV), which translates to low absorption and high damage resistance at 1 um wavelengths. However, materials with higher refractive indices are required for anti-reflection coatings and in some cases for the grating structure itself. Hafnium oxide (HfO₂) and tantalum pentoxide (Ta₂O₅) are preferred high refractive index materials for achieving enhanced performance while maintaining high LIDT.

Coating Processes: Density, Stress, and Absorption

The coating process is just as critical as the material itself. High power gratings demand coatings with:

  • Ultra-low absorption (< 10 ppm): Even trace absorption can lead to localized heating, thermal lensing, and eventually failure under high power CW operation.
  • High density: Dense coatings (e.g., obtained with Ion Beam Sputtering (IBS) or magnetron sputtering) exhibit fewer defects and voids, which are common initiation sites for laser damage.
  • Low stress: High internal stress in coatings can lead to delamination, cracking, or deformation under thermal load. Stress mitigation is achieved through process optimization and post-deposition annealing.
Process Density Absorption StressLIDT Suitability
Ion Beam SputteringHigh <10 ppmLowExcellent
Magnetron Sputtering High<10 ppmLowExcellent
E-beam Evaporation Medium>10 ppmHighModerate
Thermal Evaporation Low >50 ppmHighPoor

IBS and magnetron sputtering are the preferred methods for high LIDT gratings due to their ability to produce dense, low stress, and low absorption films. These processes allow for precise control over stoichiometry and microstructure, which are critical for minimizing defects that could act as damage initiation sites.

Substrate Quality: The Unsung Hero

Even the best coatings will underperform if the substrate is not pristine. For high-power gratings the following charactestics have great importance:

  • Substrate material: Fused silica is the most common and highly suitable substrate material due to its high bandgap.
  • Surface quality: Substrates must be polished to sub-nanometer roughness to prevent scattering and absorption losses.
  • Defect-free: Inclusions, scratches, or subsurface damage can dramatically reduce LIDT by creating hotspots under illumination.

Ibsen Photonics’ Approach: Pushing the Boundaries

At Ibsen Photonics, we have leveraged decades of expertise in diffraction gratings and optical coatings to develop products that meet the stringent demands of directed energy and wireless power transfer applications. Through material selection, process optimization, and rigorous testing, we have achieved:

  • LIDT of >3 MW/cm² at 1 μm CW wavelength
  • Absorption &amp;#60; 3 ppm
  • Temperature rise &amp;#60; 3°C under 1 kW illumination at 100 kW/cm²
  • No measurable wavefront distortion under 100 kW/cm2 power load

How We Achieve This

  1. Material Synergy: Combing the use of high-bandgap materials with optimized multilayer and AR coating designs to balance optical performance and durability.
  2. Substrate Perfection: Utilizing class 1 clean, ultra-low roughness fused silica substrates as the base substrate
  3. Advanced Coating Processes: Utilizing IBS and magnetron sputtering with fine-tuned deposition parameters, annealing cycles and environmental controls to deposit dense, low-stress, and ultra-low absorption films,
