PEBBLE VIS-NIR

Home / Products / OEM spectrometers / VIS-NIR

Ultra-compact and cost-efficient OEM spectrometer modules for the visible to near-infrared range

The PEBBLE VIS-NIR spectrometers offer a cost-efficient mini spectrometer module for OEM manufacturers of analytical instruments that do not want to sacrifice performance and robustness for compactness.

PEBBLE VIS-NIR is based on the same proven diffraction grating technology used in all other Ibsen spectrometers. This ensures that PEBBLE can be manufactured in high quantities with very small unit-to-unit performance variation.

This type of diode array spectrometer provides many benefits when used for absorption or fluorescence spectroscopy compared to optical-based filter instruments. In particular, the fluorescence spectrometer is less bulky and more inexpensive than the combination of several emission filters. The compact spectrometer is also easier to use and provides the full spectrum.

The miniature PEBBLE VIS-NIR spectrometer covers a wavelength range of 500 – 1100 nm and offers a resolution of 6.7 nm. It utilizes a fast S14739 CMOS detector from Hamamatsu.

If the specifications of our standard PEBBLE configurations do not match your requirements, Ibsen can customize an OEM spectrometer to meet your exact needs.

Key features

  • 500 nm to 1100 nm wavelength range

  • Numerical aperture of 0.2

  • Resolution: 6.7 nm (typical)

  • Fast and very sensitive CMOS detector array with 256 pixels

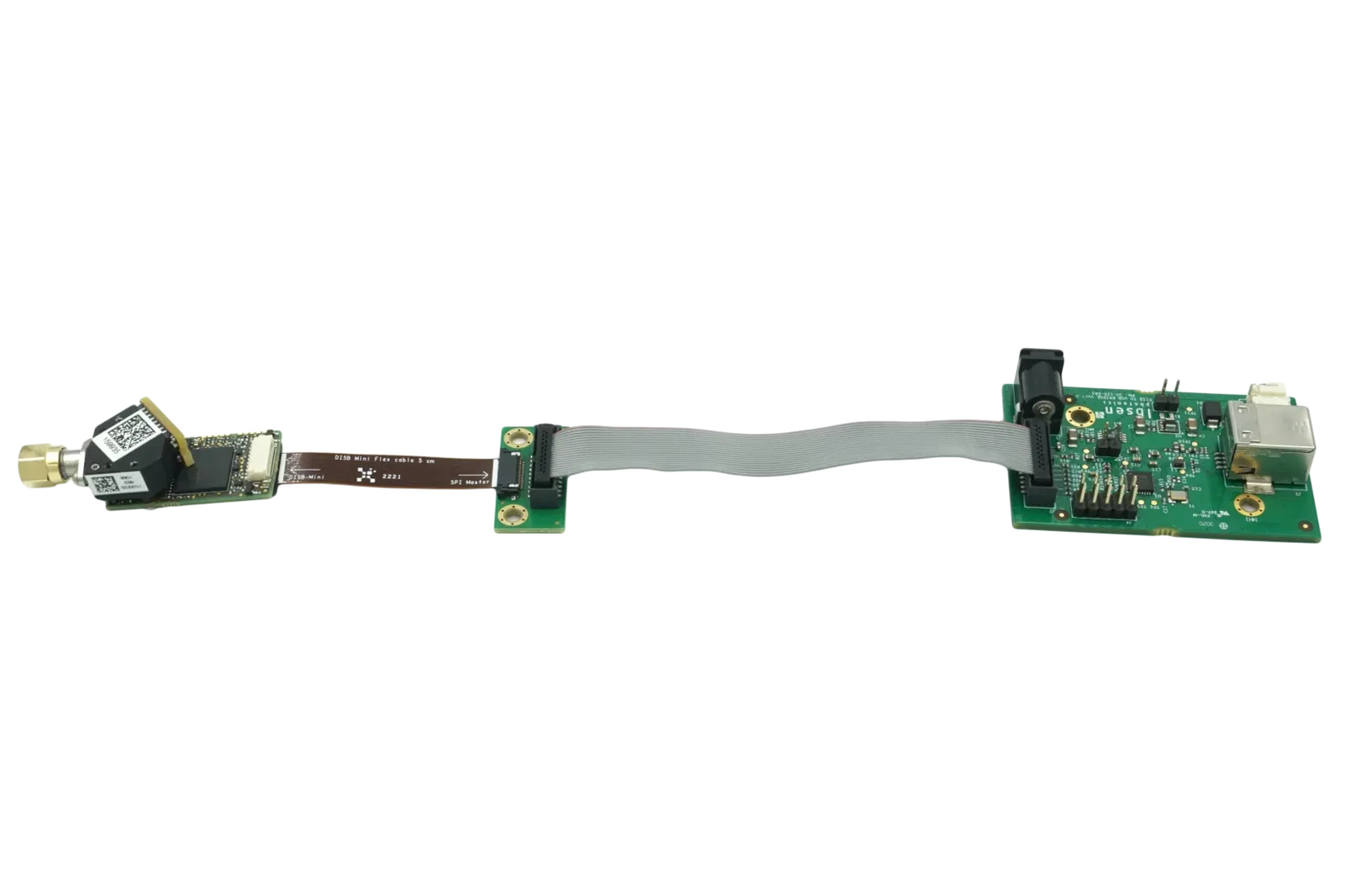

  • Electronics interface: small flex-connector

  • Optical input options: free space or SMA

  • Optional order sorting filter

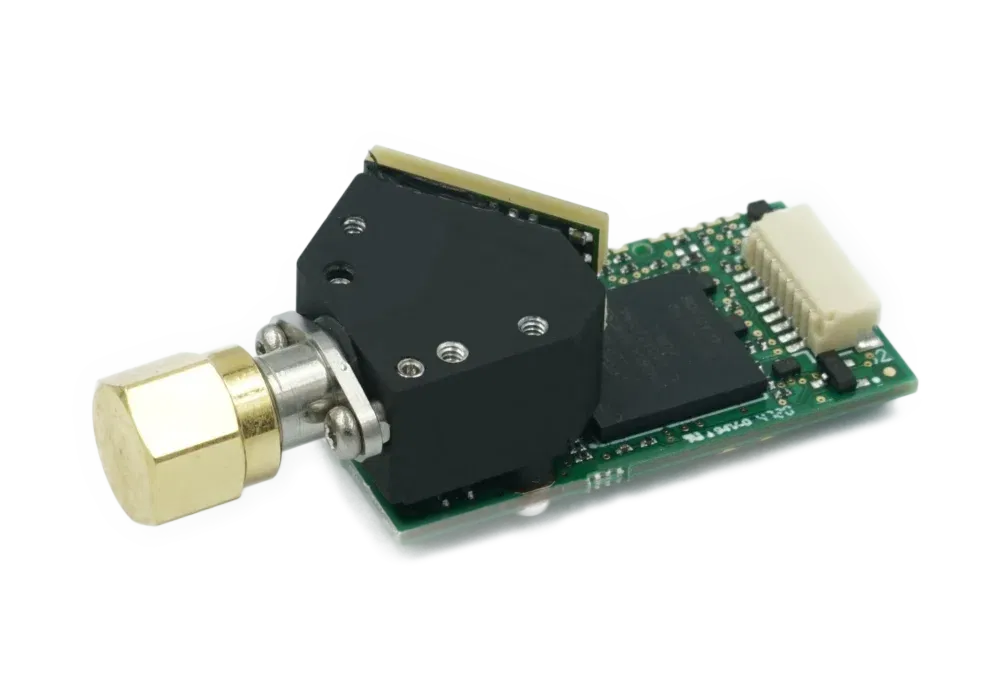

  • Compact footprint of 20 mm x 15 mm x 8 mm

  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer
  • Compact spectrometer

Specifications

ParameterUnitPBT-105
Wavelength rangenm500 - 1100
Best resolution
(typical value, 12.5 μm slit) 		nm6.7
Slit width optionsμm12.5, 35
Slit heightμm250
Numerical aperture0.22
Optical input optionsfree space or SMA
DetectorHamamatsu S14739
Number of pixels256
Electrical interfaceSPI or USB 2.0
Dimensionsmm x mm x mm20 x 15 x 8
Temperature induced shiftnm / o C< 0.02
Operating temperature rangeo C0 to 50
Storage temperature rangeo C-40 to 65
