EAGLE Raman-S

Home / Products / OEM Spectrometers / Raman

High throughput and high resolution

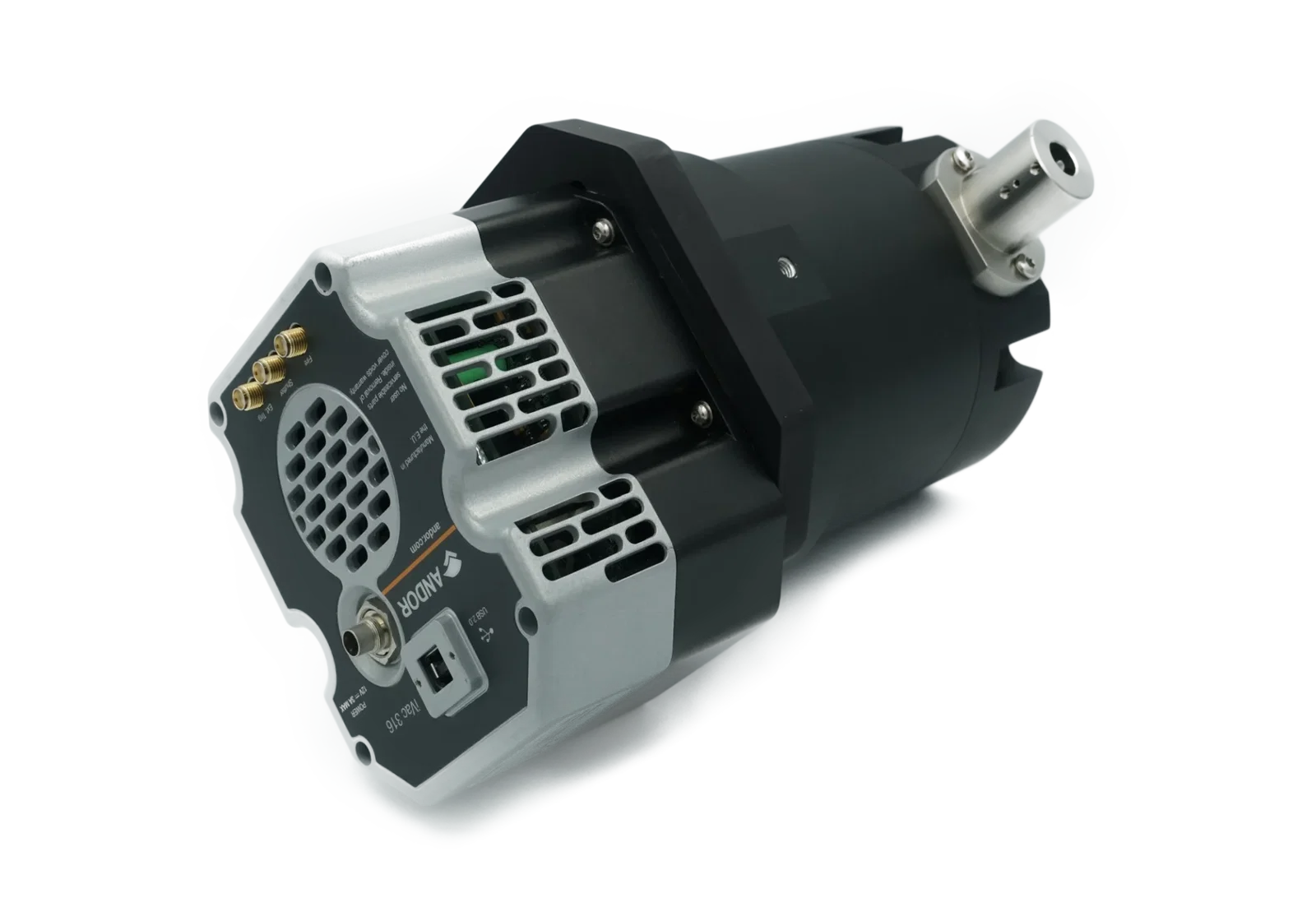

The EAGLE Raman-S is a robust, athermal, industrial grade, diode array-based spectrometer especially well-suited for Raman spectroscopy.

Key benefits

  • High throughput

  • Robust and athermal design

  • Error-free imaging of linear fiber array in the image plane

Key features

  • 800 nm to 1100 nm wavelength range to enable both 785 and 830 nm laser wavelengths

  • High NA of 0.3 / F-number 1.6

  • Resolution: 0.4 nm (typical) or 6 cm-1 at 785 nm

  • High efficiency, transmission grating based design

  • High resolution Raman spectrometer
  • High resolution Raman spectrometer
  • High resolution Raman spectrometer
  • High resolution Raman spectrometer

Specifications

ParameterUnitENS-c316
Wavelength rangenm800 - 1100
Wavenumber shift rangecm-1200 - 36501)
Resolutioncm-16.32)
Slit heightμm3000
Numerical aperture0.3
Optical input optionsFree space, SMA or custom ferrule
DetectorAndor iVac 316
Detector coolingo C-60
Electrical interfaceUSB
Dimensionsmm x mm x mm128 x 152 x 248
Temperature induced shifto C< 0.01
Operating temperature rangeo C0 to 40
Storage temperature rangeo C-25 to 50

1) With 785 nm laser wavelength
2) typical resolution with 20 x 3000 μm slit

Benefits of transmission grating based spectrometers

The EAGLE is a series of high-resolution spectrometers. This is obtained by a unique lens-grating-lens design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput.
