EAGLE Raman HR 532

Home / Products / OEM Spectrometers / Raman

High throughput and high resolution

The EAGLE Raman HR 532 is a robust, athermal, industrial-grade, diode array-based spectrometer designed and optimized for Raman spectroscopy.

Key benefits

  • Highly sensitive

  • High resolution

  • Compact size

  • Robust and athermal design

  • Multiple options for optical input, detector, and electronics

  • One-stage TE-cooled to +5 °C

Key features

  • Wavenumber: 0 – 5136 cm-1

  • Resolution: 7 cm-1 (typical @ 532 nm laser excitation)

  • High NA of 0.2 / F-number 2.4

  • Footprint of 125 mm x 139 mm x 60 mm (including electronics and cooling fin)

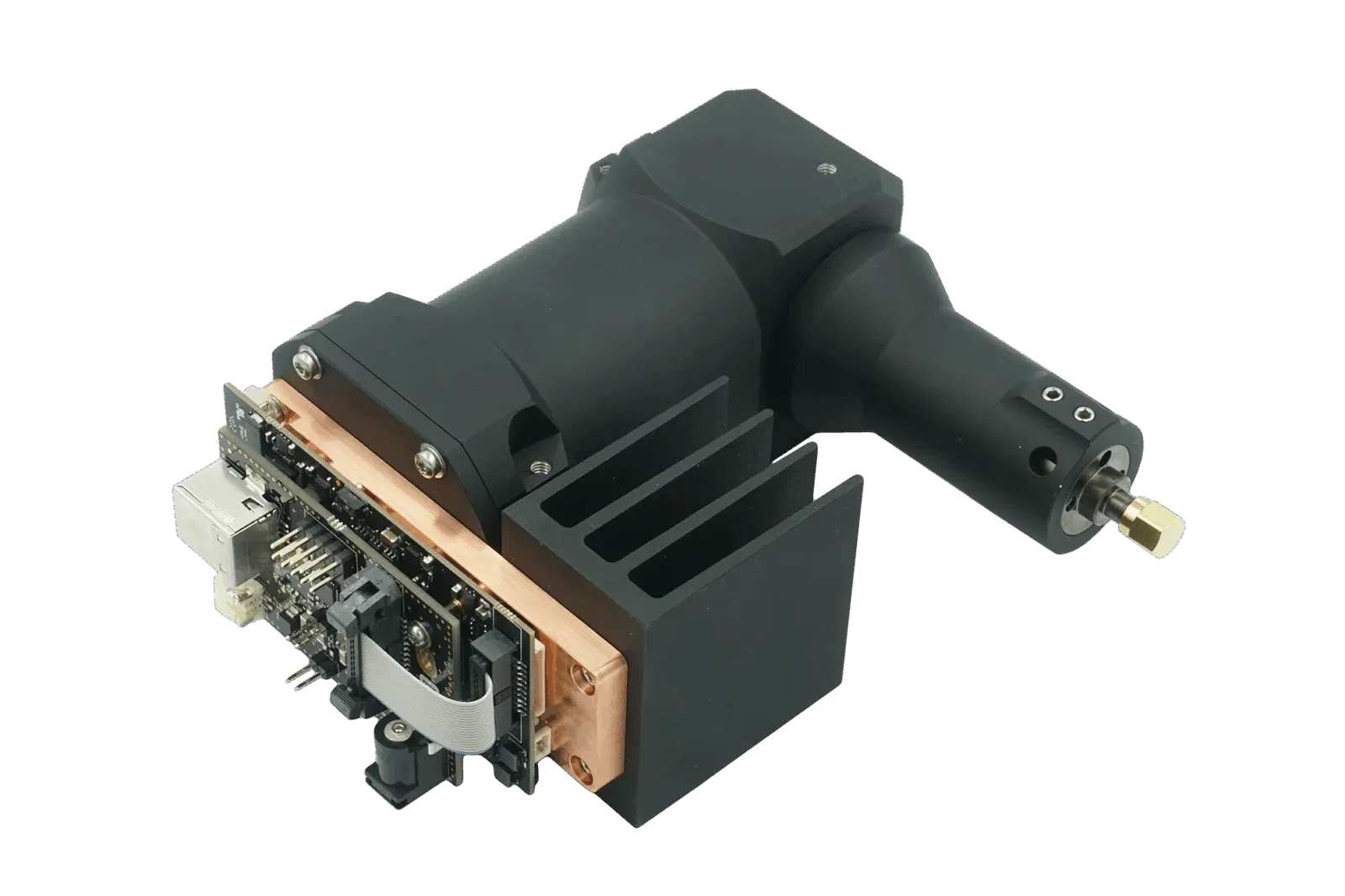

  • DSC04150_2000X1400_main view

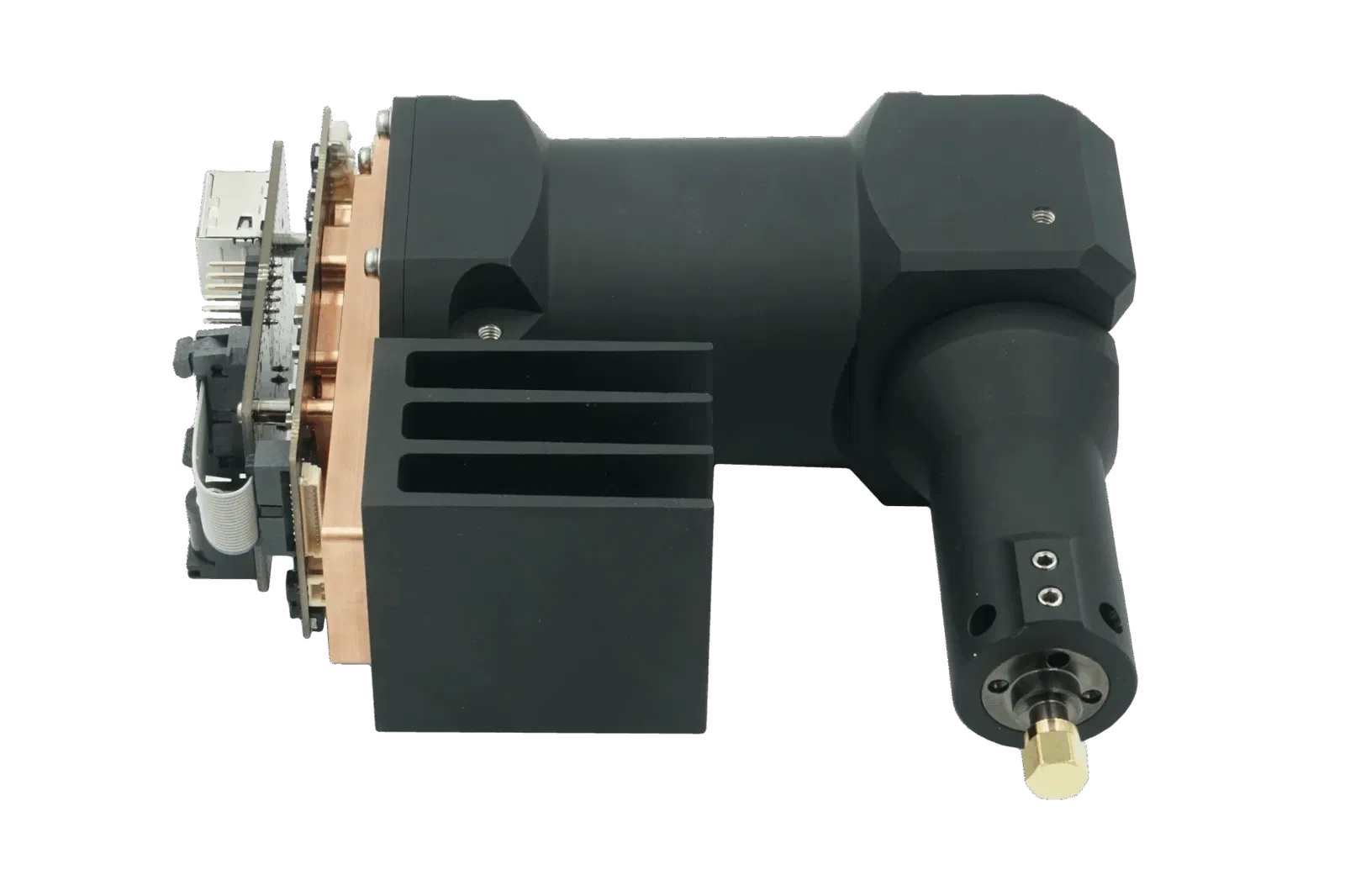

  • DSC04163_2000x1400_front view
  • DSC04159_2000x1400_left view
  • DSC04153_2000x1400_electronics view

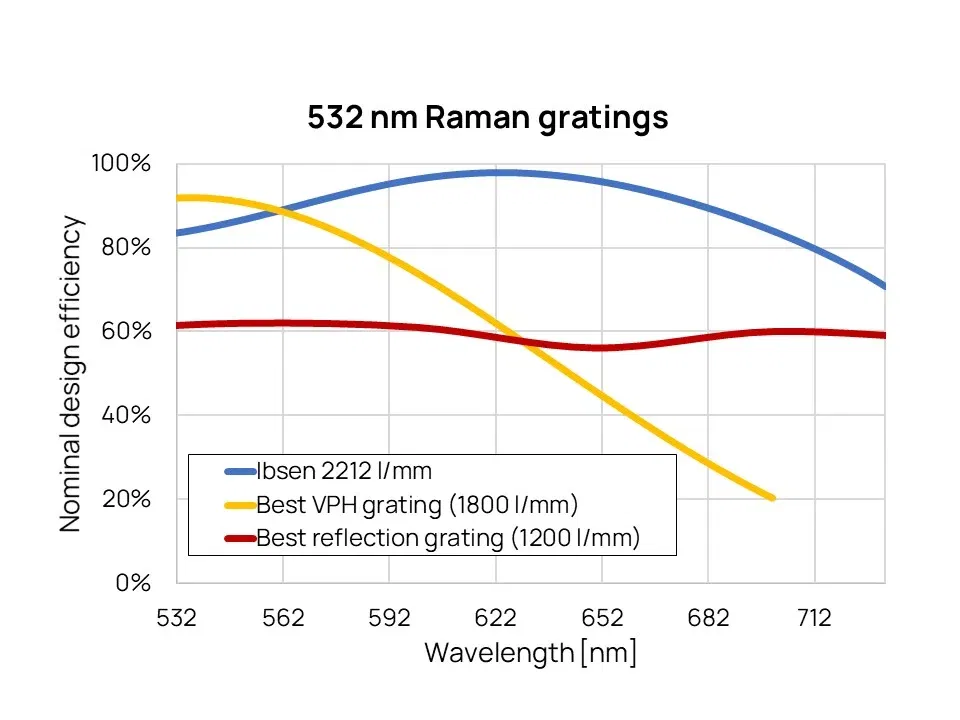

  • Raman Grating Comparison 532 nm

Specifications

ParameterUnitERT-385ERT-388
Wavelength rangenm532 - 732532 - 732
Wavenumber shift rangecm-10 - 51361)0 - 51361)
Resolutioncm-18.52)133)
Slit heightμm10003000
Numerical aperture0.20.2
Optical input optionsSMASMA
Internal Raman filterOptionalOptional
Detector (Hamamatsu)S11850-1106S14651-2048
Detector coolingo C+5+5
ElectronicsDISB-386DISB-386
Electrical interfaceDISB w SPI, DISB w USB 2.0DISB w SPI, DISB w USB 2.0
Dimensions4)mm x mm x mm125 x 139 x 60125 x 139 x 60
Temperature induced shiftnm / o C< 0.02< 0.02
Operating temperature rangeo C0 to 400 to 40
Storage temperature rangeo C-40 to 70-40 to 70

1) With 532 nm laser wavelength
2) Maximum resolution with 20 x 1000 μm slit
3) Maximum resolution with 20 x 3000 μm slit
4) Including DISB-386 electronics and cooling fin

Developer’s Kit

The EAGLE Raman HR 532 is offered with a Developer’s Kit for a plug and play experience.

The Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

DSC04150_2000X1400_main view

Benefits of transmission grating based spectrometers

The EAGLE is a series of high-resolution spectrometers. This is obtained by a unique lens-grating-lens design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput.
