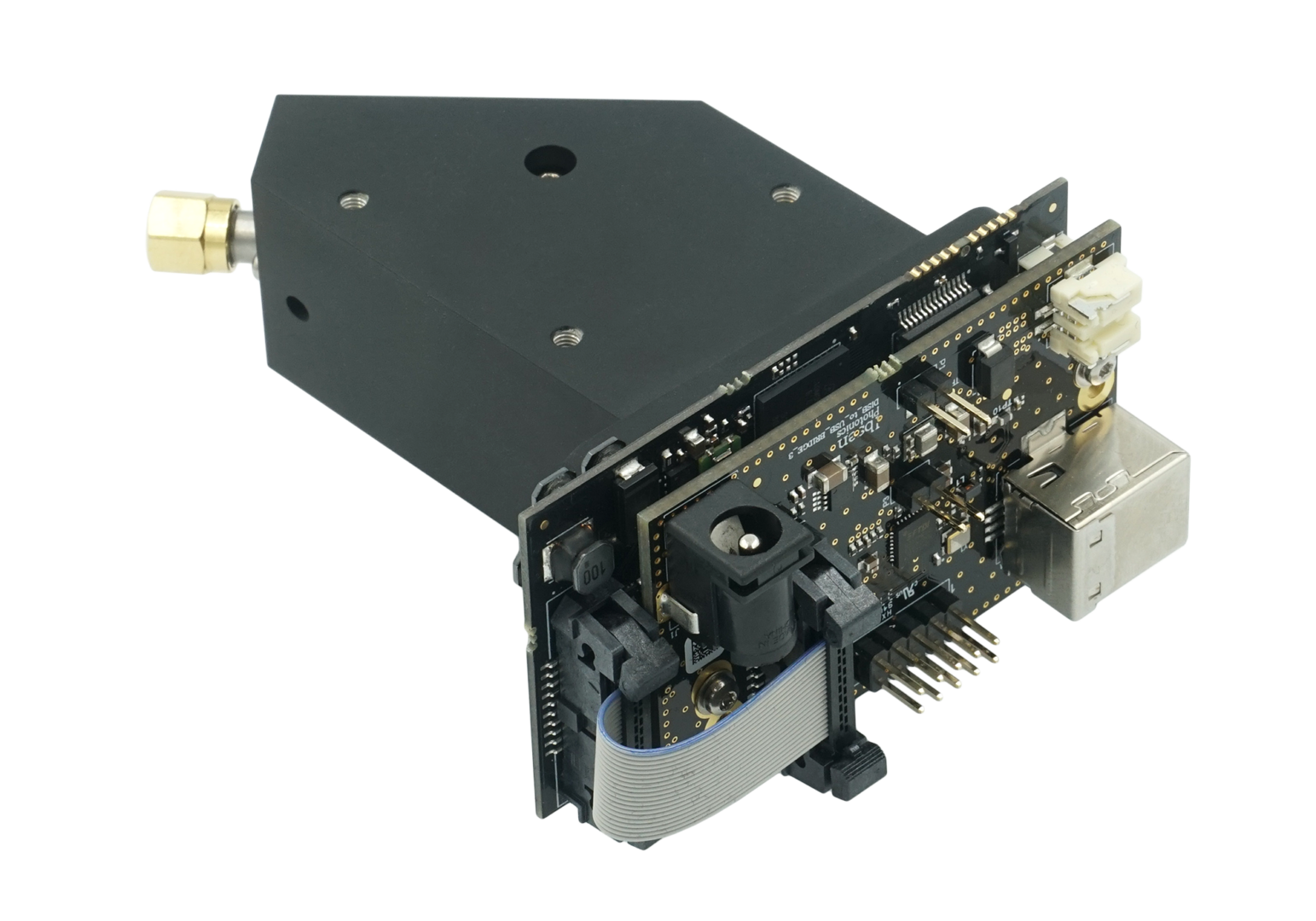

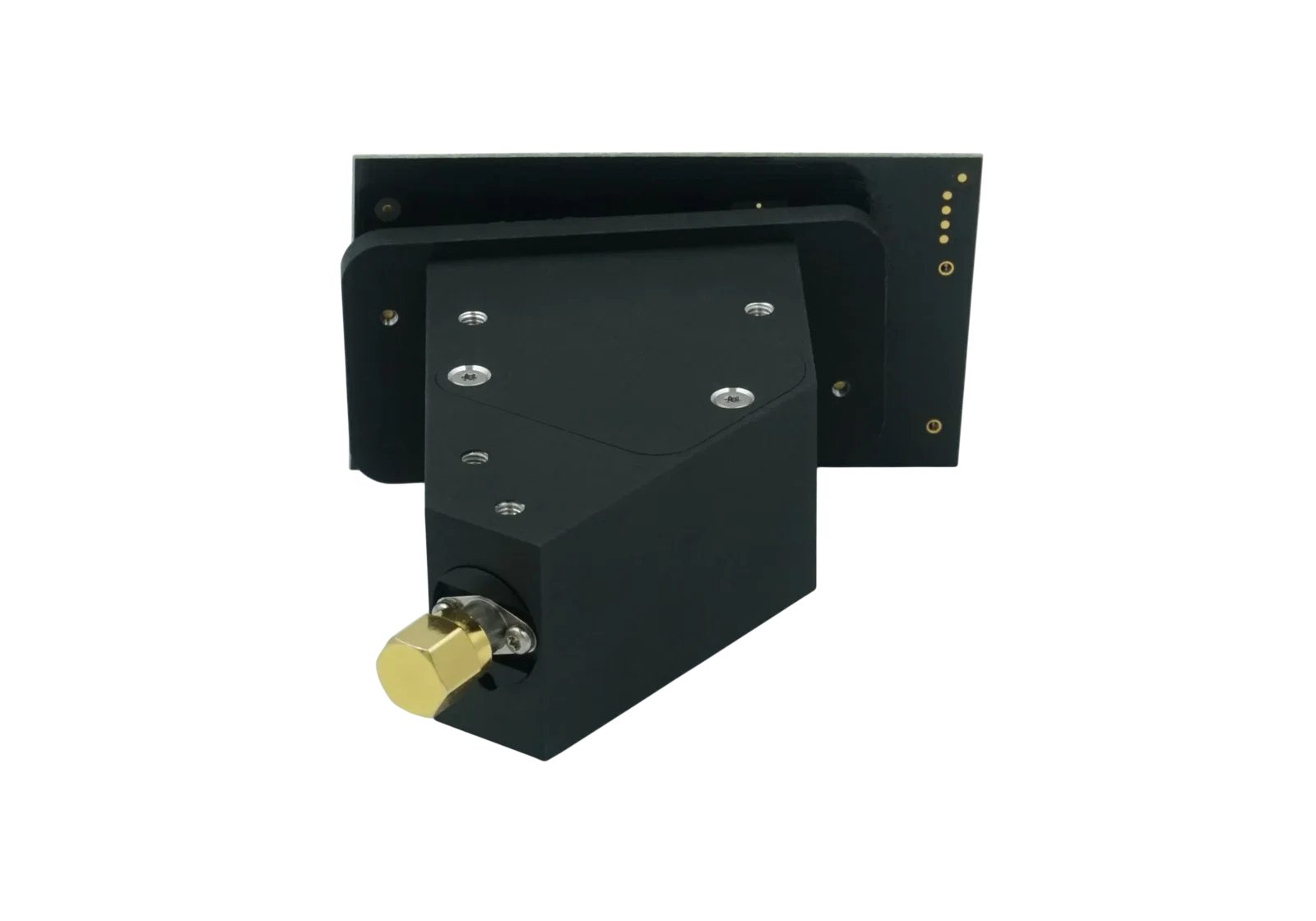

Compact ROCK VIS-NIR

Compact high throughput and robust spectrometer modules for OEM integration

The compact ROCK VIS-NIR spectrometers offer the market’s highest throughput industrial-grade spectrometers. These benefits are accomplished by our highly efficient in-house manufactured transmission gratings and a high numerical aperture of 0.2 (f/2.5) nearly on-axis beam geometry in the optical bench.

The compact ROCK VIS-NIR spectrometers enable better sensitivity and/or lower optical light input power than traditional spectrometers.

Key benefits

  • The world’s best sensitivity

  • Provides faster and more accurate measurements

  • High dynamic range

  • Ideal for demanding industrial environments

Key features

  • 500 nm to 1100 nm wavelength range

  • Numerical aperture of 0.2

  • Resolution starting from < 1.2 nm

  • Footprint of 75 mm x 50 mm x 30 mm

  • Symmetrical peak shapes

  • Athermal optical bench

Specifications

ParameterUnitRST-109RST-101RST-305RST-380
Wavelength rangenm500 - 1100500 - 1100500 - 1100500 - 1100
Best resolution
(typical value, 12.5 μm slit)
nm1.0---
Best resolution
(typical value, 35 μm slit)
nm-2.52.72.7
Slit width optionsμm12.535, 50, 7035, 50, 7035, 50, 70
Slit heightμm250250750750
Numerical aperture0.20.20.20.2
Optical inputSMASMASMASMA
DetectorHamamatsu 13496NHamamatsu S11639N-01Hamamatsu S10420-1006Hamamatsu S11156-2048-02
Number of used pixels~2000~10001024~1000
Electrical interfaceSPI or USBSPI or USBSPI or USBSPI or USB
Dimensionsmm x mm x mm75 x 50 x 3075 x 50 x 3075 x 50 x 3075 x 50 x 30
Temperature induced shiftnm / o C< 0.02< 0.02< 0.02< 0.02
Operating temperature rangeo C0 to 500 to 500 to 500 to 50
Storage temperature rangeo C-40 to 65-40 to 65-40 to 65-40 to 65

Benefits of transmission grating based spectrometers

The ROCK is a series of high-throughput spectrometers. This is obtained by a unique lens-grating-lens design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and impressive resolution.
