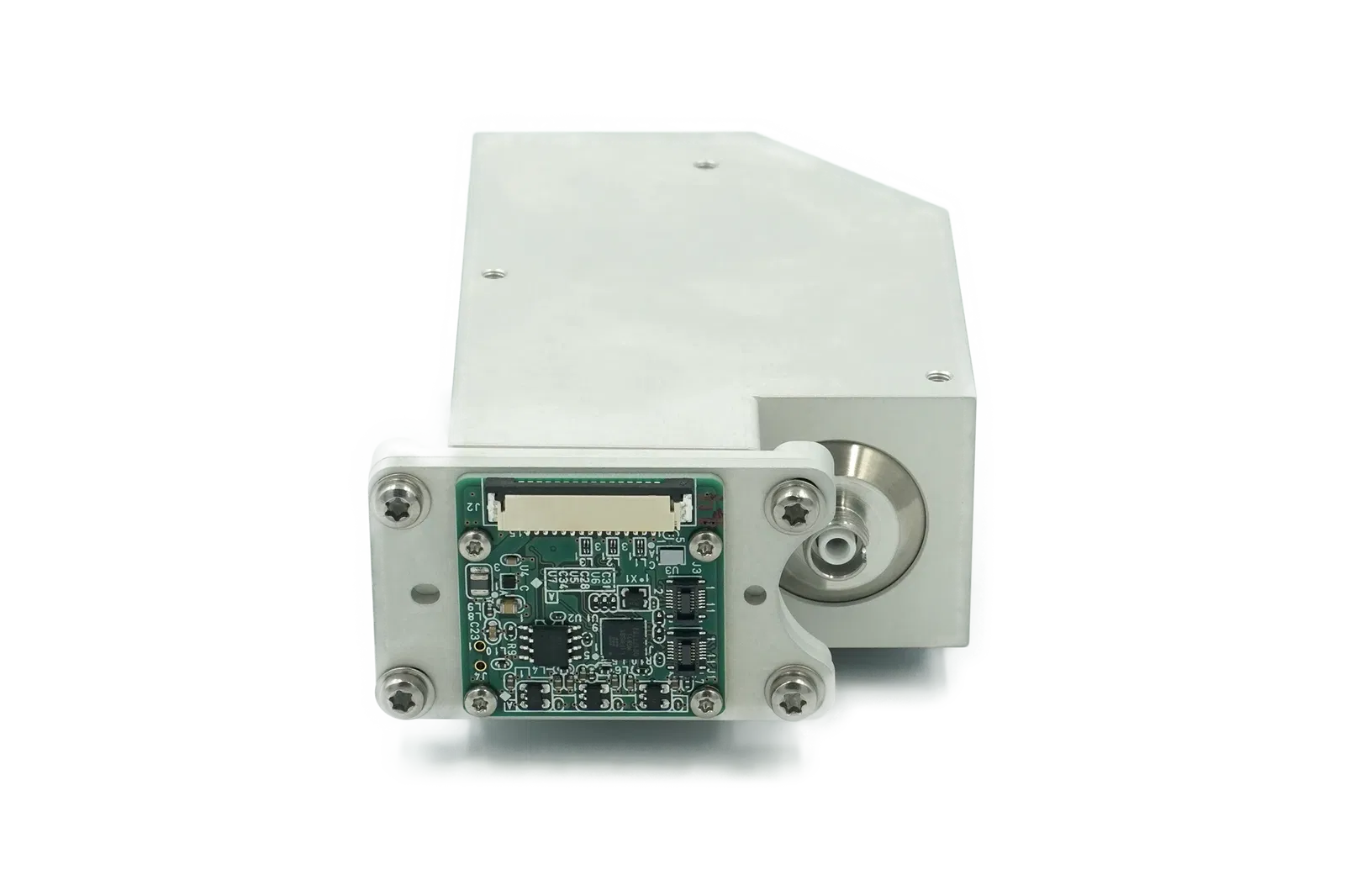

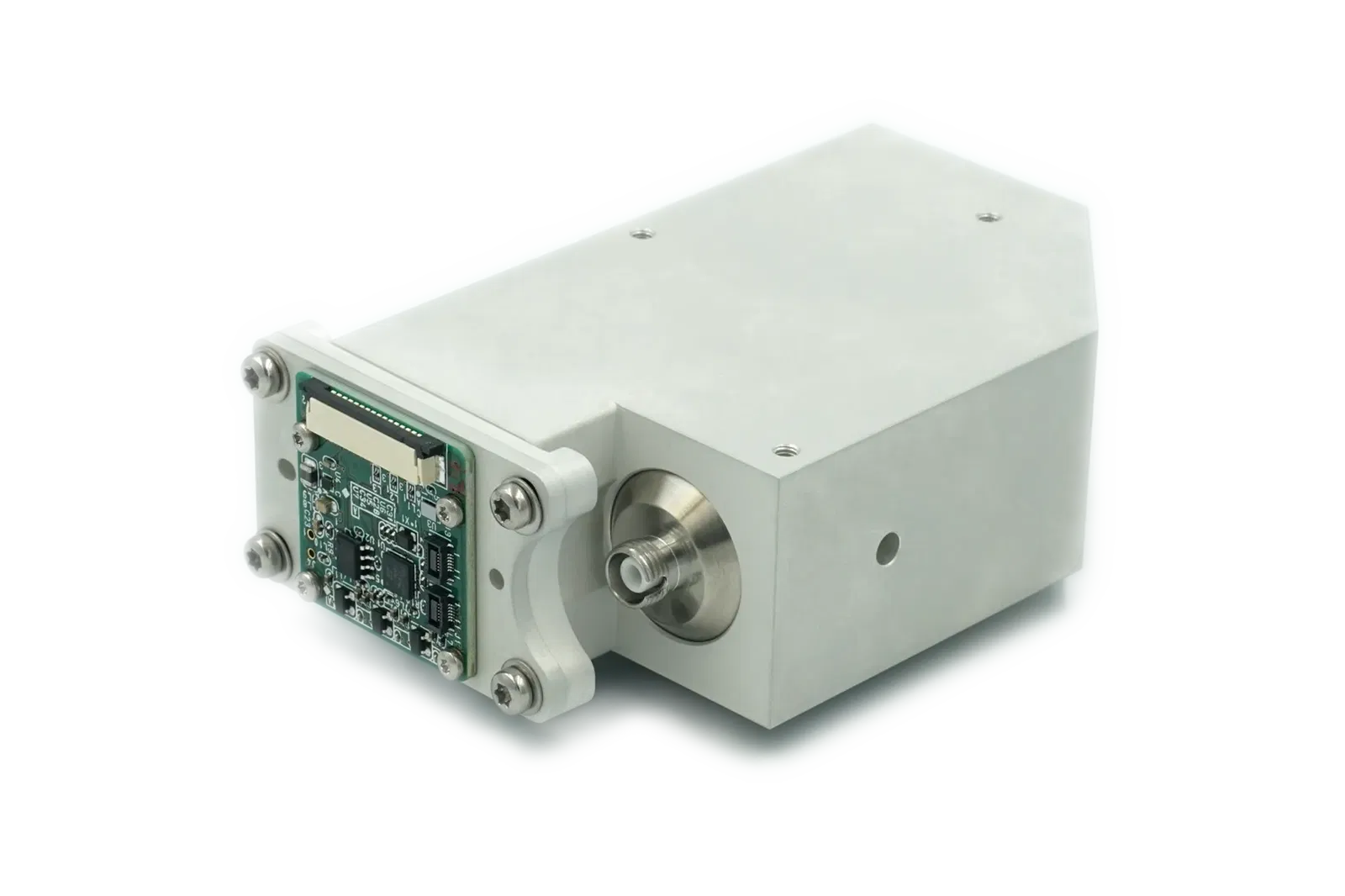

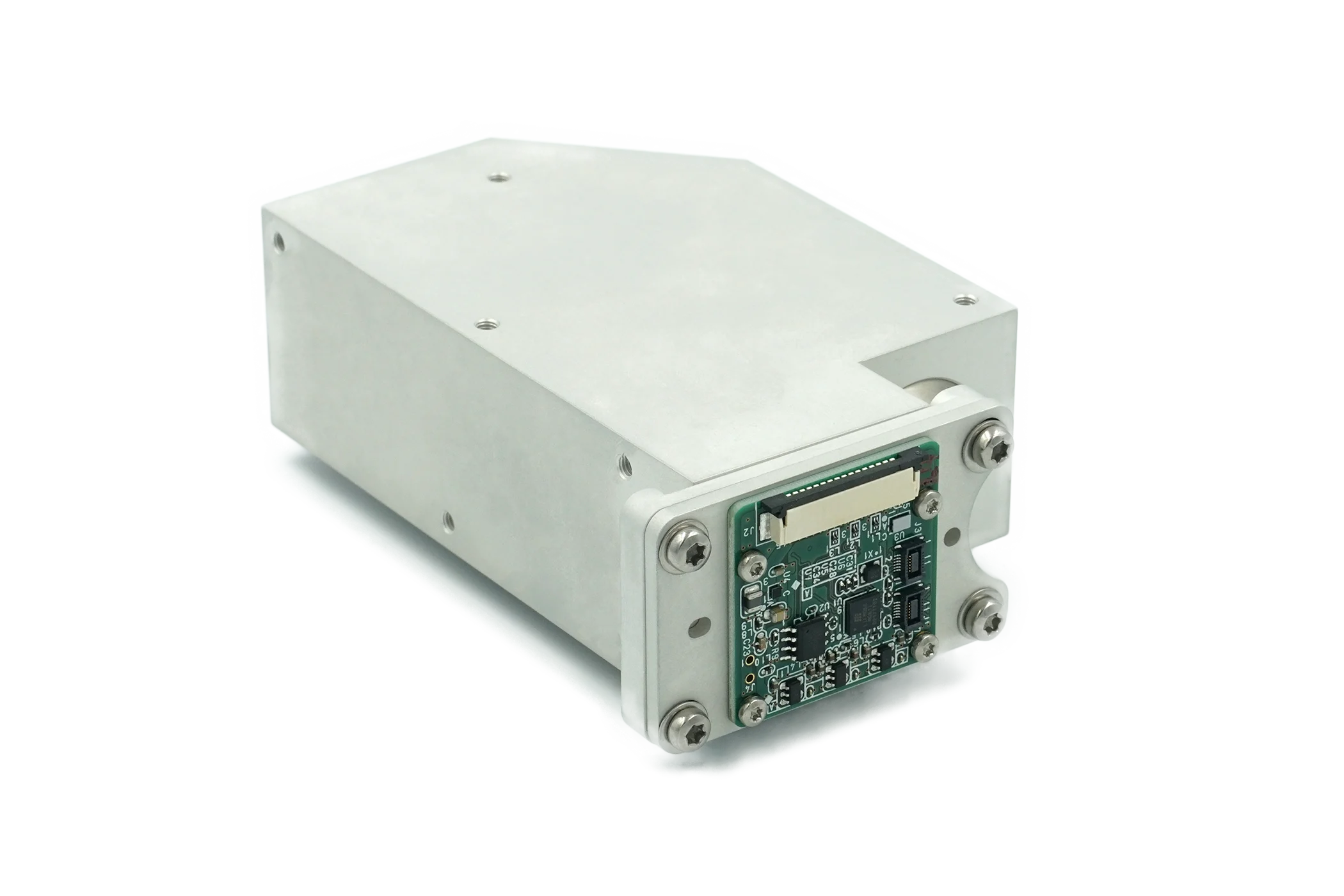

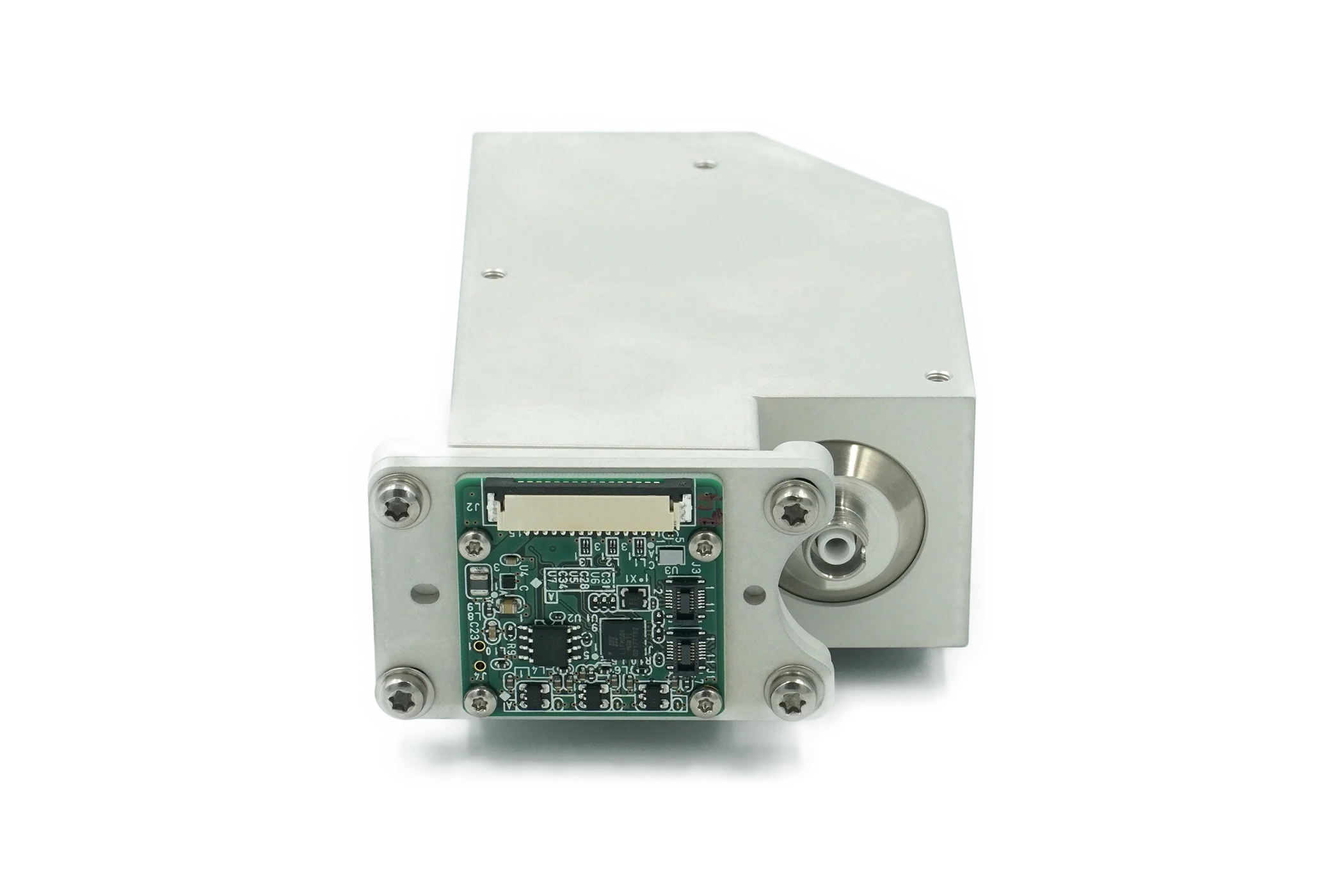

Compact EAGLE C-OCT-S

High optical throughput

The Eagle C-OCT-S provides a very compact and cost-effective OCT spectrometer with exceptional sensitivity and axial resolutions down to 7 µm (in air), ideal for use in portable or home-use applications.

Key benefits

  • High optical throughput

  • Compact size

  • Robust and athermal design

  • Customizable for multiple wavelength ranges

  • OEM integration-friendly design

Key features

  • 810 nm to 870 nm wavelength range

  • Resolution: 0.06 nm (typical)

  • 1024 tall pixel camera with 7 x 200 µm pixel size

  • Frame rate 34 kHz

  • High efficiency, transmission grating based design

Ibsen Photonics’ design allows for high performance in this form factor while simultaneously maintaining a robust and environmentally stable design that ensures consistent and calibration-free operations.

Specifications

ParameterUnitECS-190
Wavelength rangenm810 - 8701)
Resolutionnm0.06
Numerical aperture0.13
Optical inputFC/UPC
CameraHamamatsu C16821
Number of pixels1024
Pixels dimensionsμm x μm7 x 200
Frame ratekHz34
Electrical interfaceMIPI D-PHY/CSI-2 interface 10-bit Raw2)
Dimensionsmm x mm x mm61 x 110 x 33
Temperature induced shiftnm / o C< 0.002
Operating temperature rangeo C0 to 50
Storage temperature rangeo C-20 to 70

1) Other ranges available upon request
2) Developer kit with USB3 available upon request

Developer’s Kit

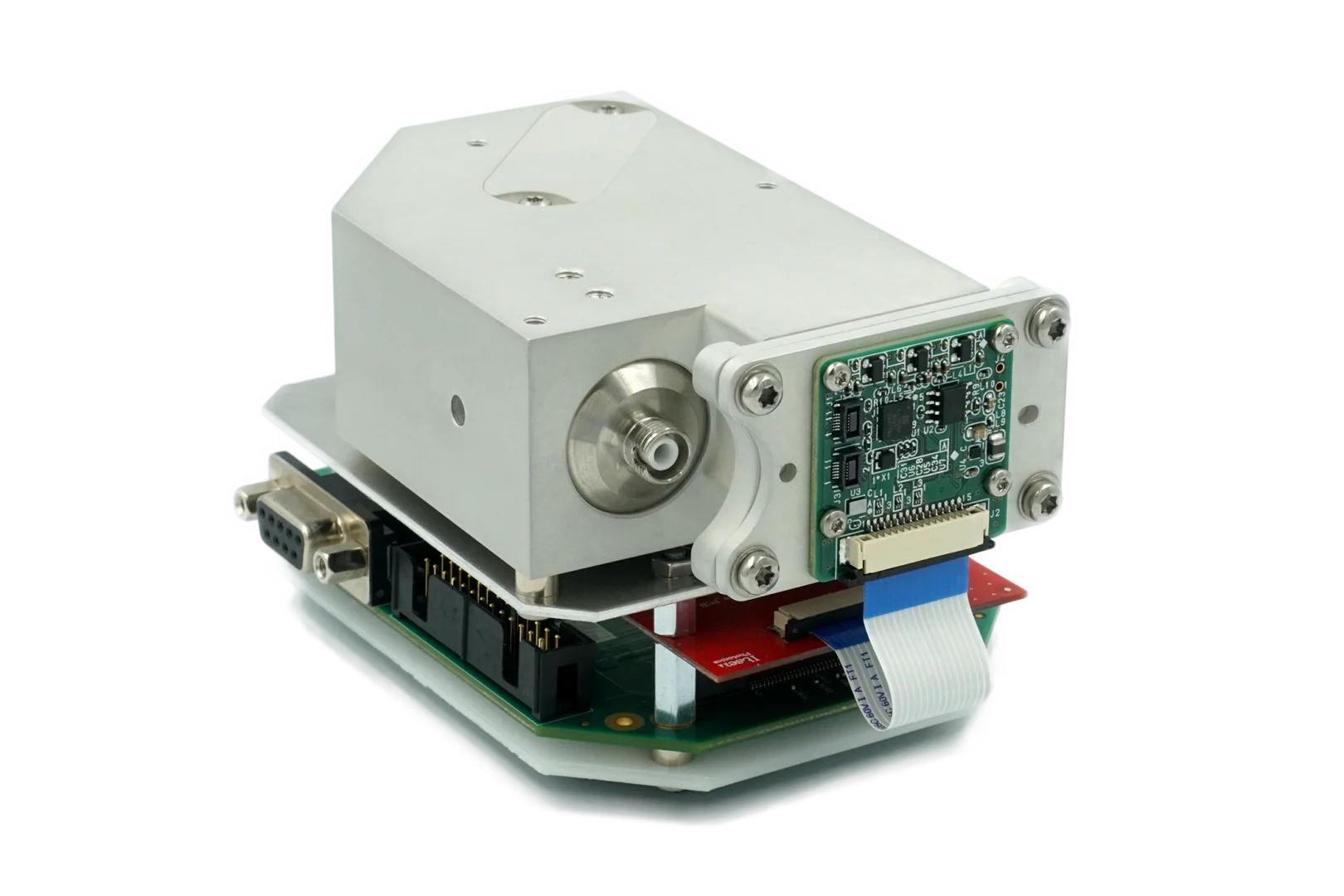

The EAGLE C-OCT-S is offered with a Developer’s Kit to get started plug and play.

The Developer’s Kit allows you to easily demonstrate the performance of the spectrometer without the need for complex hardware integration or time-consuming programming.

Benefits of transmission grating based spectrometers

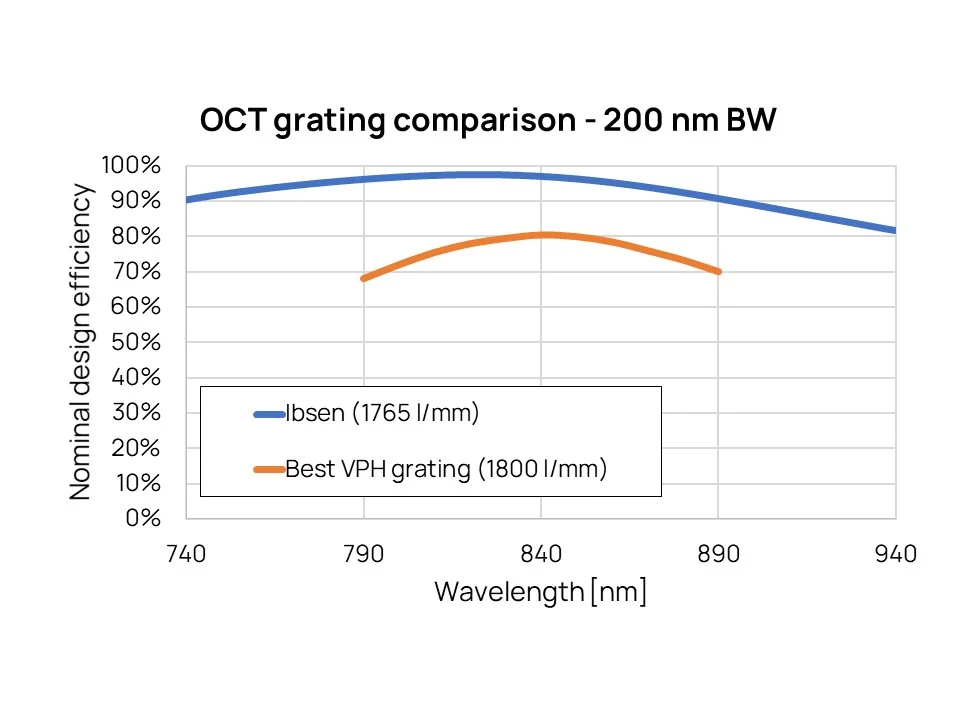

The EAGLE is a series of high-resolution spectrometers. This is obtained by a unique lens-grating-lens design utilizing Ibsen Photonics’ high dispersion transmission gratings. Furthermore, the spectrometers provide high efficiency and high throughput.
