Spectrometer grating for 1100-2200 nm

Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers.

Features and benefits

  • Lithographic or holographic stepper patterning technology combines the highest quality of patterning with the reproducibility and cost level of replicated gratings

  • 100% Fused silica gratings provide unbeatable temperature stability, environmental tolerance and power damage threshold – also in the UV

  • Grating resolutions up to ~3000 l/mm

  • High diffraction efficiency with high dispersion

  • Low polarization dependence (PDL) over broad spectral ranges

  • Combined wavelength dispersion and folding elements

  • Multiple prototyping, small and high volume production technologies

  • Class 10 cleanroom production ensures low noise and high cleanliness – as well as a controlled environment for our metrology capabilities

  • Extensive grating metrology including proprietary period measurement systems, a versatile diffraction efficiency measurement system, a high resolution defect inspection system as well as AFM/SEM ensuring that agreed upon specifications are fulfilled

ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Grating resolution459 l/mm
Illumination wavelength range1100 nm - 2200 nm
Angle of incidence17 deg
MaterialsFused silica
Chip size15 mm x 15 mm
Grating area13.5 mm x 12.5 mm
Chip thickness0.625 mm

Download Product Sheets

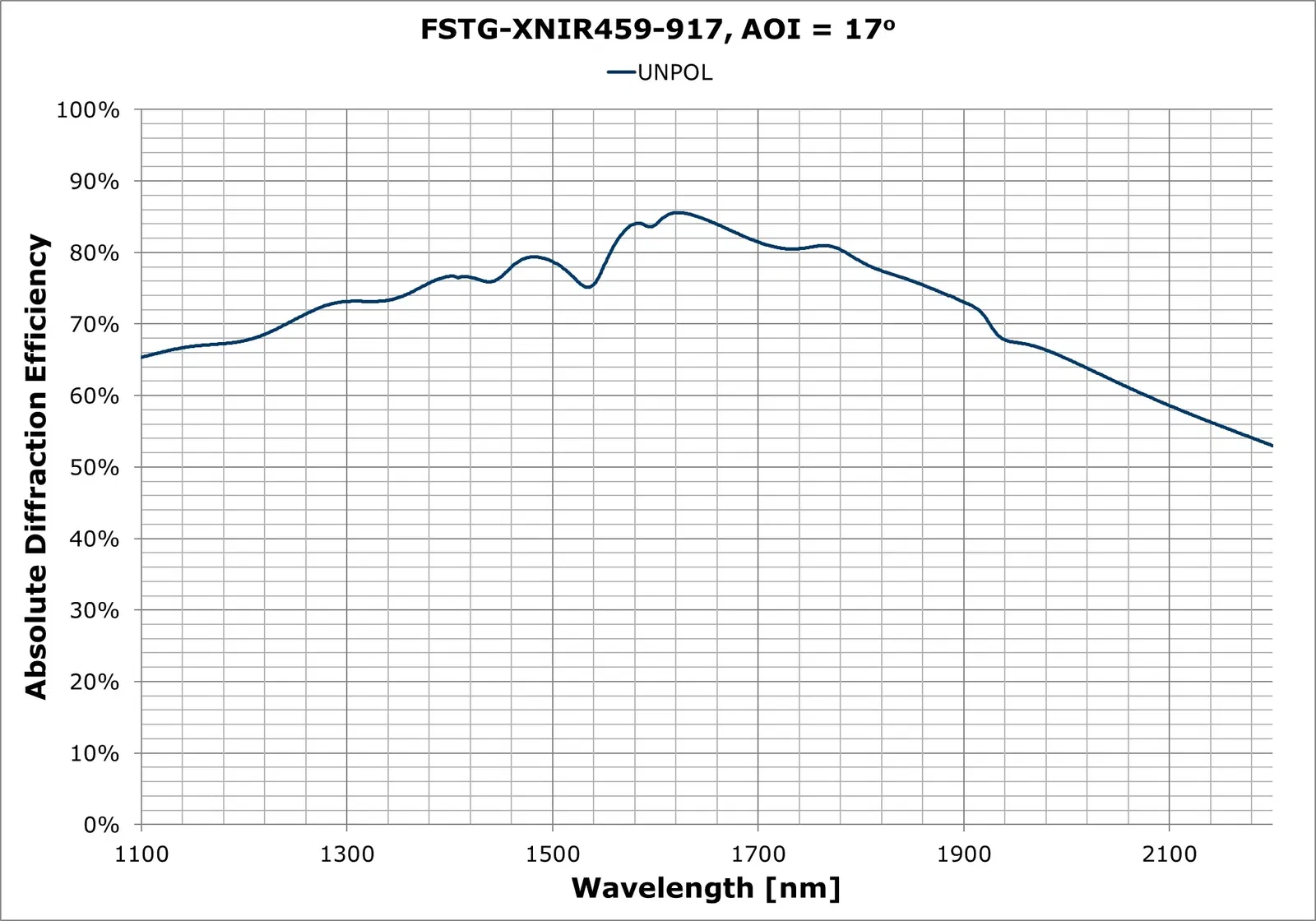

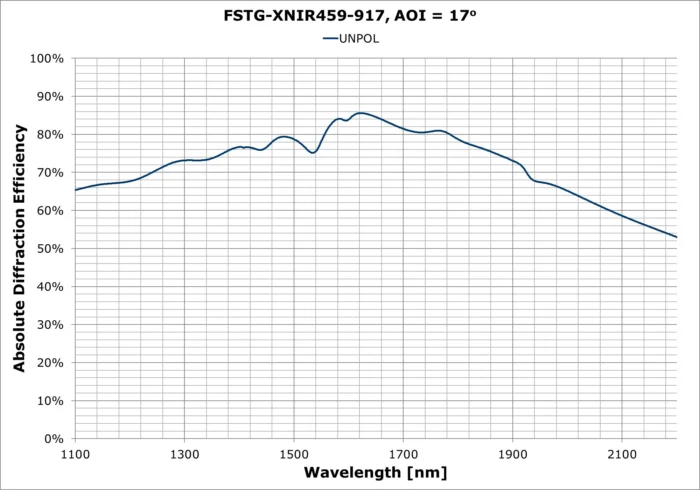

Spectrometer Grating FSTG-XNIR459-917

We are happy to discuss your requirements for customized gratings. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.
