PCG-966/800-960

Home/Products/Transmission gratings/Pulse compression gratings

966 l/mm Transmission pulse compression grating for 800 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-966-800-960
Parameter Specification
Grating resolution966 lines / mm
Resolution accuracy+/- 0.1 line/mm
Central wavelength of operation800 nm
Operating polarizationTM
Dispersion0.061 degrees/nm
Incidence angle20 degrees

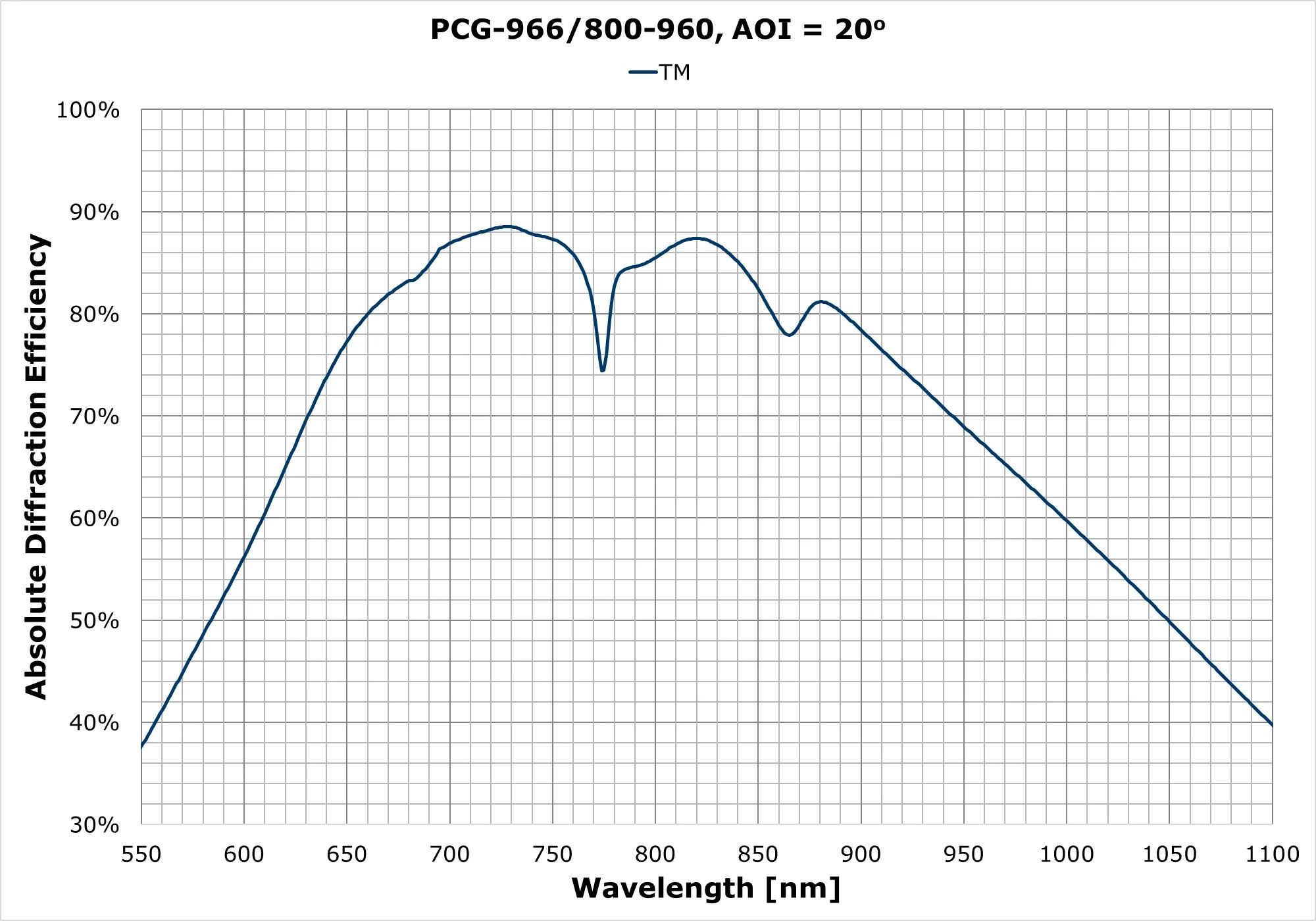

Diffraction efficiency>70% @ 800 nm
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size30 mm x 15 mm
Substrate size32 mm x 25 mm
Substrate thickness 2 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€1.995,00

Quantity based pricing table

Min Max Unit Price
1 4 € 1,995.00
5 9 € 1,750.00
10 and more € 1,495.00
