PCG-2660/532-812ds

Home/Products/Transmission gratings/Pulse compression gratings

2660 l/mm Transmission pulse compression grating for 532 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Available for 1064 nm and 800 nm – or custom wavelengths

  • Low wavefront distortion

  • Low stray light

PCG-2660-812
Parameter Specification
Grating resolution2660 lines / mm
Resolution accuracy1 line / mm
Central wavelength of operation532 nm
Operating polarizationTE (s)
Dispersion0.22 degrees
Incidence angleLittrow (45 degrees)

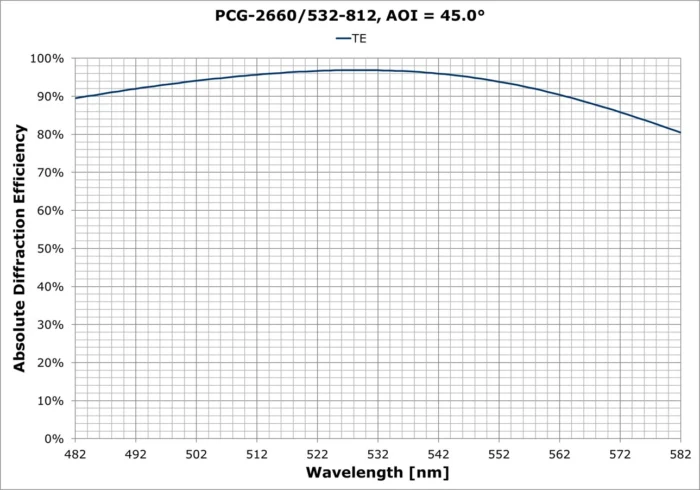

Diffraction efficiency>90%
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size100 mm x 70 mm
Substrate size105 mm x 75 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€12.495,00

Quantity based pricing table

Min Max Unit Price
– 1 € 12,495.00
– 2 € 9,995.00
