I-MON 256 C OEM

Home / Products / Interrogation monitors / I-MON OEM

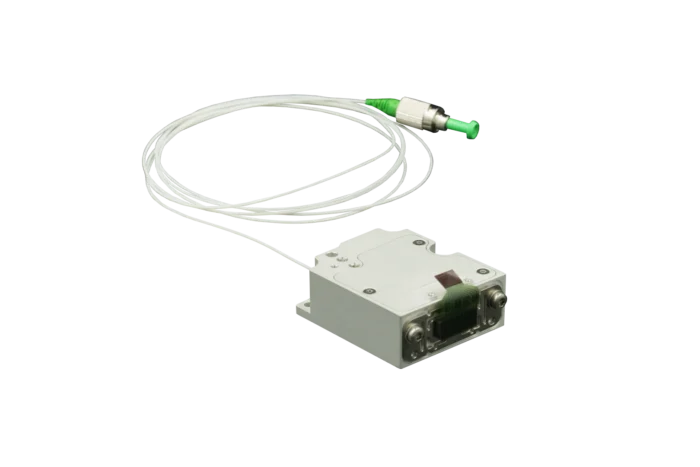

I-MON 256  C OEM Interrogation monitor (1520 - 1579 nm)

The I-MON 256  C OEM Interrogation Monitors offer real-time spectrum monitoring of FBG sensors in the 1550 nm wavelength range at line scan rates up to 7.2 kHz. A high spectrometer resolution combined with a broad wavelength range provides high-resolution interrogation monitors allowing measurement of a large number of FBG sensors.

A direct interface to the InGaAs detector offers OEM integrators a cost efficient solution for building their FBG sensing systems.

Applications

  • Vibration analysis
  • Temperature measurements
  • Pressure monitoring
  • Strain measurements
I-MON OEM 256 C
ParameterUnitI-MON 256 C OEM
Maximum number of FBG sensors36
Minimum FBG spacingpm1600 pm
Wavelength rangenm1520 - 1579
Wavelength fit resolution(*)pm< 0.5
Repeatability
(over any pol. state)		pm3 (5 max)
Wavelength drift (**)pm / deg C1 (3 max)
Power/Measurement dynamic range (*)dB40/15
Input optical power range (*)dBm-70 to - 22
Measurement frequency (*)kHz7.2 max.
Electrical interfaceDirect interface to nGaAs
detector via flexible PCB
Number of pixels256
Size (LxWxD)mm48.3x48x16.2
Operating temperaturedeg C0 to 70

(*) Depending on customer electronics.

(**) Note that by applying temperature control or temperature correction, the wavelength accuracy over the entire wavelength range can be improved.

A detailed Product Specification and User’s Manual are available upon request.

Contact Ibsen for a quotation.
