FSTG-NIR1500-909

Spectrometer grating for 785-1100 nm

Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers.

Features and benefits

  • Lithographic or holographic stepper patterning technology combines the highest quality of patterning with the reproducibility and cost level of replicated gratings

  • 100% Fused silica gratings provide unbeatable temperature stability, environmental tolerance and power damage threshold – also in the UV

  • Grating resolutions up to ~3000 l/mm

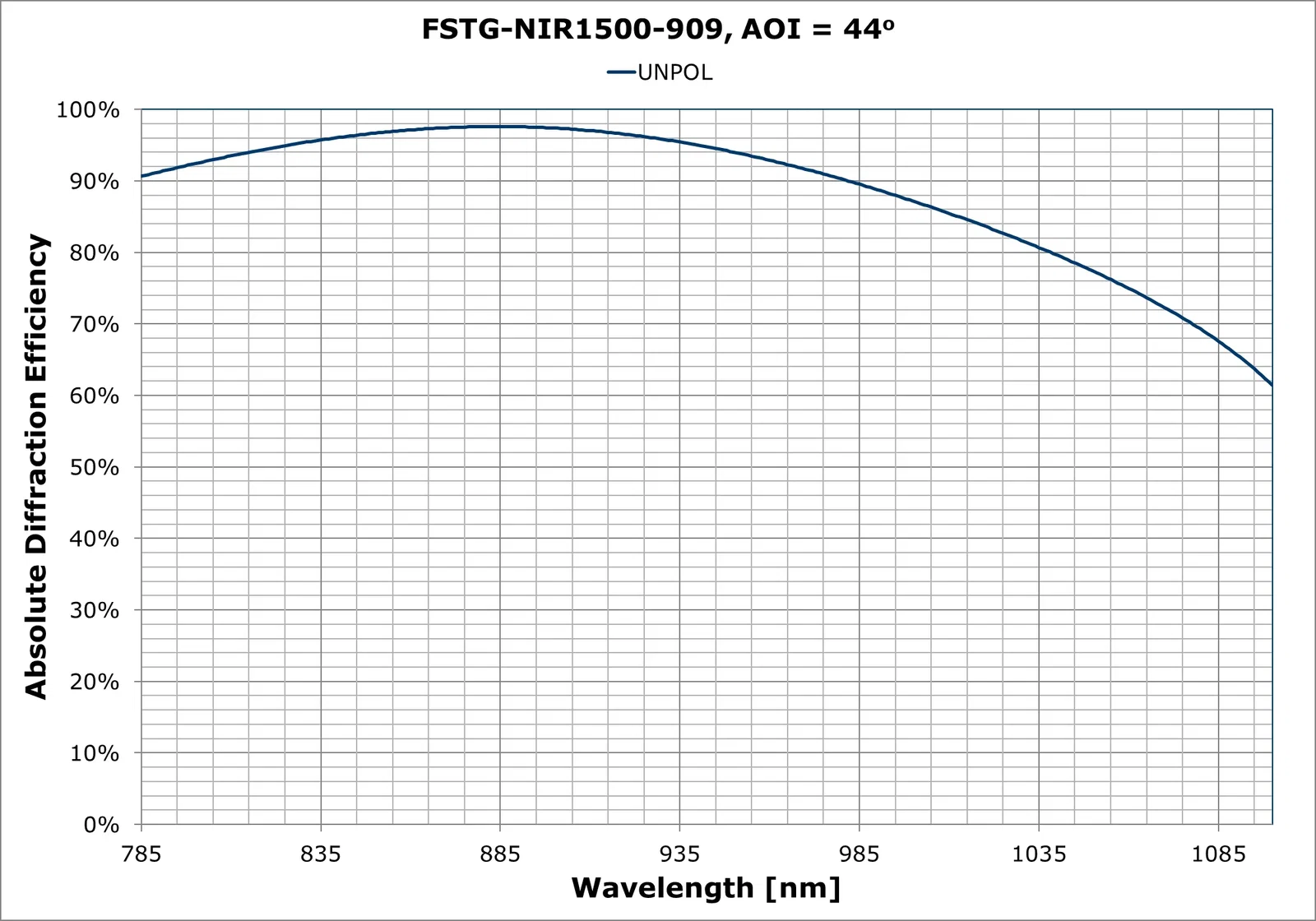

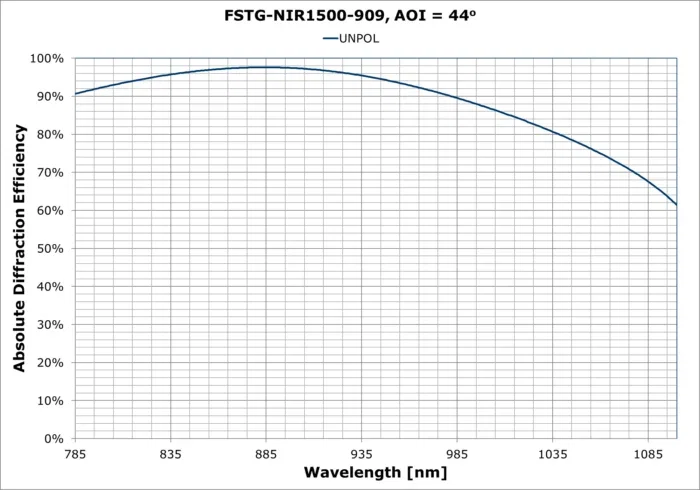

  • High diffraction efficiency with high dispersion

  • Low polarization dependence (PDL) over broad spectral ranges

  • Combined wavelength dispersion and folding elements

  • Multiple prototyping, small and high volume production technologies

  • Class 10 cleanroom production ensures low noise and high cleanliness – as well as a controlled environment for our metrology capabilities

  • Extensive grating metrology including proprietary period measurement systems, a versatile diffraction efficiency measurement system, a high resolution defect inspection system as well as AFM/SEM ensuring that agreed upon specifications are fulfilled

ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Grating resolution1500 l/mm
Illumination wavelength range785 nm - 1100 nm
Angle of incidence44 deg
MaterialsFused silica and high-power, dielectric AR coating materials
Chip size33 mm x 18 mm
Grating area30 mm x 15 mm
Chip thickness1 mm

Download Product Sheets

Ibsen Product Sheets – FSTG-NIR1500-909



We are happy to discuss your requirements for customized gratings. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

2.800,00

Quantity based pricing table

Min Max Unit Price
1 4 € 2800.00
5 9 € 2165.00
10 and more € 1532.00
