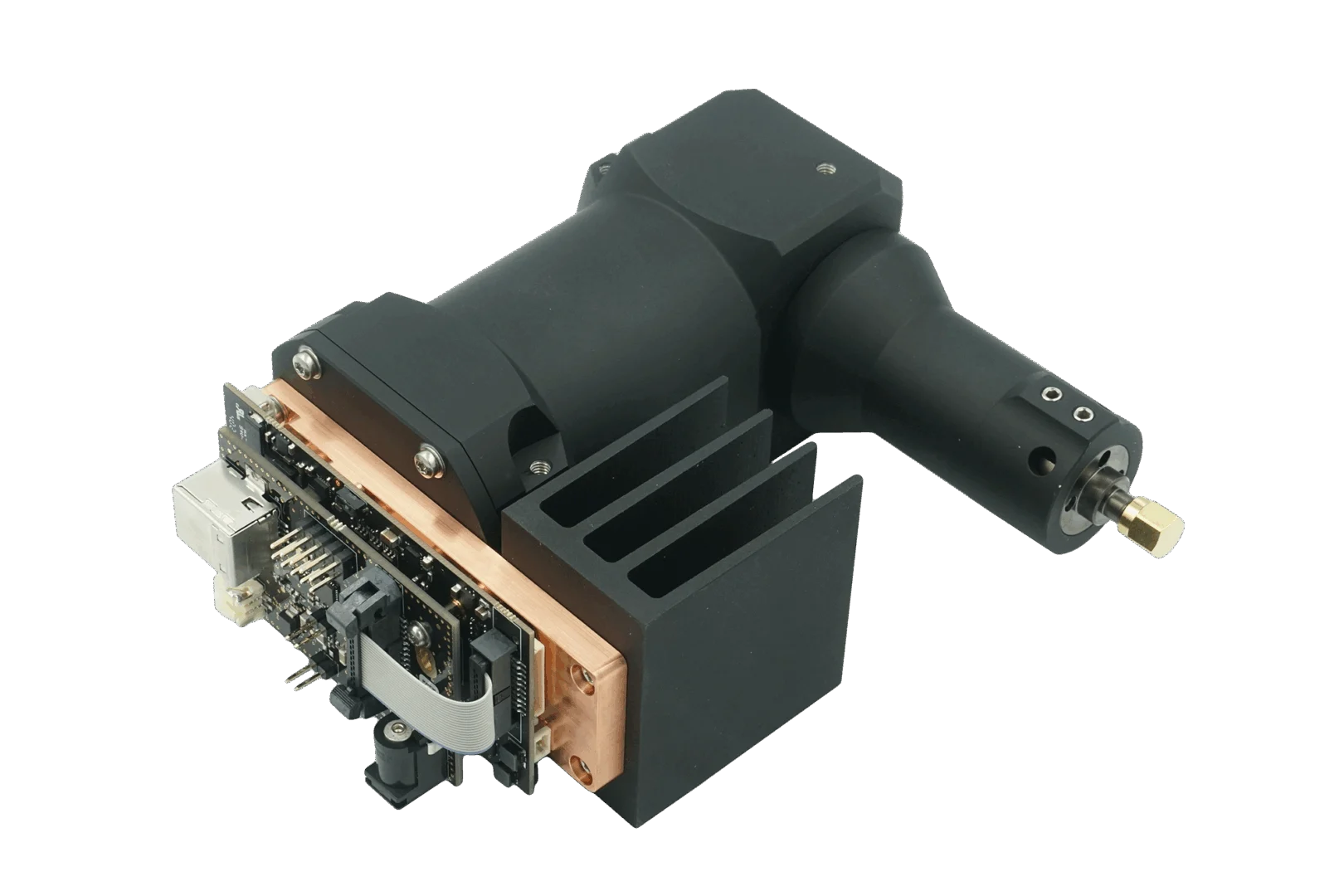

EAGLE spectrometers
High-resolution OEM spectrometers for Raman and OCT
EAGLE is a series of highly sensitive, high resolution spectrometers. Using Ibsen’s high efficiency, high dispersion transmission gratings in an on-axis lens-grating-lens design ensures world leading efficiency and high optical throughput.
Key benefits
The EAGLE platform consists of robust and high-resolution spectrometers, suited for OEM integration into weak intensity Raman solutions or SD-OCT instruments.
The world’s best broadband gratings

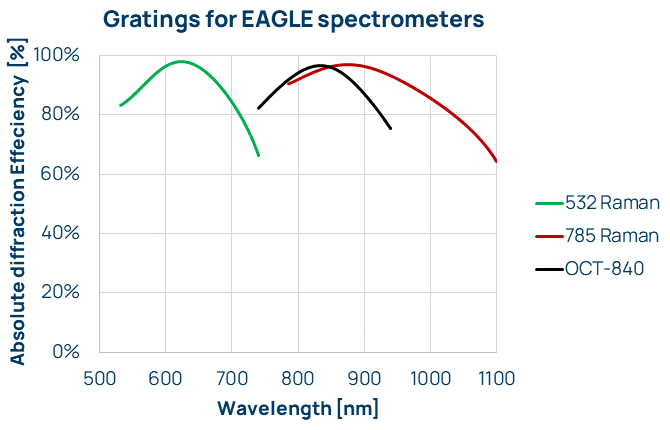

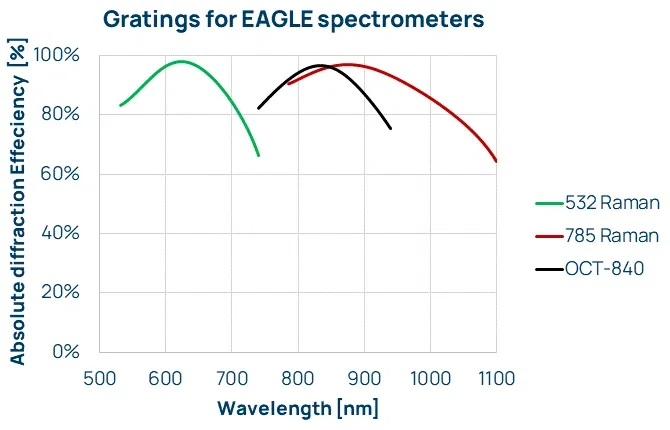

The high sensitivity and resolution of our EAGLE spectrometers is made possible by our unique in-house manufactured transmission gratings.
Our gratings provide unparalleled high broadband efficiency, enabled by optimized groove profiles, a thin optical path, and a high refractive index contrast. The inherent nature of fused silica ensures our gratings are thermally stable, while working in transmission providing angle insensitivity and vibrational stability.
We design our EAGLE spectrometers to perfectly match and supplement the performance of our gratings, but we also supply gratings for use in your own spectrometer design.
Our EAGLE spectrometers
Spectrometers for Raman
| Parameter | Unit | EAGLE Raman HR 532 | EAGLE Raman HR 785 | EAGLE Raman-S |
|---|---|---|---|---|
| Wavelength range | nm | 532 - 732 | 785 - 1080 | 800 - 1100 |
| Wavenumber shift range | cm-1 | 0 - 51361) | 0 - 34802) | 200 - 36502) |
| Resolution | cm-1 | 8.53) | 5.83) | 6.34) |
| Numerical aperture | 0.2 | 0.2 | 0.3 | |
| Optical input options | SMA | SMA | Free space, SMA or custom ferrule | |
| Multi-channel capability | No | No | Yes | |
| Detector options | Hamamatsu S11850-1106 or S14651-2048 | Hamamatsu S11850-1106 or S14651-2048 | Andor iVac 316 | |
| Detector cooling | o C | +5 | +5 | -60 |
| Electrical interface | SPI or USB | SPI or USB | USB | |
| Dimensions | mm x mm x mm | 125 x 139 x 60 | 125 x 139 x 60 | 128 x 152 x 248 |
1) With 532 nm excitation laser wavelength
2) With 785 nm excitation laser wavelength
3) Maximum resolution with 20 x 1000 μm slit
4) Typical resolution with 20 x 3000 μm slit
Spectrometers for OCT
| Parameter | Unit | EAGLE OCT-S-40 | EAGLE OCT-S-90 | EAGLE OCT-S-140 | EAGLE C-OCT-S-90 |
|---|---|---|---|---|---|
| Wavelength range | nm | 820 - 860 | 800 - 890 | 780 - 920 | 795 - 885 |
| Resolution | nm | 0.02 | 0.05 | 0.09 | 0.05 |
| Number of pixels | 2048 | 2048 | 2048 | 2048 | |
| Pixel size | μm x μm | 10 x 200 | 10 x 200 | 10 x 200 | 7 x 200 |
| Frame rate options | kHz | 20, 80, 130, 250 | 20, 80, 130, 250 | 20, 80, 130, 250 | 61 101 6) |
| Electrical interface options | CameraLink and USB31) | CameraLink and USB31) | CameraLink and USB31) | MIPI CSI-2 interface2) | |
| Maximum measurement depth (air/water) | mm | 9.0 / 6.7 | 4.0 / 3.0 | 2.6 / 2.0 | 4.0 / 3.0 |
| Axial resolution (air/water) | μm | 9.2 / 6.9 3) | 4.1 / 3.1 3) | 2.7 / 2.13) | 4.1 / 3.1 3) |
| Dimensions | mm x mm x mm | 185 x 138 x 60 | 113 x 228 x 60 | 143 x 80 x 60 | 130 x 75 x 36 |
1) 250 kHz option only available with CameraLink
2) USB3 available with Developer’s Kit
3) Assuming flattop SLED profile
4) EAGLE OCT-S-90
5) EAGLE OCT-S-M-90
6) 1024 pixels binning
EAGLE C-OCT-S-90
EAGLE C-OCT-S-90 Home / Products / OEM Spectrometers [...]
EAGLE OCT-S-40
EAGLE OCT-S-40 Home / Products / OEM Spectrometers [...]
EAGLE Raman HR 532
EAGLE Raman HR 532 Home / Products / [...]
EAGLE Raman HR 785
EAGLE Raman HR 785 Home / Products / OEM [...]
EAGLE OCT-S-90
EAGLE OCT-S-90 Home / Products / OEM Spectrometers [...]
EAGLE OCT-S-140
EAGLE OCT-S-140 Home / Products / OEM Spectrometers [...]
EAGLE Raman-S
EAGLE Raman-S Home / Products / OEM Spectrometers / [...]
Ibsen as your spectrometer manufacturer
At Ibsen, we understand that volume manufacturing of application-specific spectrometers is a completely different task than building a single scientific instrument. We are an ISO 9001 and 13485 certified manufacturer with decades of experience in volume manufacturing of OEM spectrometers.
Our emphasis is on the high and consistent quality of our products, ensured through our proven, robust designs and 100% outgoing inspection. Our low unit-to-unit variation can help you achieve a lean manufacturing process and deliver products with a consistently high quality to your customers.
Our spectrometer designs have undergone environmental qualification to ensure proper operation within specified thermal, humidity, vibrational, and drop test conditions.
We have established long-term relationships with a range of qualified sub-suppliers, ensuring you a stable supply chain. Furthermore, we offer our OEM customers flexible supply options, typically based on frame order contracts or Kanban agreements.
All in all, Ibsen Photonics is a well-established spectrometer supplier that enables you to focus on your core business.
