FREEDOM HR-VIS / C-VIS

Home / Products / OEM Spectrometer / FREEDOM

Our compact high-resolution spectrometers offer the perfect balance between compactness and performance

FREEDOM HR offers the perfect balance between compact size and high resolution in your instrument design due to the use of Ibsen Photonics’ unique transmission grating technology. The spectrometer is robust and almost athermal and can operate under demanding environmental conditions.

Furthermore, the FREEDOM HR spectrometers support many different detector systems which enables you to choose the best detector option for your specific application. FREEDOM HR even allows you to re-use already developed electronics and software for your favorite detector type.

The Freedom C-VIS offers the best possible resolution due to a 4096 pixel detector.

Key features:

  • 360 nm to 830 nm wavelength range

  • Numerical aperture of 0.11

  • Resolution for HR-VIS / C-VIS: 0.5 nm/0.3 nm (typical)

  • Footprint of 61 mm x 64 mm x 19 mm

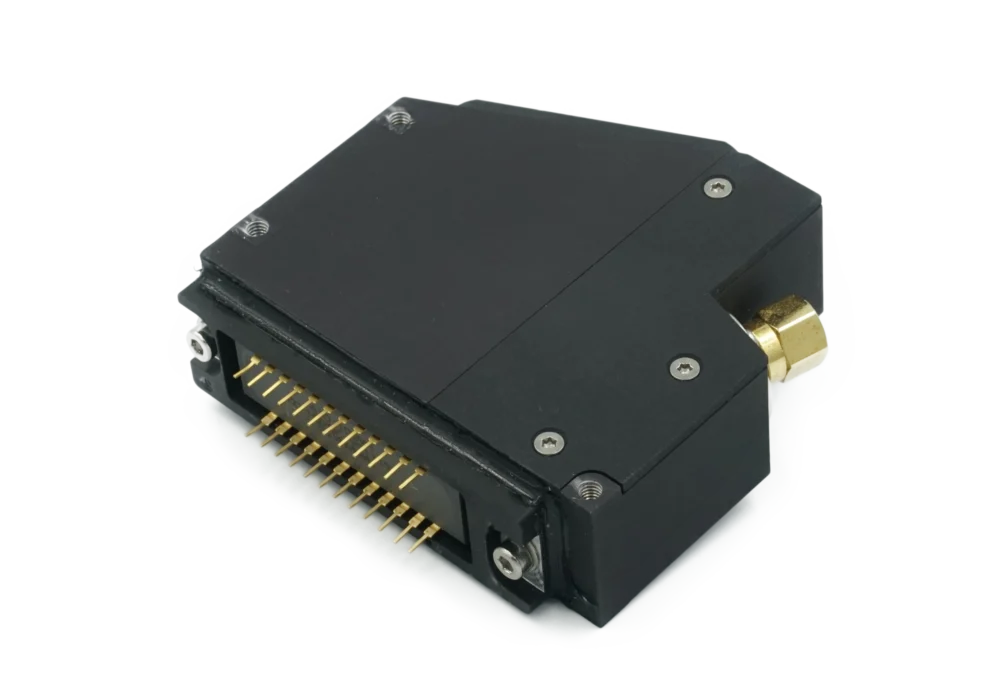

  • Photo of HR OEM spectrometer

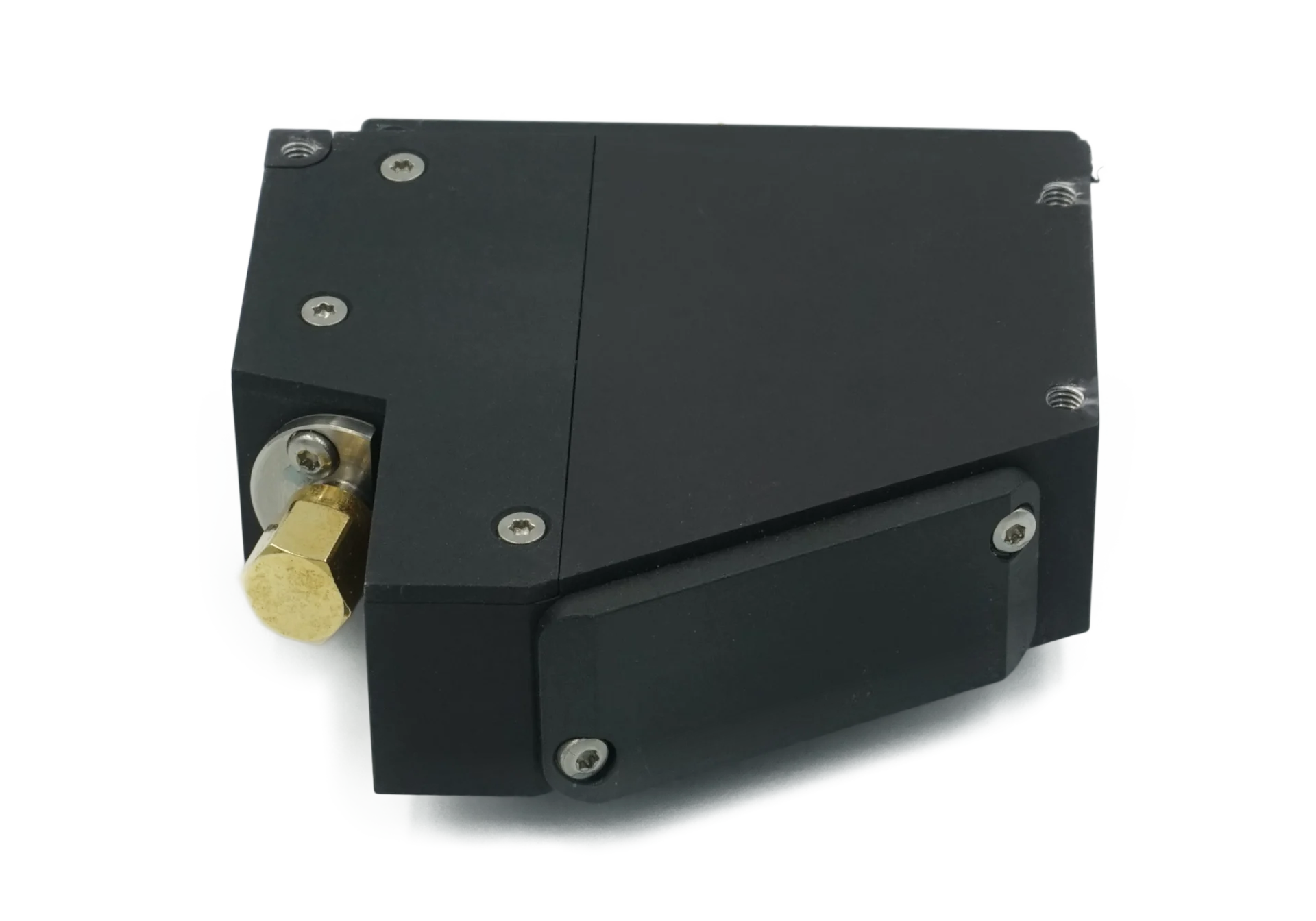

  • HR OEM spectrometer

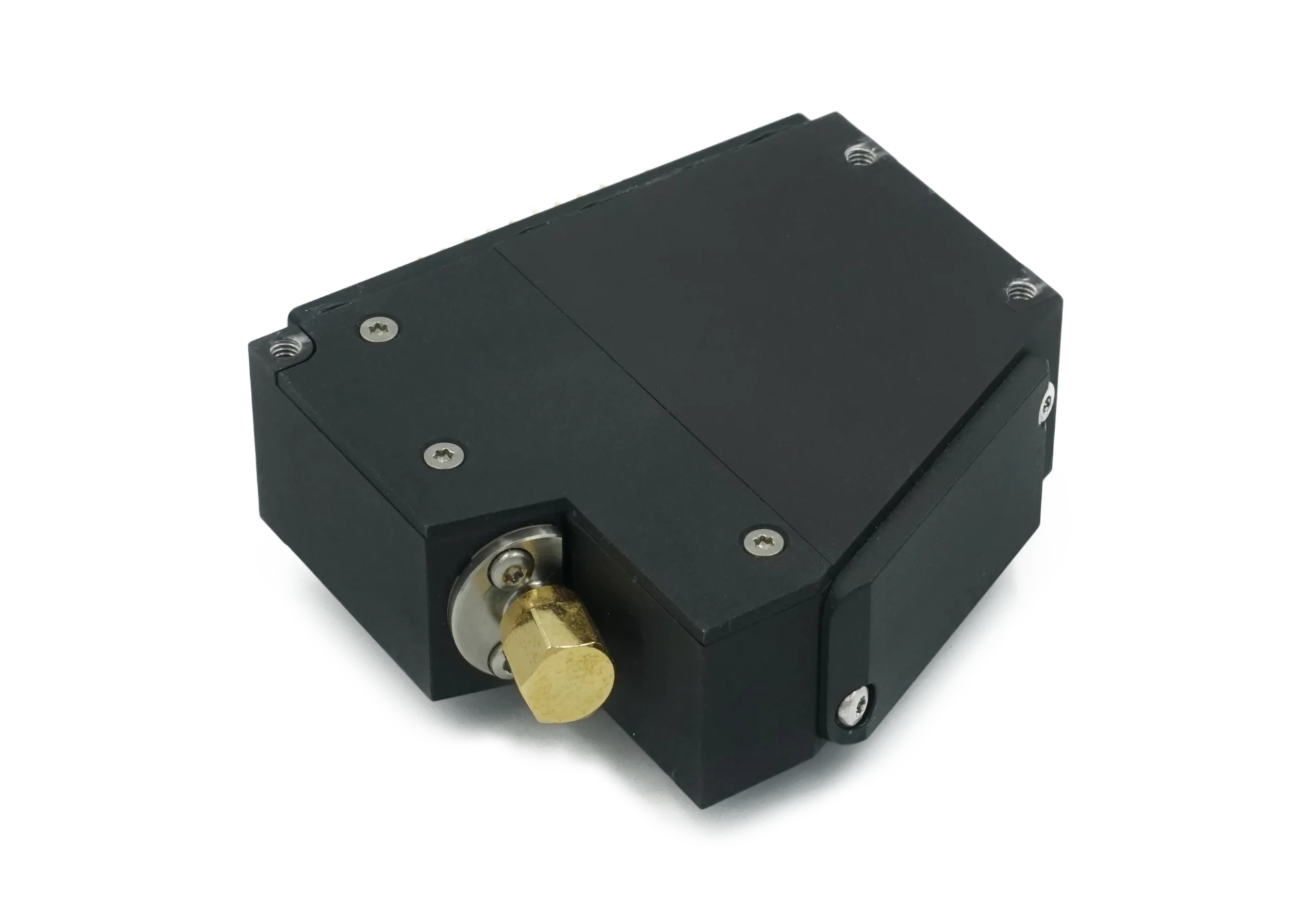

  • HR OEM spectrometer

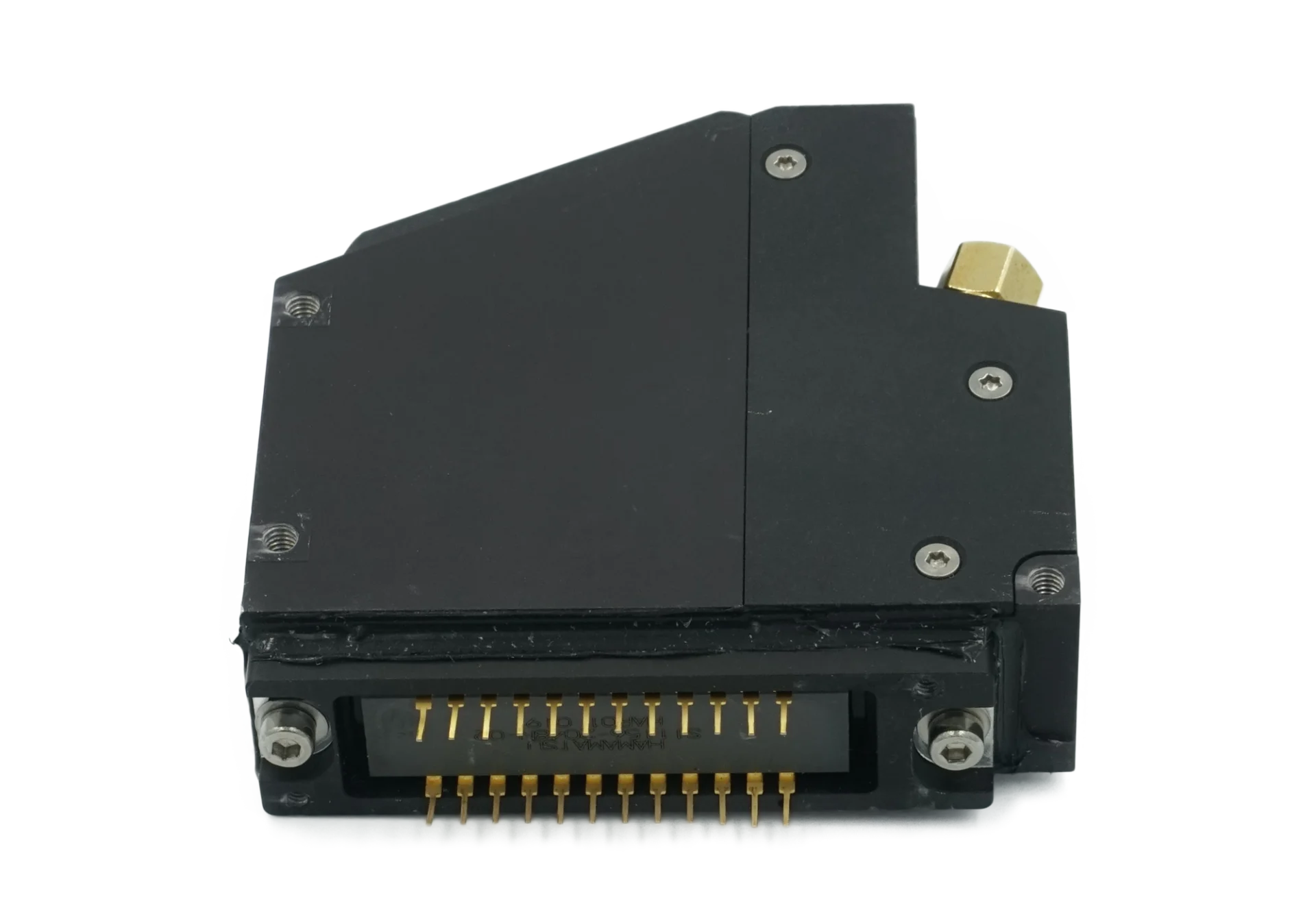

  • HR OEM spectrometer

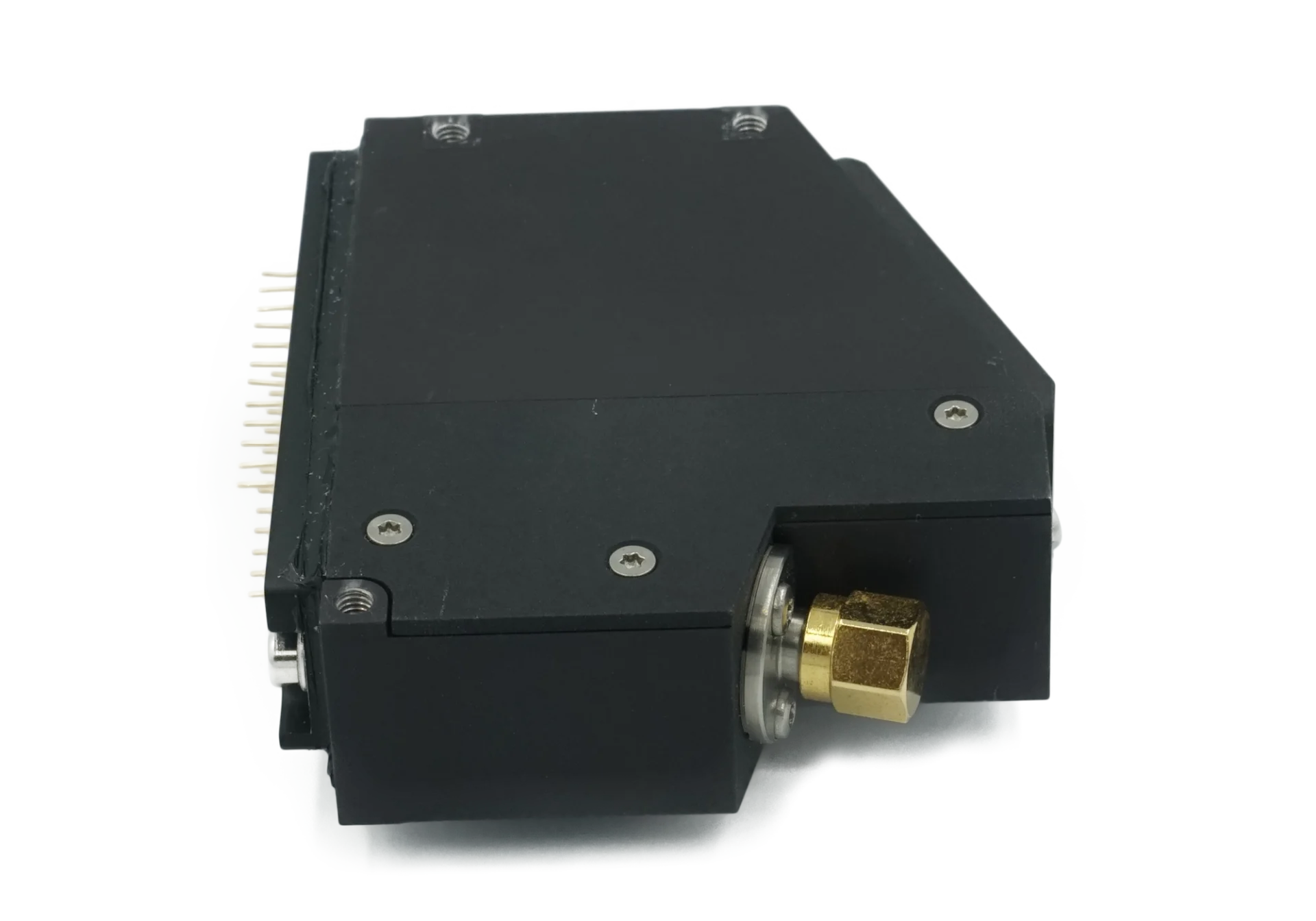

  • HR OEM spectrometer
ProductDetectorBenefit
FHV-101Hamamatsu S11639-01 CMOSCost effective, high sensitivity
FCV-109Hamamatsu S13496 CMOSBest resolution
FHV-315Hamamatsu S10420-1106-01 BT-CCDLow noise
FHV-380Hamamatsu S11156-2048-02 BT-CCDShort integration time

You can couple into your spectrometer both by free space or via fiber.

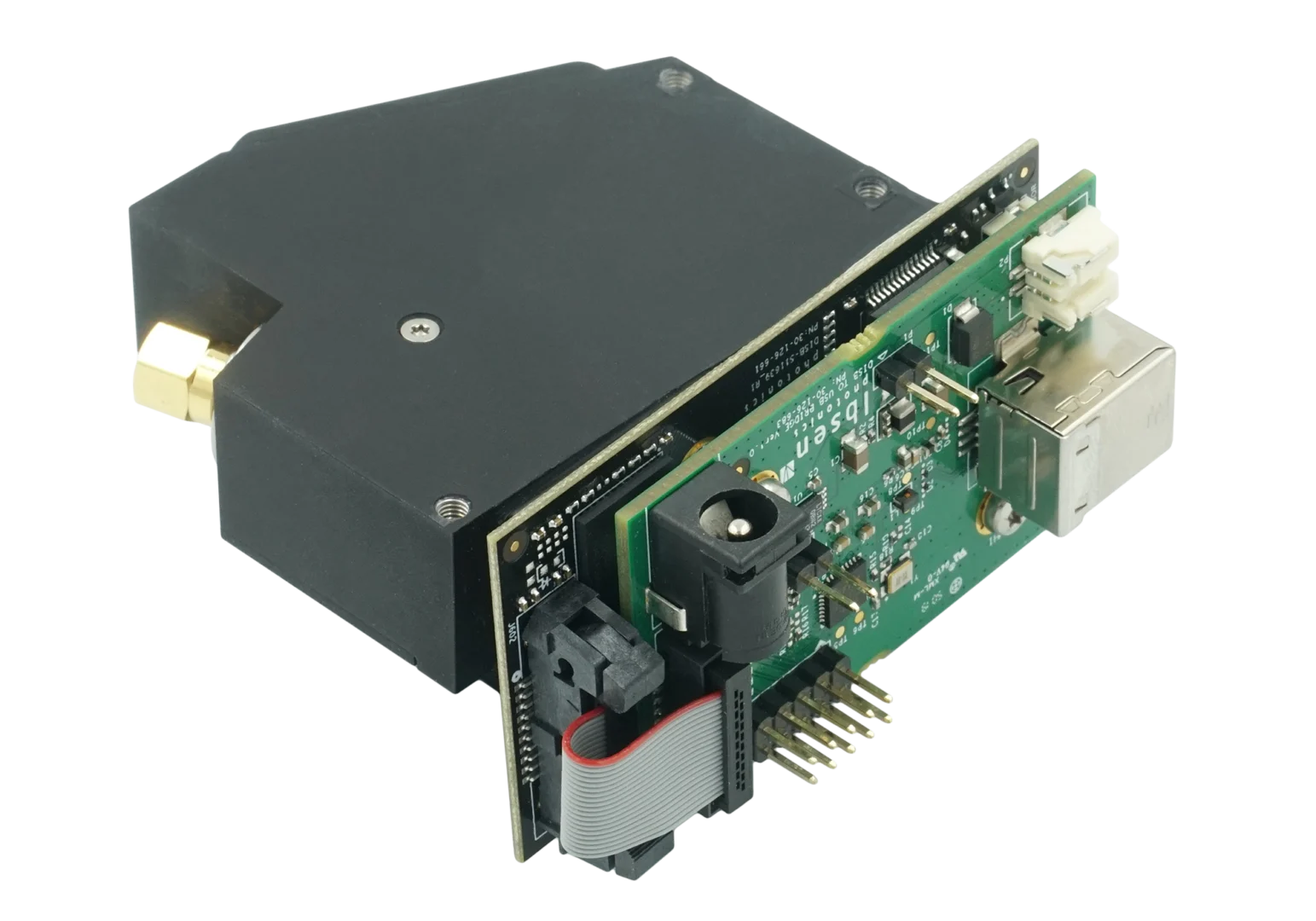

You also have several options for reading out over a standard interface like USB or SPI with our different electronics options, which you can see here.
