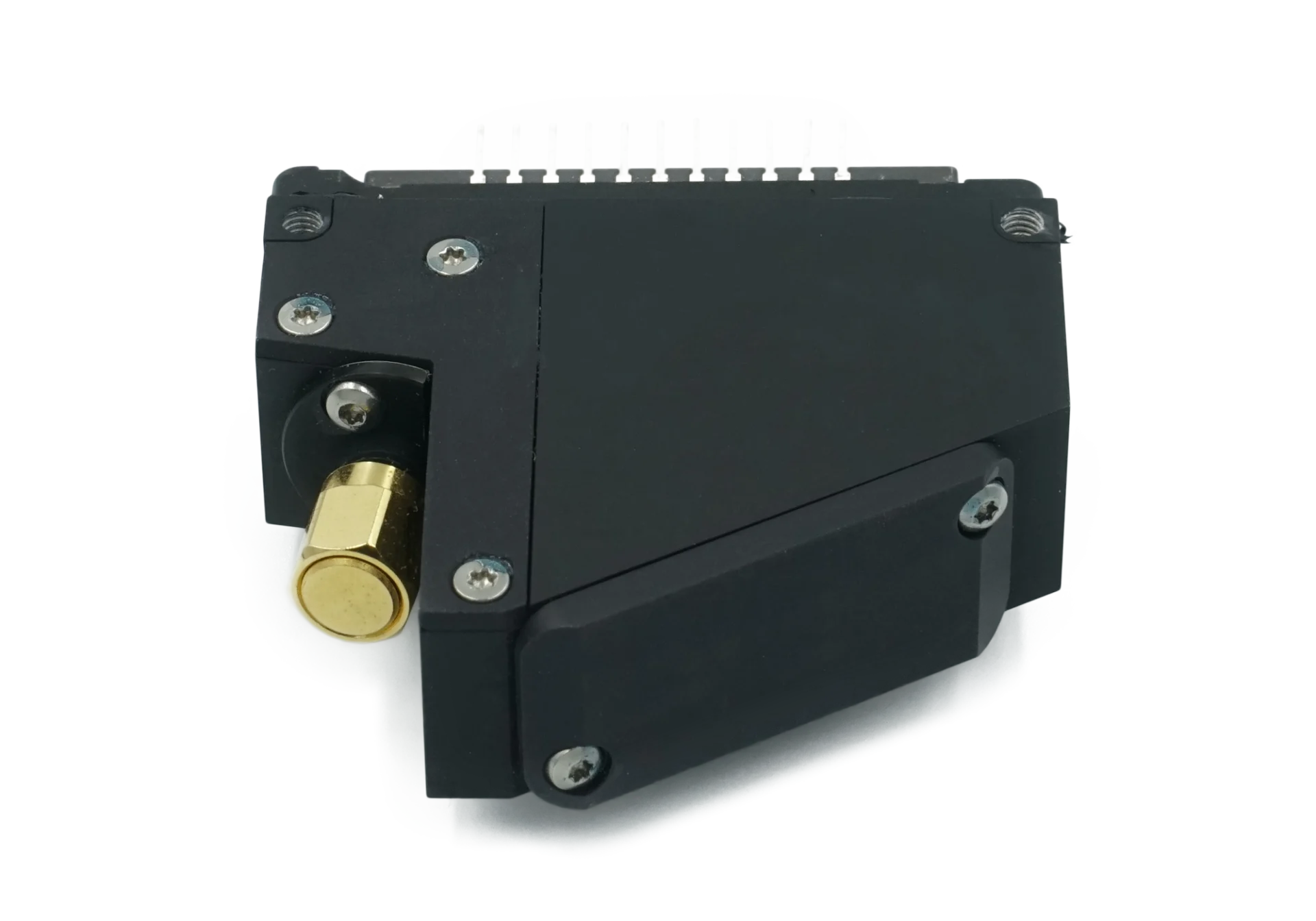

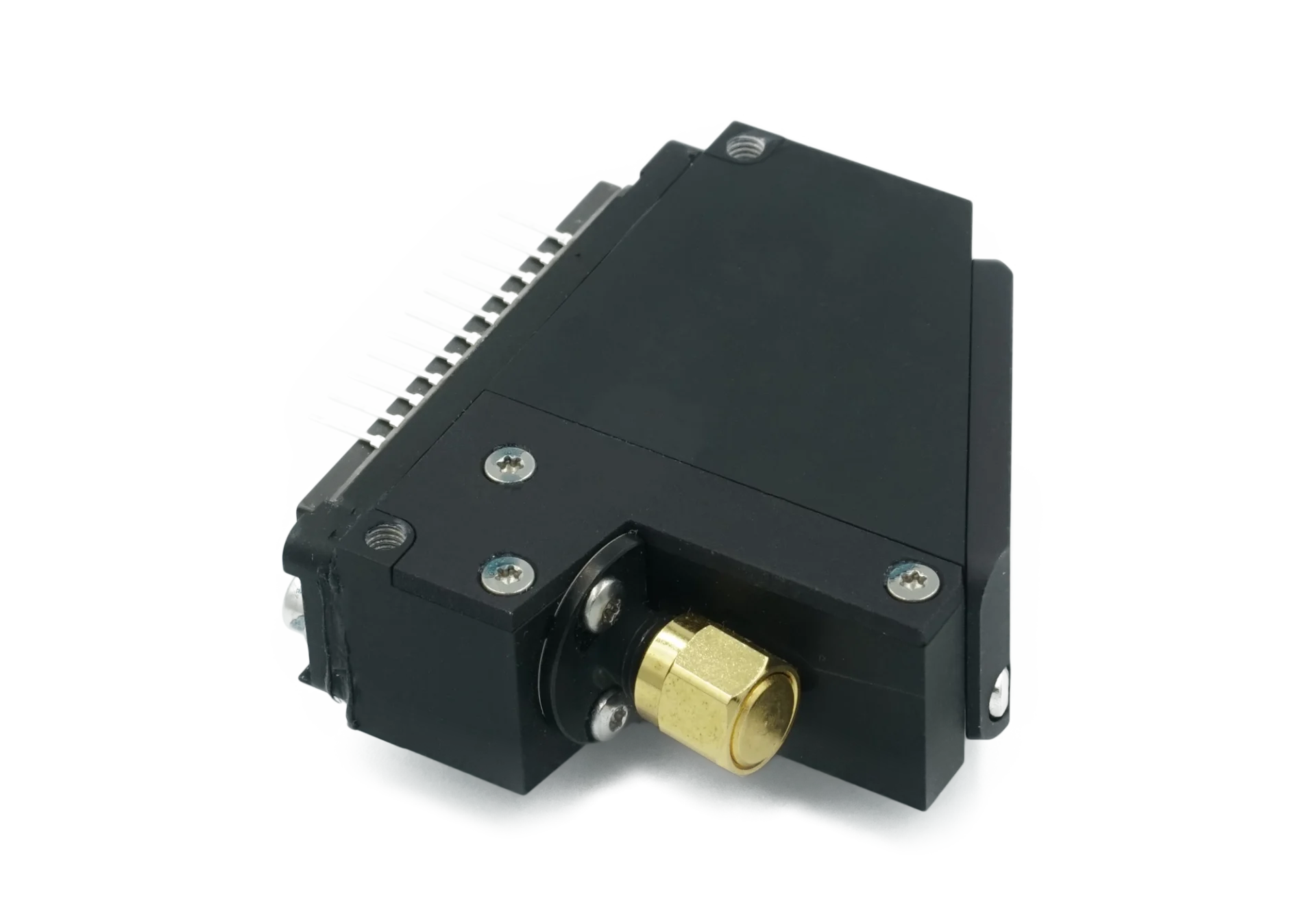

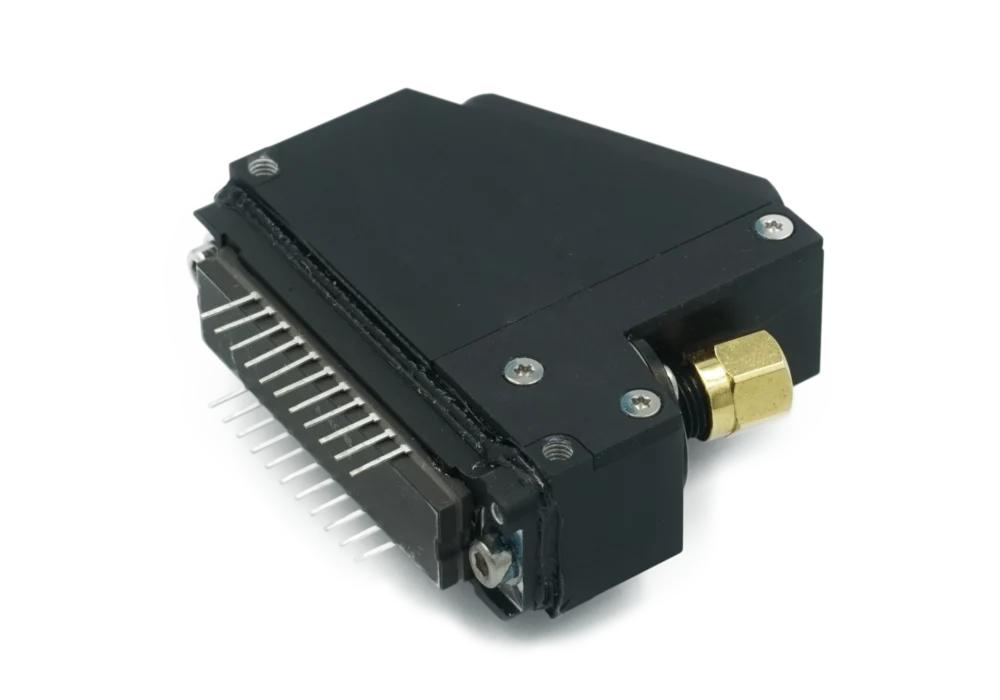

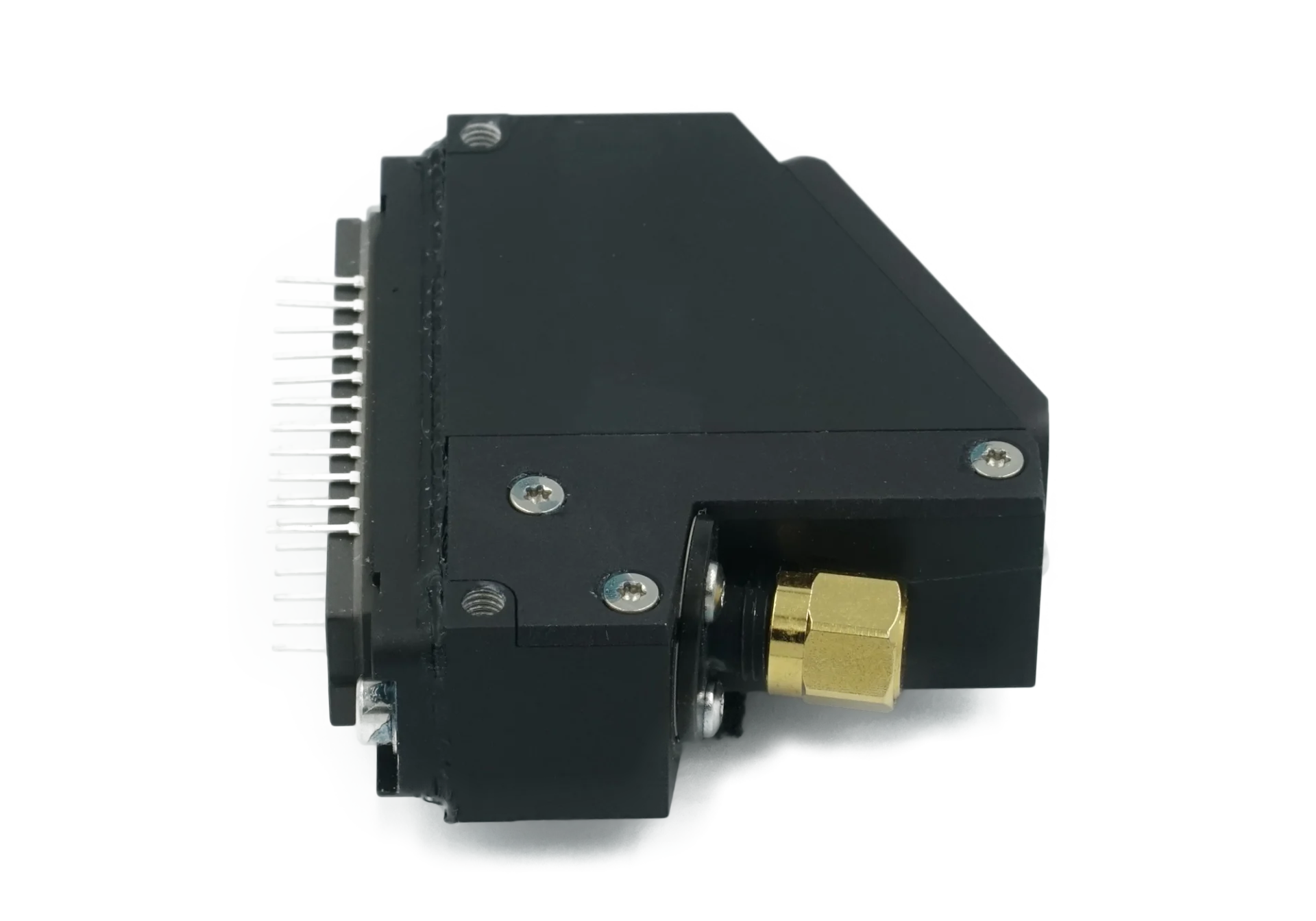

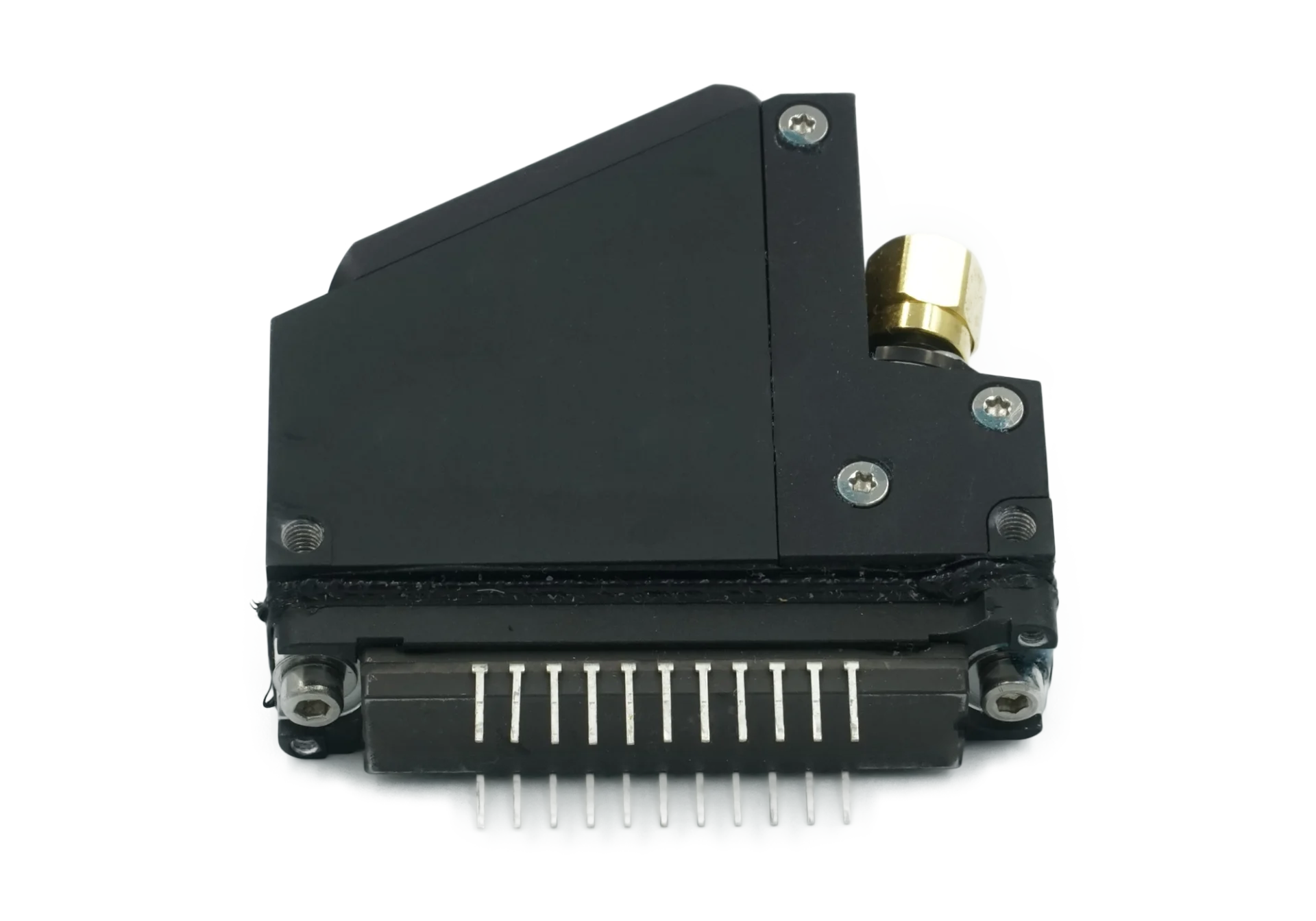

FREEDOM UV-VIS

Compact and cost-efficient OEM spectrometer modules for the 190 – 850 nm range
FREEDOM UVNIR
The FREEDOM UV-VIS spectrometers offer a compact and cost-efficient spectrometer module for OEM manufacturers of analytical instruments that do not want to sacrifice performance and robustness for compactness.

FREEDOM UV-VIS is built on a new transmission grating developed by Ibsen Photonics that provides high diffraction efficiency for both polarizations from 190-850 nm.

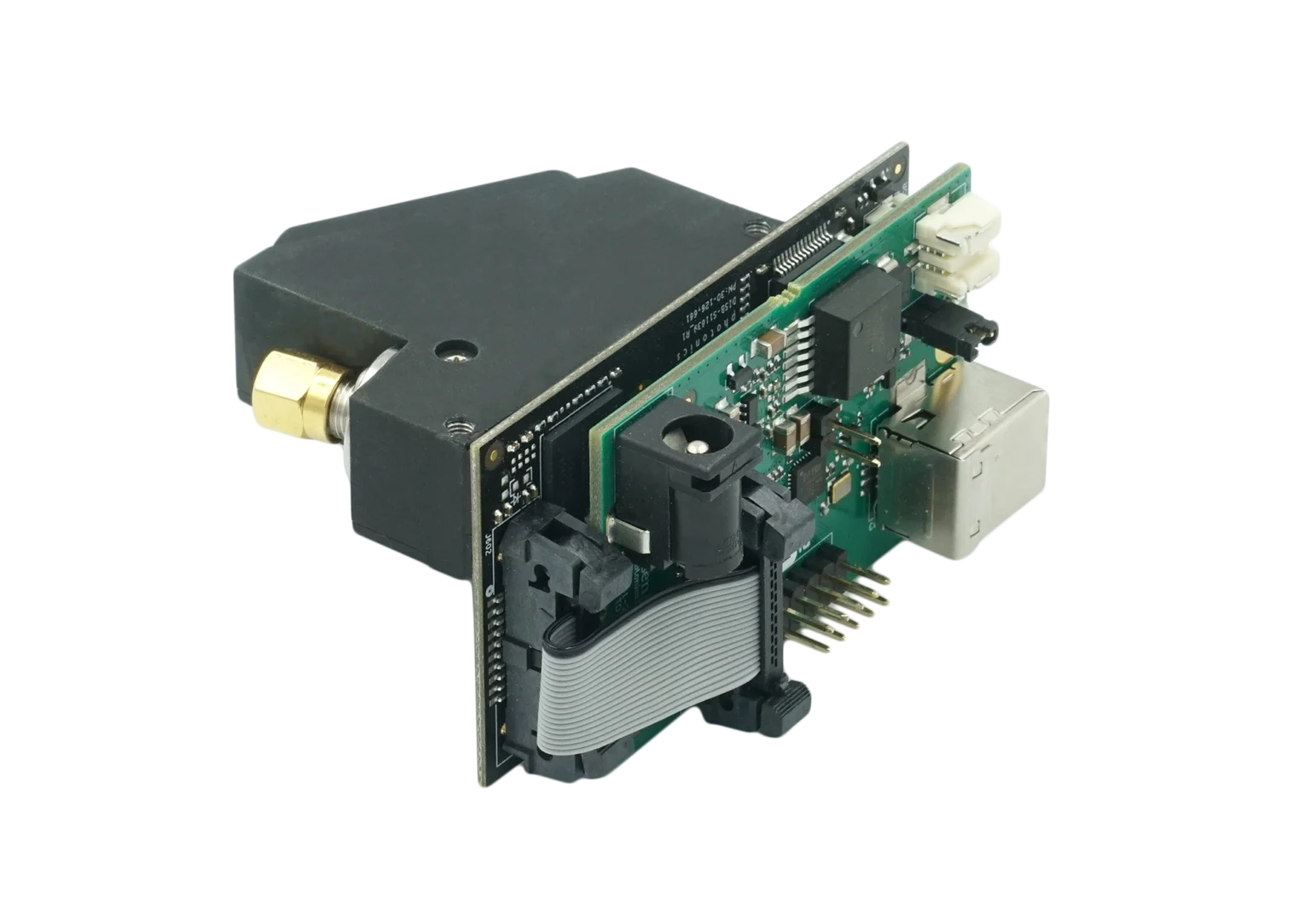

Furthermore, the FREEDOM UV-VIS spectrometers support many different detector systems which enables you to choose the best detector option for your specific application. FREEDOM even allows you to re-use already developed electronics and software for your favorite detector type.

Key features

  • 190 to 850 nm wavelength range
  • Numerical aperture of 0.15
  • Minimum resolution of 1.7 nm (FWHM)
  • High efficiency
  • Low polarization dependence
  • Footprint of 48 mm x 54 mm x 16 mm

Products

ProductDetectorBenefit
FSB-101Hamamatsu S11639-01 CMOSHigh UV sensitivity & cost effective
FSB-300Sony ILX511B CCDHigh VIS sensitivity & cost effective
FSB-315Hamamatsu S10420-1106-01 BT-CCDLow noise
FSB-380Hamamatsu S11156-2048-02 BT-CCDShort integration time

Download Product Sheets

pdf_icon FREEDOM UV-VIS 190 – 850 nm

Ordering

Request a quotation here for any of our FREEDOM spectrometers. If you have special requirements for resolution, detector, or wavelength range just enter those into the “Request quotation” form.
