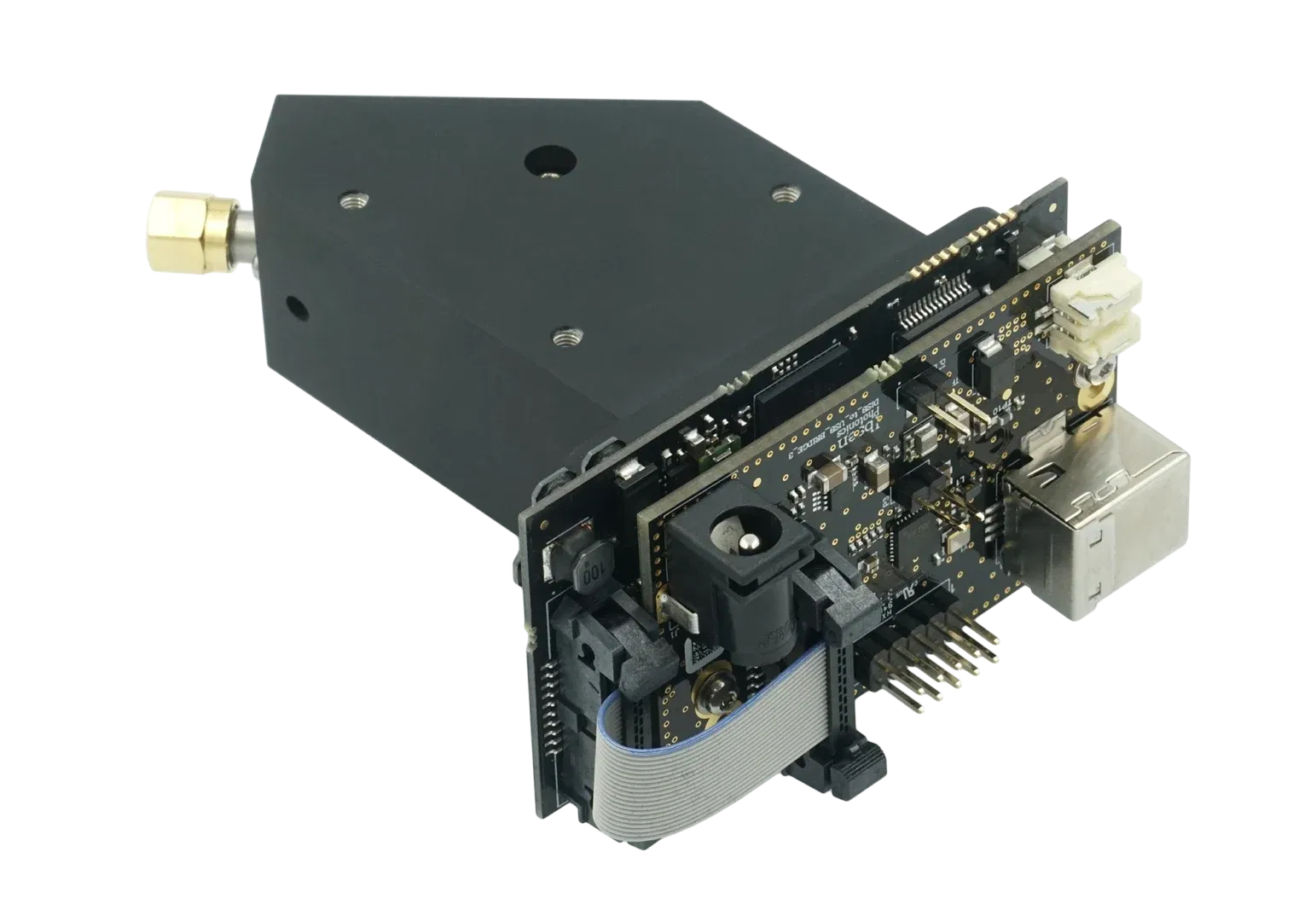

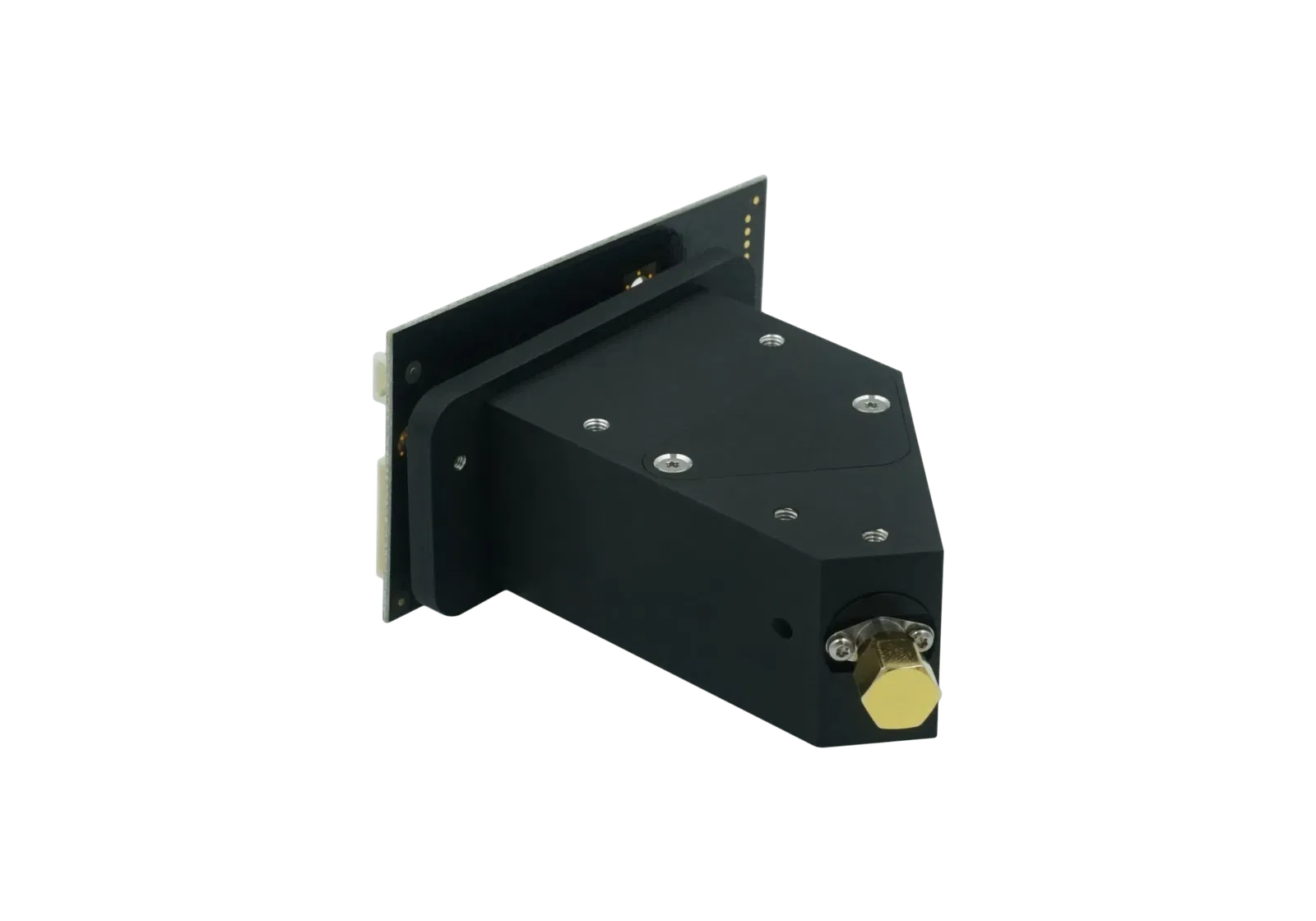

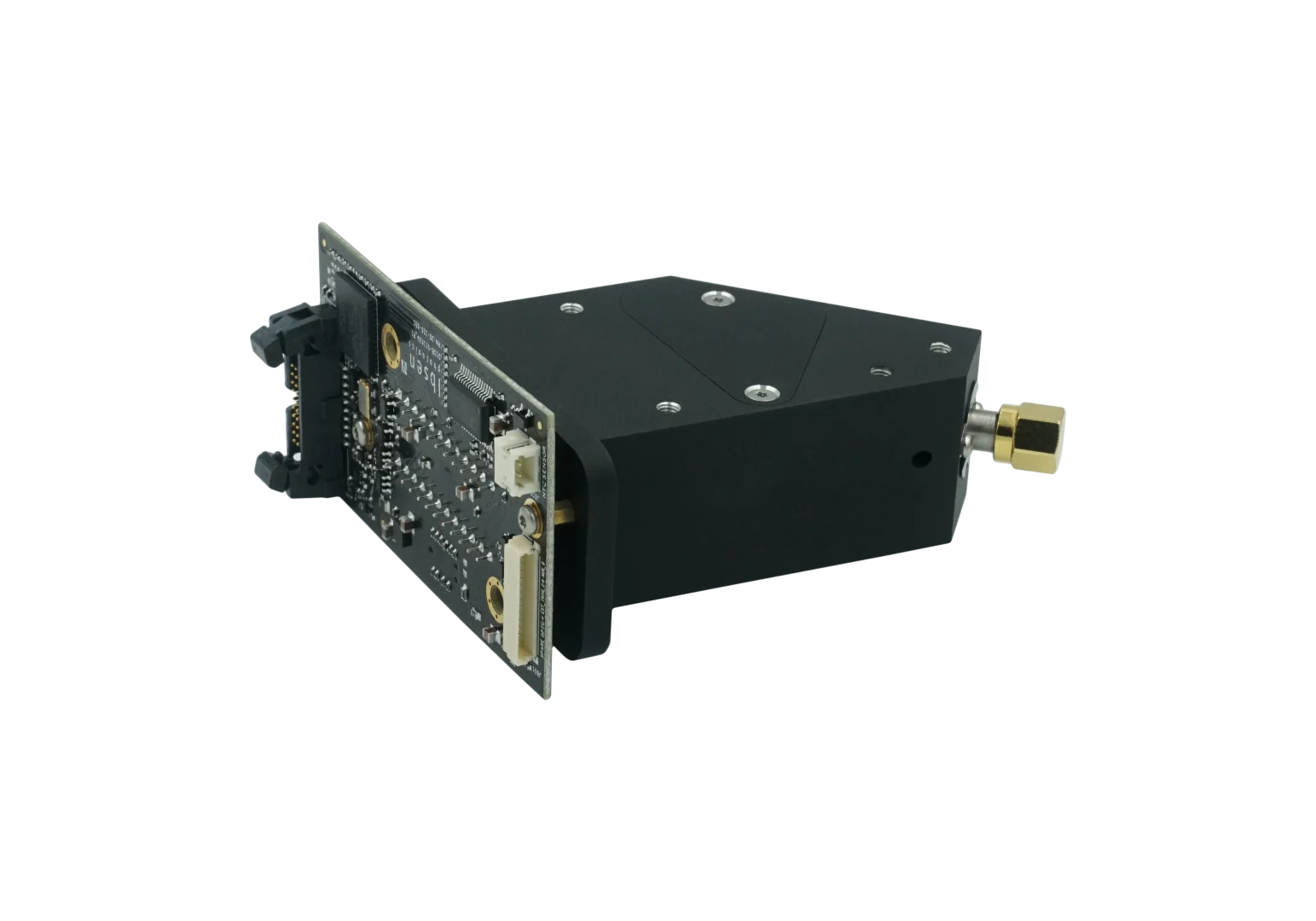

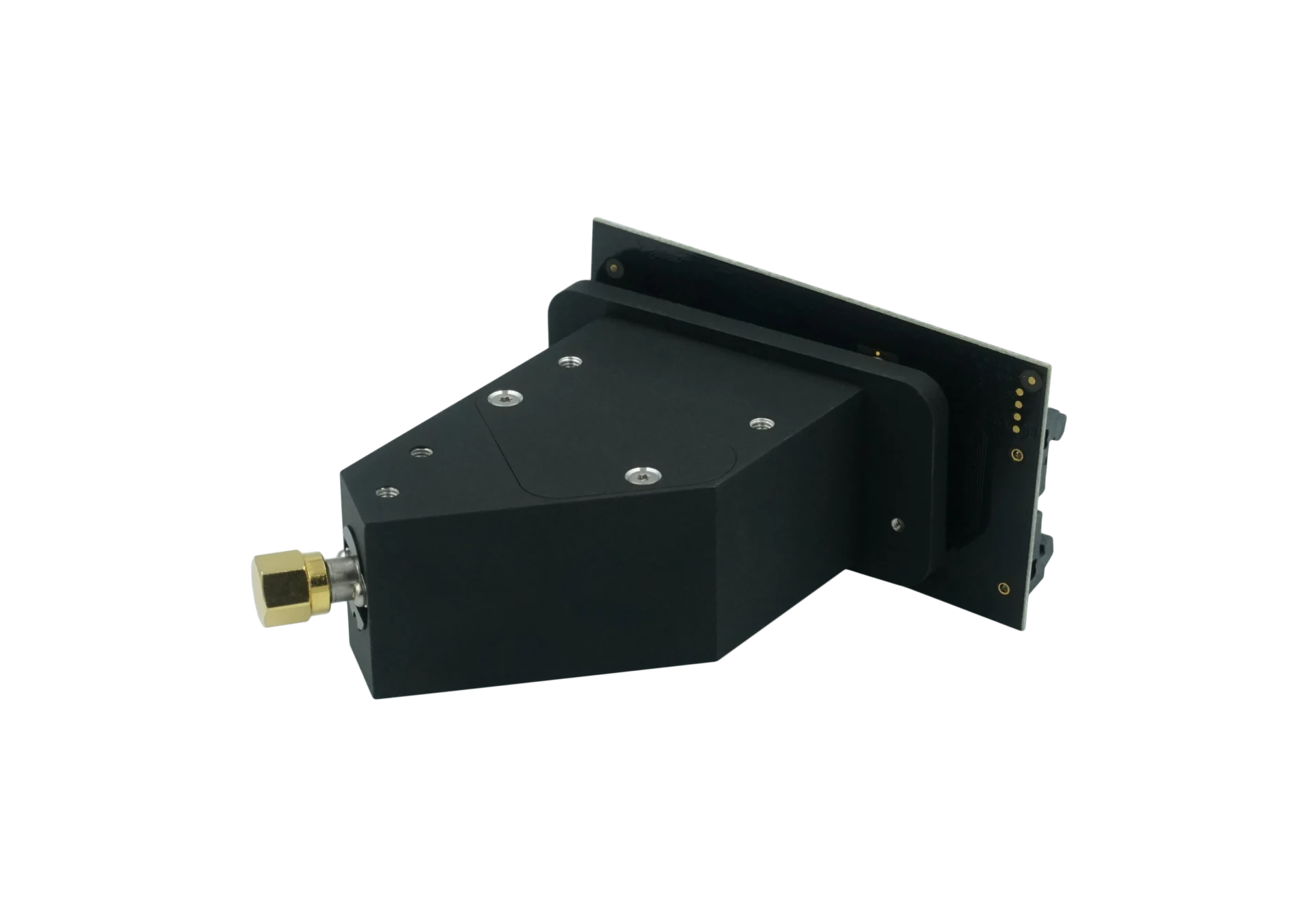

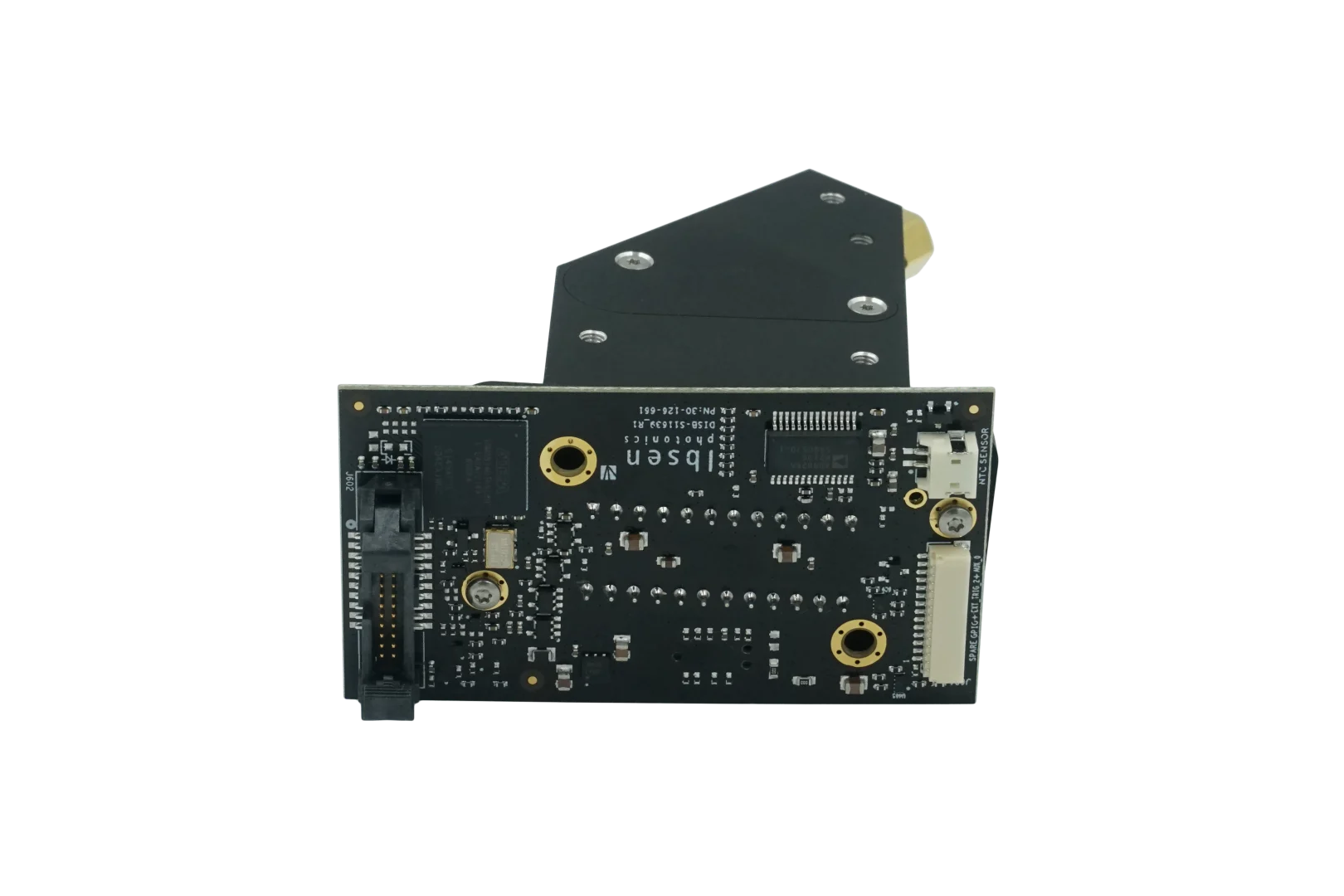

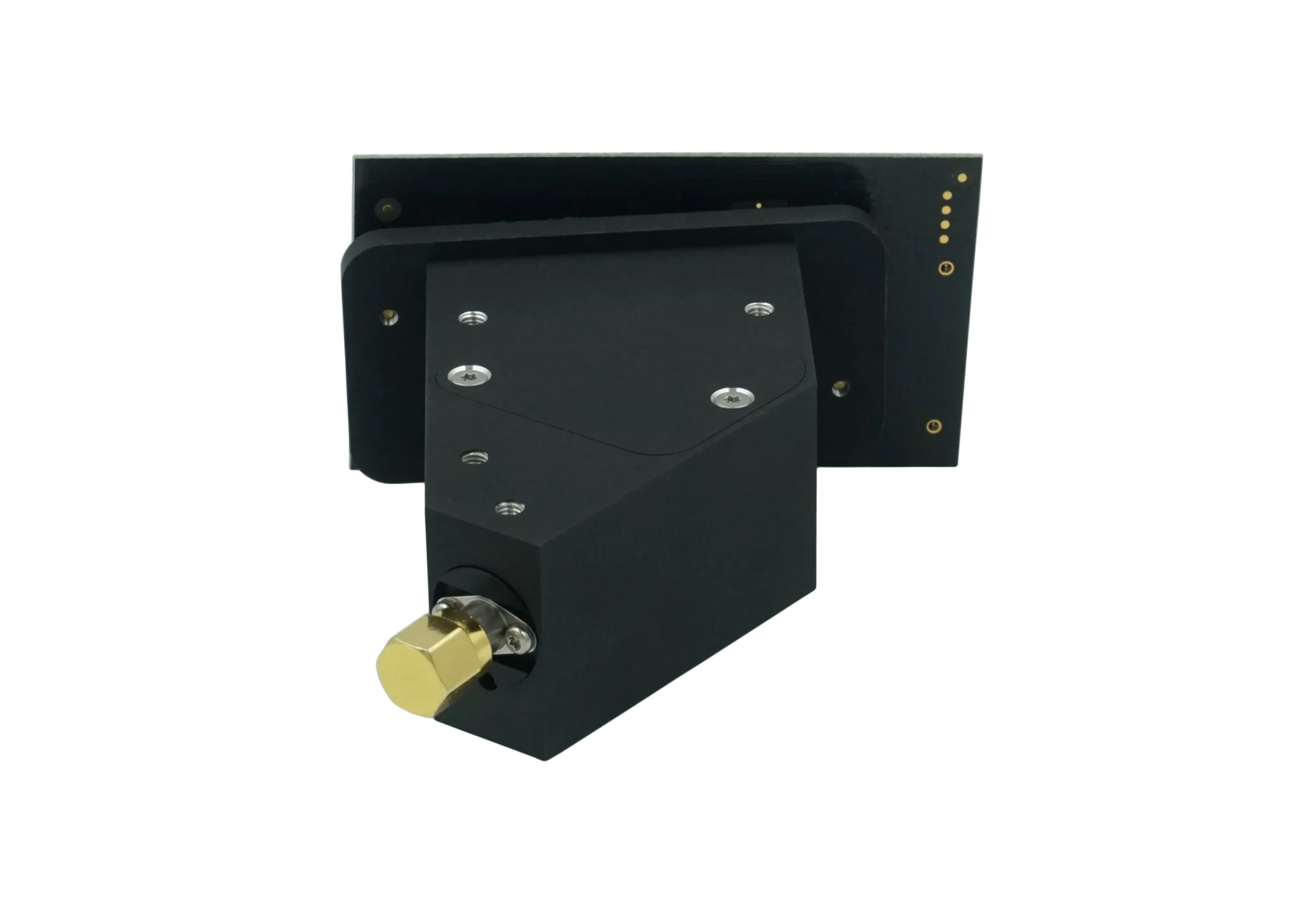

Compact ROCK VIS

Home / Products / OEM Spectrometer / ROCK

Compact high throughput and robust spectrometer modules for OEM integration

The compact ROCK VIS spectrometers offer the market’s highest throughput industrial-grade spectrometers. These benefits are accomplished by our highly efficient in-house manufactured transmission gratings and a high numerical aperture of 0.2 (f/2.5) nearly on-axis beam geometry in the optical bench.

The compact ROCK VIS spectrometers enable better sensitivity and/or lower optical light input power than traditional spectrometers.

Key features:

  • 360 nm to 830 nm wavelength range

  • Numerical aperture of 0.2

  • Resolution starting from <1 nm

  • Footprint of 75 mm x 50 mm x 30 mm

  • Symmetrical peak shapes

  • Athermal optical bench

ProductDetectorBenefit
RSV-101Hamamatsu S11639 CMOSCost effective, high sensitivity
RSV-305Hamamatsu S10420 CCDHigh sensitivity & low noise
RSV-380Hamamatsu S11156 CCDHigh sensitivity & short integration time

Download Product Sheets:

Compact ROCK VIS 360 – 830 nm

You can couple into your spectrometer both by free space or via fiber.

You also have several options for reading out over a standard interface like USB or SPI with our different electronics options, which you can see here.
