PING C-band telecom grating

Main characteristics:

  • Fused silica transmission gratings

  • Production technology: Holostepper (Holographic stepper) and RIE etching

  • C-band is defined as 1525 nm – 1565 nm (but can be OEM customized)

  • 100% dielectric materials – No polymers, epoxies, gelatins or metals

  • Grating chip thickness: 0.625 mm

  • Maximum operating temperature at least 500° C

  • Packaging: Packed in semiconductor grade Gelpak containers, sealed in class 10 cleanroom

PING-Sample-003
ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Production technologyHolographic/lithographic stepper and RIE etching
Grating resolution940 l/mm

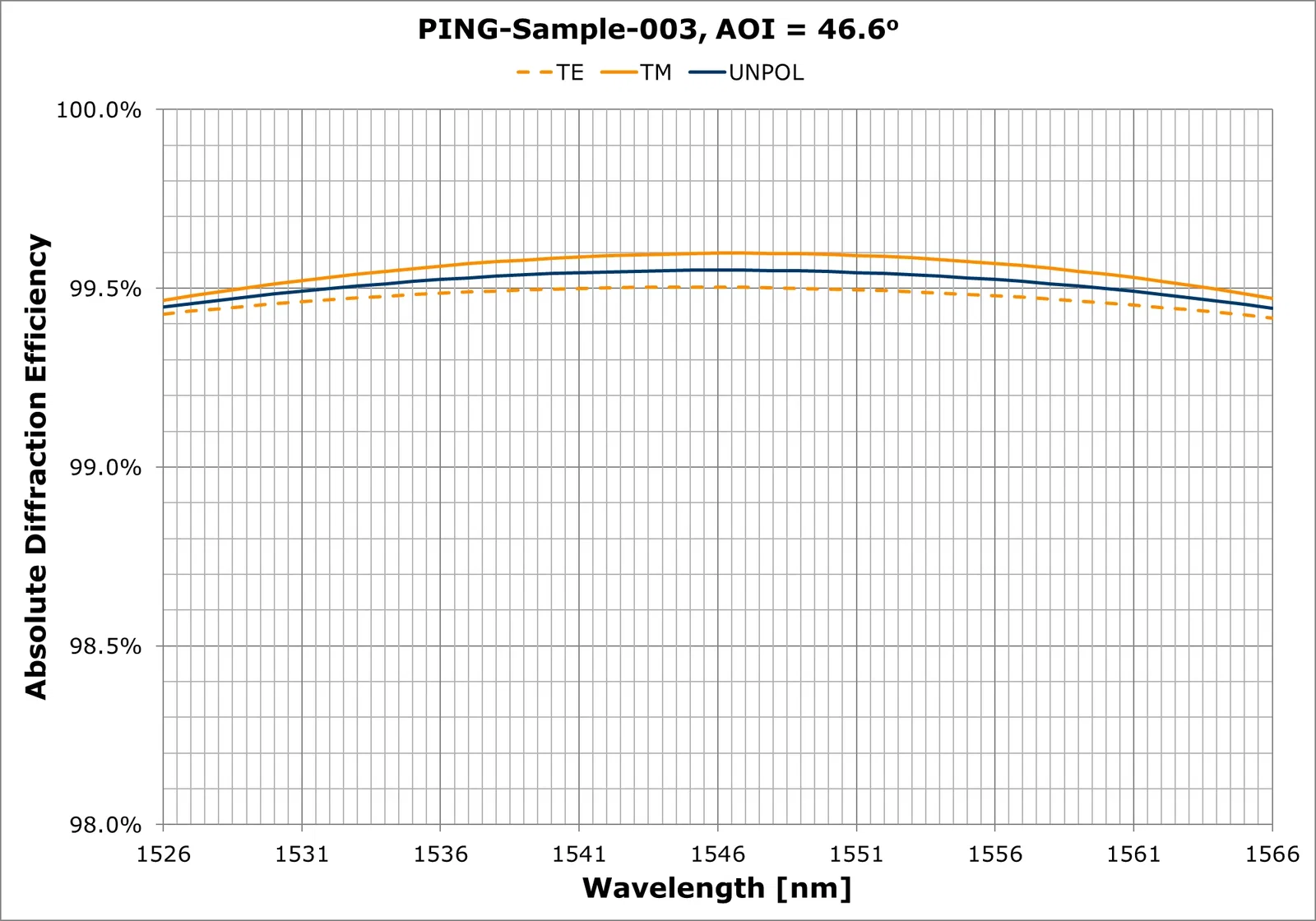

Illumination bandwidth1526 nm - 1566 nm

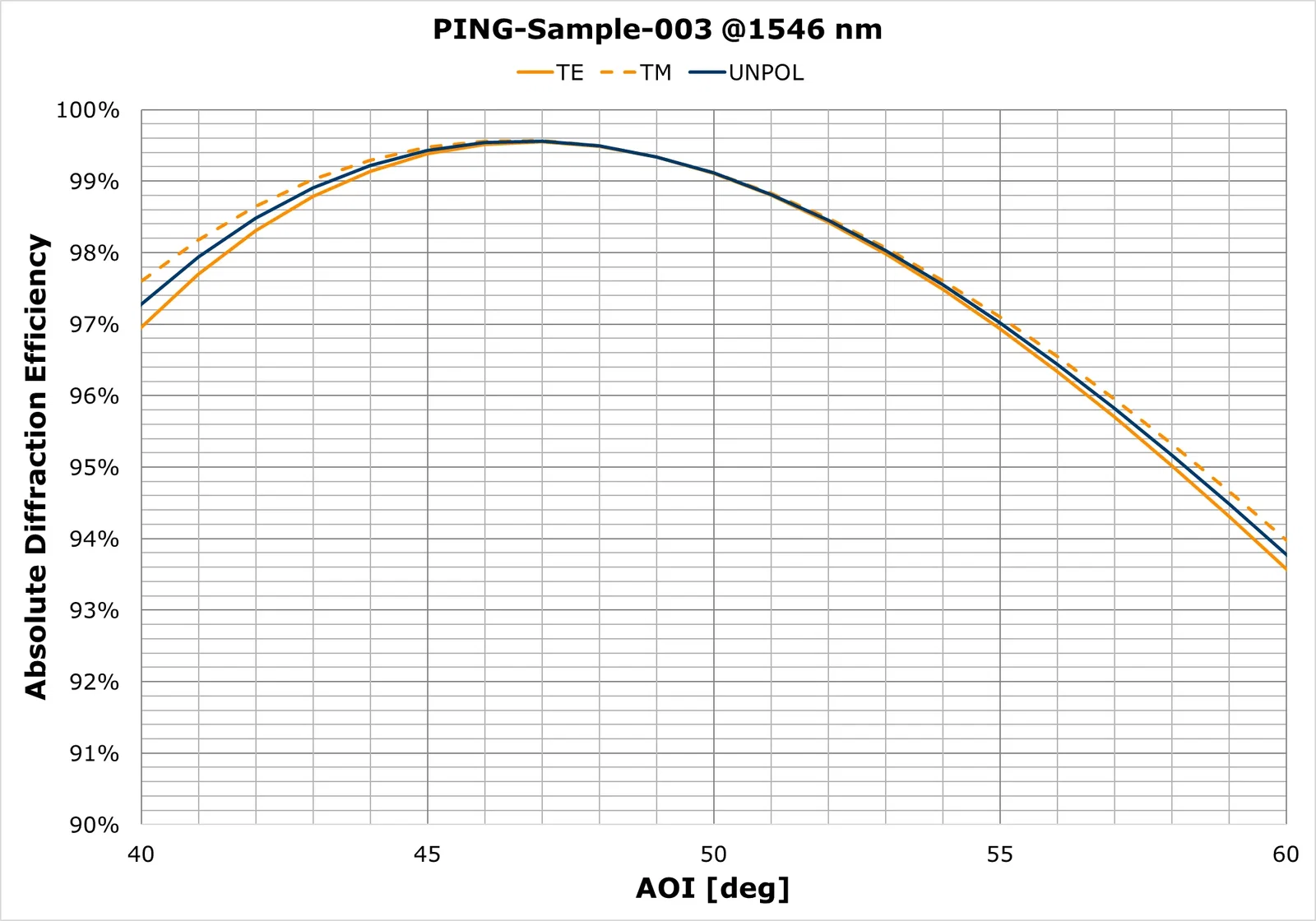

Angle of incidence46.6 deg (nominal - see plot below which shows great AOI tolerance)
Diffraction efficiency (TE & TM)> 90%
PDL< 0.25 dB
Materials100% dielectric materials
Grating area19 mm x 13.5 mm
Chip size21 mm x 15 mm
Chip thickness0.625 mm

We are also happy to work with you to design an optimal grating for your OEM requirements.

Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.
