PING S+C+L-band telecom grating

Main characteristics:

  • Fused silica transmission gratings
  • Production technology: Holographic / lithographic stepper patterning and RIE etching
  • S+C+L-band is defined as 1460 nm – 1620 nm (but can be OEM customized)
  • 100% dielectric materials – No polymers, epoxies, gelatins or metals
  • Grating chip thickness: 0.625 mm
  • Maximum operating temperature at least 500° C
  • Packaging: Packed in semiconductor grade Gelpak containers, sealed in class 10 cleanroom
ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Production technologyHolographic / lithographic stepper patterning and RIE etching
Grating resolution966.18 l/mm
Illumination bandwidth1460 nm - 1620 nm
Angle of incidence49.9 deg

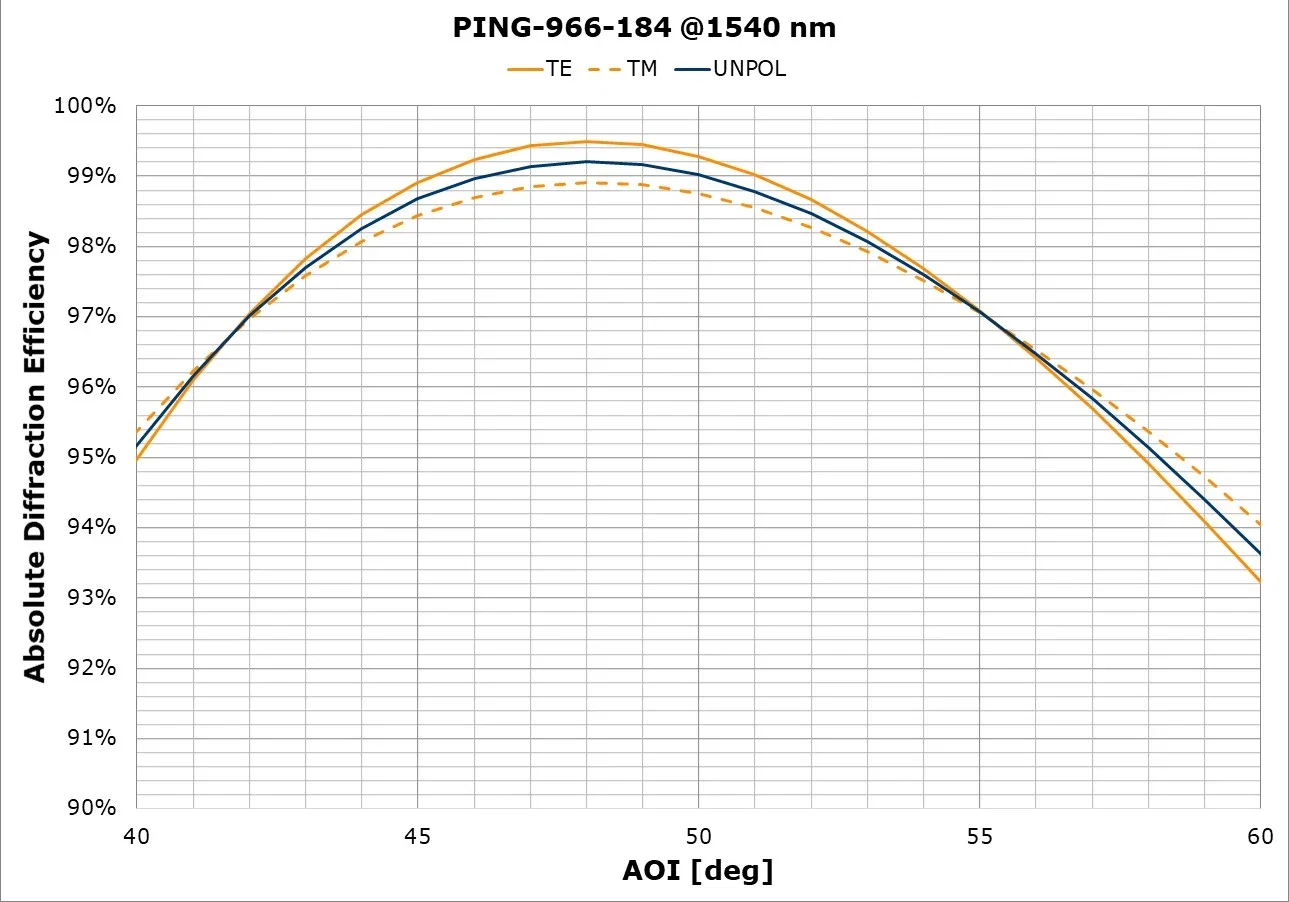

Diffraction efficiency (TE & TM)> 90%
PDL< 0.25 dB
Materials100% dielectric materials
Grating area19 mm x 13.5 mm
Chip size21 mm x 15 mm
Chip thickness0.625 mm

Download Product Sheets

Ibsen Product Sheets – PING-966-184d

We are also happy to work with you to design an optimal grating for your OEM requirements. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.
