PING C-band telecom grating

Main characteristics:

  • Fused silica transmission gratings

  • Production technology: Holostepper (Holographic stepper) and RIE etching

  • C-band is defined as 1525 nm – 1565 nm (but can be OEM customized)

  • 100% dielectric materials – No polymers, epoxies, gelatins or metals

  • Grating chip thickness: 0.625 mm

  • Maximum operating temperature at least 500° C

  • Packaging: Packed in semiconductor grade Gelpak containers, sealed in class 10 cleanroom

ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Production technologyHolographic/lithographic stepper and RIE etching
Grating resolution840 l/mm
Illumination bandwidth1524 nm - 1573 nm

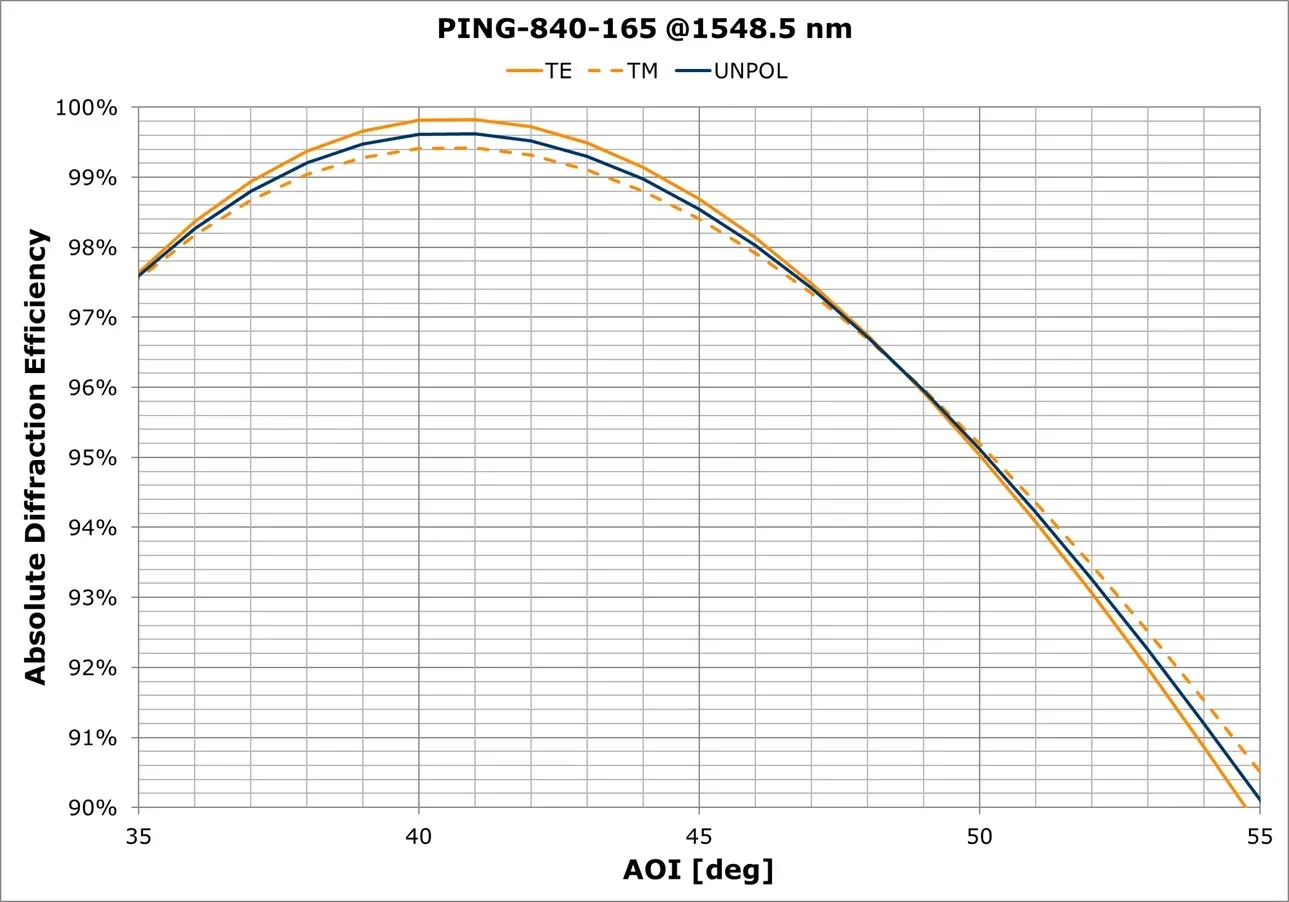

Angle of incidence45.5 deg (nominal - see plot below which shows great AOI tolerance)
Diffraction efficiency (TE & TM)> 92%
PDL< 0.3 dB
Materials100% dielectric materials
Grating area15 mm x 4.5 mm
Chip size16 mm x 5.5 mm
Chip thickness0.858 mm

Download Product Sheets

Ibsen Product Sheets – PING-840-165d

We are also happy to work with you to design an optimal grating for your OEM requirements. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€526,00

Quantity based pricing table

Min Max Unit Price
1 4 € 526.00
5 9 € 416.00
10 and more € 334.00
