PCG-560/2000-934

Home / Products / Transmission gratings / Pulse compression gratings

560 l/mm Transmission pulse compression grating for 2000 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-560-2000-934
Parameter Specification
Grating resolution560 lines / mm
Resolution accuracy+/- 0.1 line/mm
Central wavelength of operation2000 nm
Operating polarizationTE (s)
Dispersion0.039 degrees/nm @ 2000 nm
Incidence angleLittrow (34 degrees)

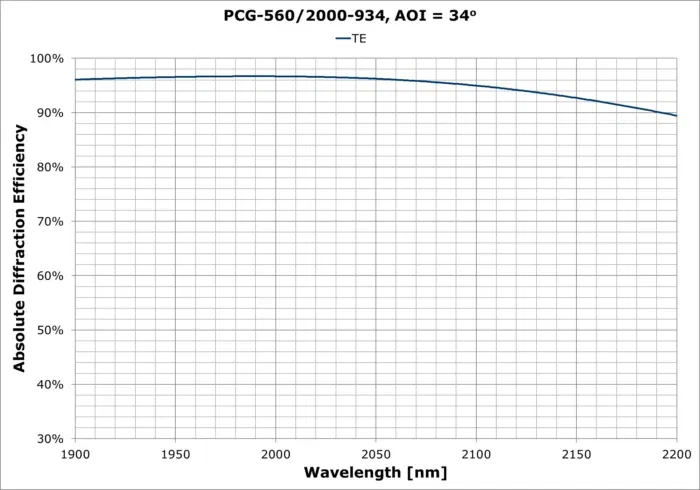

Diffraction efficiency>90% @ 2000 nm
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size40 mm x 20 mm
Substrate size45 mm x 25 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€2.995,00

Quantity based pricing table

Min Max Unit Price
1 4 € 2,995.00
5 9 € 2,495.00
10 and more € 1,995.00
