PCG-1379/1030-923

Home/Products/Transmission gratings/Pulse compression gratings

1379 l/mm Transmission pulse compression grating for 1030 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-1379-1030-923
Parameter Specification
Grating resolution1379 lines / mm
Resolution accuracy+/- 0.2 line / mm
Central wavelength of operation1030 nm
Operating polarizationTE (s)
Dispersion0.112 degrees/nm @ 1030 nm
Incidence angleLittrow (45.3 degrees)

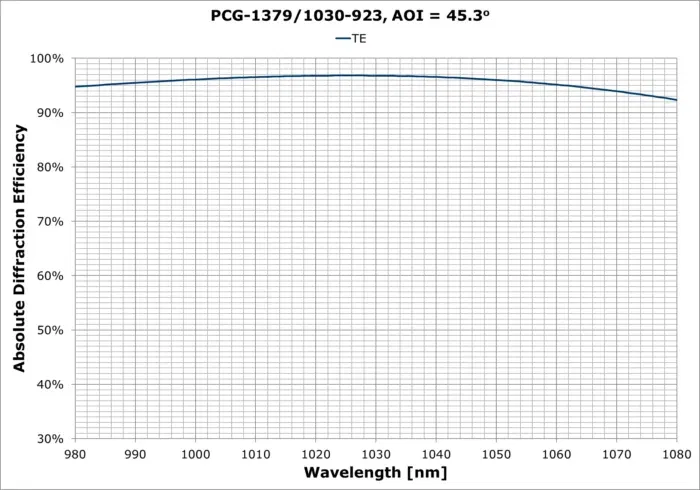

Diffraction efficiency>93% (@ 1030 nm)
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size26 mm x 13 mm
Substrate size30 mm x 17 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€2.995,00

Quantity based pricing table

Min Max Unit Price
1 4 € 2,995.00
5 9 € 2,450.00
10 and more € 1,995.00
