PCG-1250/1035-983

Home/Products/Transmission gratings/Pulse compression gratings

1250 l/mm Transmission pulse compression grating for 1035 nm wavelengths

Fused Silica Transmission Pulse Compression Gratings – unbeatable energy/power damage threshold combined with high-efficiency.

Features and benefits

  • 100% Fused silica gratings provide the highest energy/power damage threshold, also in the UV

  • Environmentally and thermally stable

  • High diffraction efficiency

  • Low wavefront distortion

  • Low stray light

PCG-1250-1035-983
Parameter Specification
Grating resolution1250 lines / mm
Resolution accuracy+/- 0.1 line/mm
Central wavelength of operation1035 nm
Operating polarizationTE (s)
Dispersion0.094 degrees/nm @ 1035 nm
Incidence angleLittrow (40.3 degrees)

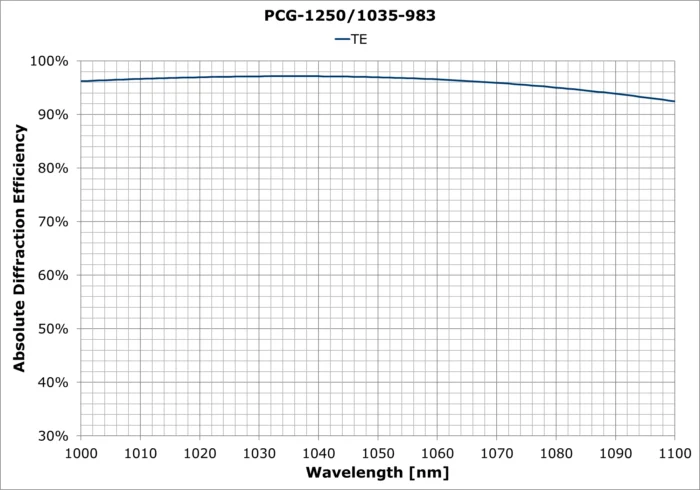

Diffraction efficiency>94%
MaterialUV grade fused silica plus dielectric back-side AR coating
Grating size6.5 mm x 3 mm
Substrate size11 mm x 5 mm
Substrate thickness 1 mm

For any other grating sizes or other customized parameters, please use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€995,00

Quantity based pricing table

Min Max Unit Price
1 4 € 995.00
5 9 € 795.00
10 and more € 595.00
