FSTG-NIR1500-903

Home / Products / Transmission gratings / Spectrometer gratings

Spectrometer grating for 815-1065 nm

Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers.

Features and benefits

  • Lithographic or holographic stepper patterning technology combines the highest quality of patterning with the reproducibility and cost level of replicated gratings

  • 100% Fused silica gratings provide unbeatable temperature stability, environmental tolerance and power damage threshold – also in the UV

  • Grating resolutions up to ~3000 l/mm

  • High diffraction efficiency with high dispersion

  • Low polarization dependence (PDL) over broad spectral ranges

  • Combined wavelength dispersion and folding elements

  • Multiple prototyping, small and high volume production technologies

  • Class 10 cleanroom production ensures low noise and high cleanliness – as well as a controlled environment for our metrology capabilities

  • Extensive grating metrology including proprietary period measurement systems, a versatile diffraction efficiency measurement system, a high resolution defect inspection system as well as AFM/SEM ensuring that agreed upon specifications are fulfilled

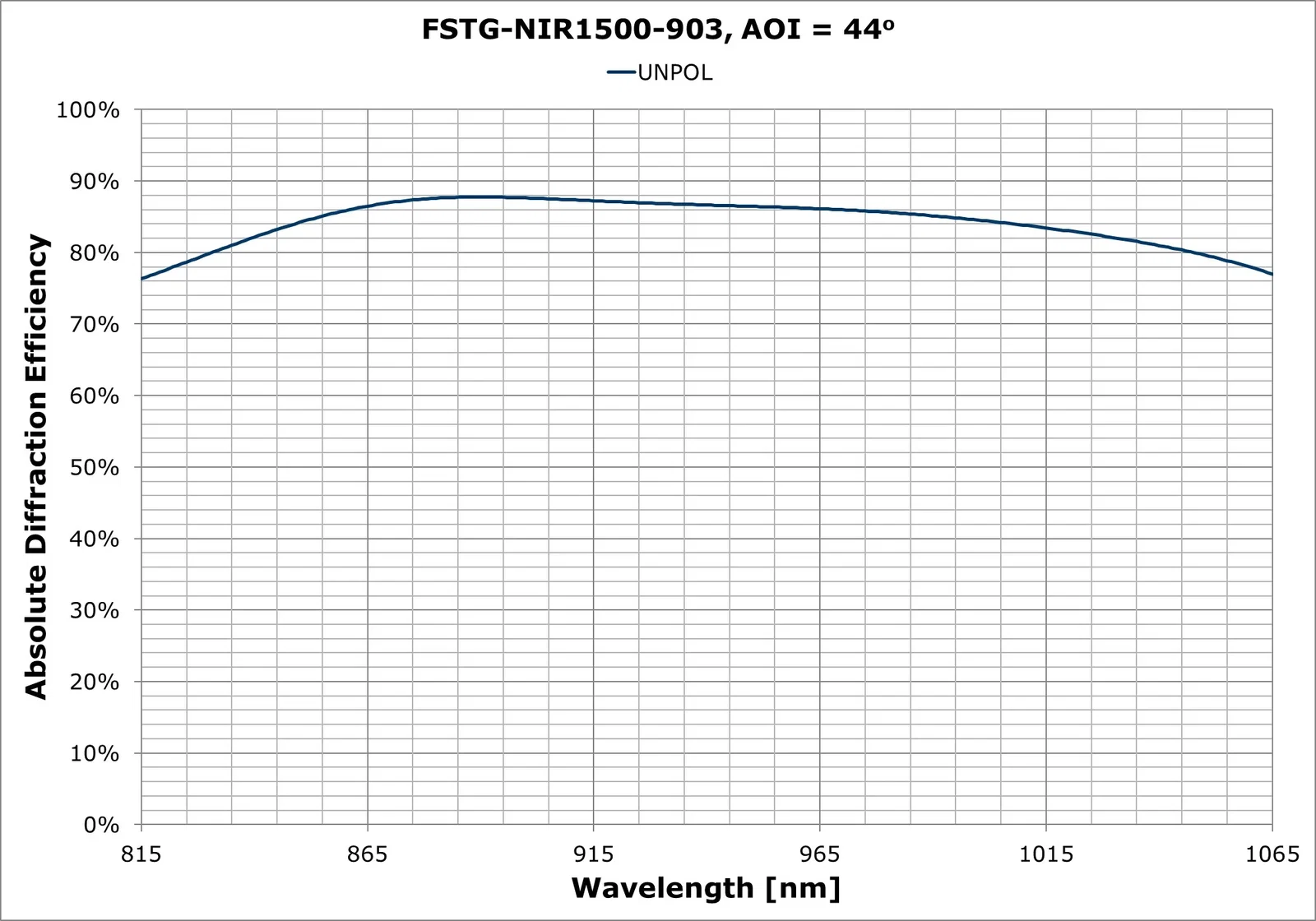

FSTG-NIR1500-903
ParameterSpecification
Grating technologySurface relief, etched transmission gratings
Grating resolution1500 l/mm
Illumination wavelength range815 nm - 1065 nm
Angle of incidence44 deg
MaterialsFused silica
Chip size19 mm x 15 mm
Grating area16 mm x 12 mm
Chip thickness1 mm

We are happy to discuss your requirements for customized gratings. Use the forms at the bottom of the page to specify your requirements for a discussion or quotation.

€600,00

Quantity based pricing table

Min Max Unit Price
2 and more € 500.00
