The effect of cooling CCD detectors for spectroscopy

Abstract

The main reason to cool a detector in a spectrometer is to reduce the dark current and thereby:

  • Reduce dark noise
  • Enhance the dynamic range
To benefit from cooling the detector performance must be limited by the dark current. In practice this means:
  • If you are interested in measurements with integration times longer than 100 ms there is an advantage in using a cooled detector if you work at or above room temperature.
  • Cooling to 0 degrees is sufficient for integration times up to 1 second and is feasible with a one stage TE cooler. Further cooling gives performance enhancement for integration times above 1 second however detectors become significantly more expensive if cooling below -10 °C is needed.

Introduction

Several detectors on Ibsen spectrometers can be equipped with thermoelectric (TE) cooling. Though this can have clear advantages for measuring low intensity signals, these detectors are costly and the cooling stage is bulky. It is therefore important to be able to decide what advantage the cooling offers for a specific application. The purpose of this document is to provide some real numbers that can help decide when cooling is advantageous for an application.

We discuss the temperature dependence of the dark level and dark noise of the commonly used Hamamatsu S7031-1007S back-thinned CCD detector that is read-out using a 16 bit AD converter on a dedicated electronics board [1]. The detector is mounted to a spectrometer however, as we pass no light into the spectrometer the tests we perform can be considered tests of the detector and electronics only.

A CCD detector is an integrating device, it accumulates the signal that is detected within the integration time that is chosen. The longer the integration time the higher the detected value will be. It is important to realize that the detected value does not only increase due to the signal (light) that hits the detector, but also due to dark current. This will be explained in more detail in the sections below.

Dark Level

The readout of a non-illuminated detector is not giving 0 counts. Instead there is some fixed lowest value that is measured even under completely dark conditions. This is called the dark level, and it should not be confused with the dark noise (see the next section). The dark level can be different per pixel and depends on the temperature, integration time of the detector and the electronics that reads out the detector and converts it to a digital value. Therefore, even if you have the specifications of the detector at hand it will be difficult to determine in advance what dark level to expect and what the noise on this dark level (the dark noise) will be. The dark level is determined by:

  • The offset introduced before the ADC conversion, this is also called baseline clamp or bias level. The offset is needed to prevent negative values after the AD conversion. The offset is independent of the integration time and temperature. Therefore, for most detectors and short integration times the main contribution of the dark level is given by this offset.
  • The dark current, this is the signal that is generated by thermal generation of electrons and holes. During a real measurement photons that are impinging on the detector will excite electrons and thereby generate a current. Unfortunately these electrons can also be excited spontaneously due to their thermal energy. This generates a dark current and as it is a thermal excitation it depends on the temperature of the sensor. The dependence can be expected to be proportional with e(-ΔE/kT). With k the Boltzman constant. The dark current accumulates over the integration time of the exposure and thus is more important for long integration times.
Figure 1 sketches what you expect to see if you have no light impinging on the detector and measure the detected value versus the integration time. For short integration times you will detect just the offset. For longer integration times the dark current will start to contribute to the offset.

Figure 1

Figure 1, a sketch of the dark level (on a logarithmic scale) for different integration times.

The measured dark level on the S7031 is shown in Figure 2. To obtain these results 100 measurements at different temperatures between -10 °C and 20 °C and integration times between 1 ms and 20 seconds were taken. Of each series the average signal over 792 of the 1024 pixels was calculated [2]. The results show that the dark level is basically constant near 1000 counts up to integration times of 50 ms. This is the regime where the dark current is so minimal that it does not contribute to the dark level. At longer integration times the dark current becomes important and thus also the need for cooling. In the most extreme case integrating for 20 seconds the dark current at room temperature (20 °C) is saturating the full range of the 16 bit AD conversion, making it impossible to do any useful measurement. Cooling the detector to -10 °C reduces the dark level to below 3000 counts, making it possible to also detect a signal.

Figure 2, average dark level for different integration times and detector temperatures.

Dark noise

The dark noise of a detector is the random fluctuation of the dark level in each pixel. It is calculated as the standard deviation of the dark level over 100 sequential measurements. We can distinguish the following relevant sources of noise:

  • Dark current noise (σdark)
  • Signal noise (σsig)
  • Readout noise (σread)

Together these contribute to the noise via the following relationship:

Dark level

For our current measurements without any light the noise of the signal can be ignored. To investigate the noise, the same measured set as presented in Figure 2 was used to obtain the noise. For this the per-pixel standard deviation was calculated (see inset of Figure 3) and the average of this over 792 pixels is plotted in Figure 3 [2]. It can be seen that up to 10 ms cooling has very little effect on the noise as it is dominated by the readout noise. However, for long integration times the noise can be significantly reduced by cooling to -10 °C.

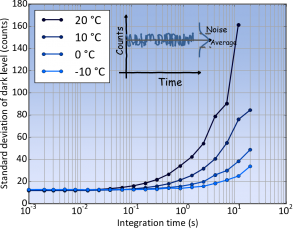

Figure 3, the standard deviation over 100 measurements of the dark level averaged over the wavelength range of the detector, measured for different temperatures and integration times. The inset shows how the per-pixel standard deviation is calculated from a time series of measurements.

Apart from the above noise sources that apply to every pixel separate there is also a fixed-pattern noise. This noise is the pixel-to-pixel variation in for instance sensitivity, and is thus rather constant in time: it will reproduce for measurements taken under the same conditions. The pixel-to-pixel variation in CMOS detectors for instance originates from the fact that each pixels has its own amplifier. Small variation in these amplifiers naturally leads to a characteristic fixed patter noise that can even be used to fingerprint cameras. Since this noise is stable over time it does not contribute to the time dependent noise we discuss in this document.

Dynamic range

The effect on temperature on dark level and dark noise in the end also comes back in the dynamic range that can be achieved with the detector. The dynamic range for 16 bit AD conversion we define as:
DNR
Its dependence on integration time and temperature is shown in Figure 4. For integration times of 1 second the dynamic range can be more than doubled by cooling the detector. This enables significant improvement in practical measurements.

Figure 4, the dynamic range for different temperatures.

Sensitivity

It should be noted that the sensitivity or quantum efficiency of detectors is also dependent on the temperature. Especially in the infrared the sensitivity decreases with lowering the temperature. The reason for this is that a thermally excited population of electrons is more easily excited above the bandgap. Especially for low energy infra-red photons the fact that the electrons are already excited helps in obtaining signal. It is therefore possible that while the dark level decreases also the signal level decreases. For the Hamamatsu S7031 detector this is not specified in the spec sheet [3] though it is mentioned. It can be found in Hamamatsu’s general image sensor handbook [4] where it is shown that at 900 nm the sensitivity coefficient is about 0.2 %/°C.

Conclusion

From the above measurements it can be concluded that the turn-over point for using cooling lies when integration times are approaching 0.1 to 1 second. For a real implementation it is always wise to test the spectrometer under the normal working conditions with different temperatures and analyze the SNR that is obtained in similar ways to which this was done in this document.

Summary

In summary, we have made a measurement of the temperature dependence of the dark level and noise of a cooled Hamamatsu S7031 detector. The choice for a cooled or non-cooled detector for your application depends on the following:

  • If you are interested in measurements with integration times longer than 100 ms there is an advantage in using a cooled detector if you work at or above room temperature.
  • Cooling to 5 °C degrees is sufficient for integration times up to 1 second and is feasible with a one stage TE cooler. Further cooling gives performance enhancement for integration times above 1 second however such detectors are significantly more expensive.

We hope you find this technical note useful and are happy to receive feedback and suggestions for improvement as well as ideas for future technical notes.

References

  1. JETI VersaPic
  2. The detector has 1024 pixels however we restricted the analysis to the range for which the EAGLE spectrometer we used is calibrated.
  3. The Hamamatsu S7031 spec sheet: https://www.hamamatsu.com/resources/pdf/ssd/s7030-0906_etc_kmpd1023e.pdf
  4. The Hamamatsu image sensor handbook: https://www.hamamatsu.com/resources/pdf/ssd/e05_handbook_image_sensors.pdf

Appendix

Table: Specifications of the used detector

DetectorHamamatsu S7031
TechnologyBack Thinned CCD
CoolingTE cooling
Number of pixels512 or 1024
Pixel width24 micrometer
Pixel height1.392 or 2.928 mm
Min. Integration time2 ms
Dynamic range8000:1
