XNIR Spectrometer grating for 1600-2500 nm

Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers.

Product Specifications

Grating technologySurface relief, etched transmission gratings
Grating resolution410 l/mm
Illumination wavelength range1600 nm - 2500 nm
Angle of incidence26.8 deg
MaterialsFused silica
Chip size10 mm x 13.2 mm
Grating area9.6 mm x 11 mm
Chip thickness1.0 mm

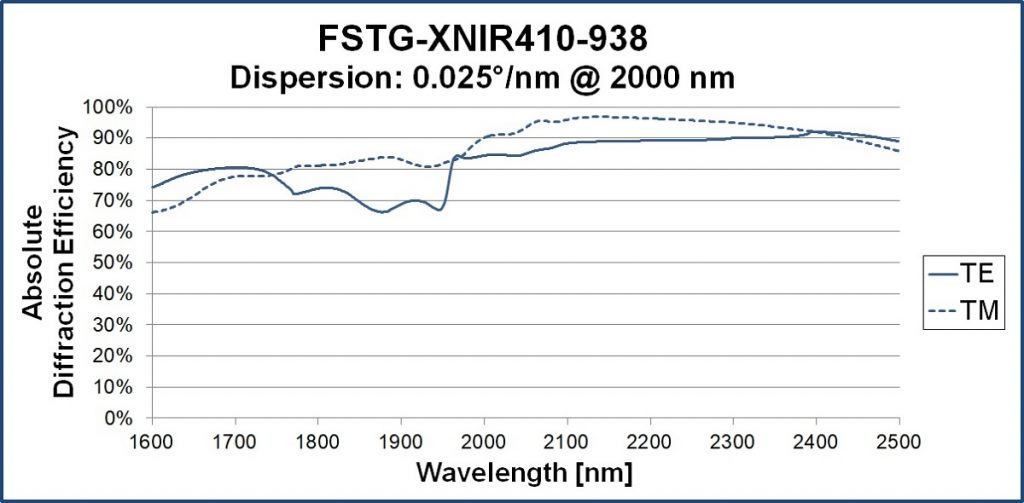

Typical Grating Performance

Download Product sheet

pdf_icon Spectrometer-Grating-FSTG-XNIR410-938


The FSTG-NIR410-938 is available for online purchase by either Credit Card or wire transfer, or you can contact us for a quotation.

Go to shop

Please contact us for volume pricing.

We are also happy to work with you to design an optimal grating for your OEM requirements. Click here to specify your requirements for a discussion or quotation.
