FSTG-XNIR410-937
XNIR Spectrometer grating for 1600-2500 nm
Fused silica transmission grating technology enables high resolution, high efficiency gratings that are ideal for compact spectrometers.
Product Specifications
| Parameter | Specification |
|---|---|
| Grating technology | Surface relief, etched transmission gratings |
| Grating resolution | 410 l/mm |
| Illumination wavelength range | 1600 nm - 2500 nm |
| Angle of incidence | 26.8 deg |
| Materials | Fused silica |
| Chip size | 10 mm x 13.2 mm |
| Grating area | 9.6 mm x 11.0 mm |
| Chip thickness | 0.625 mm |

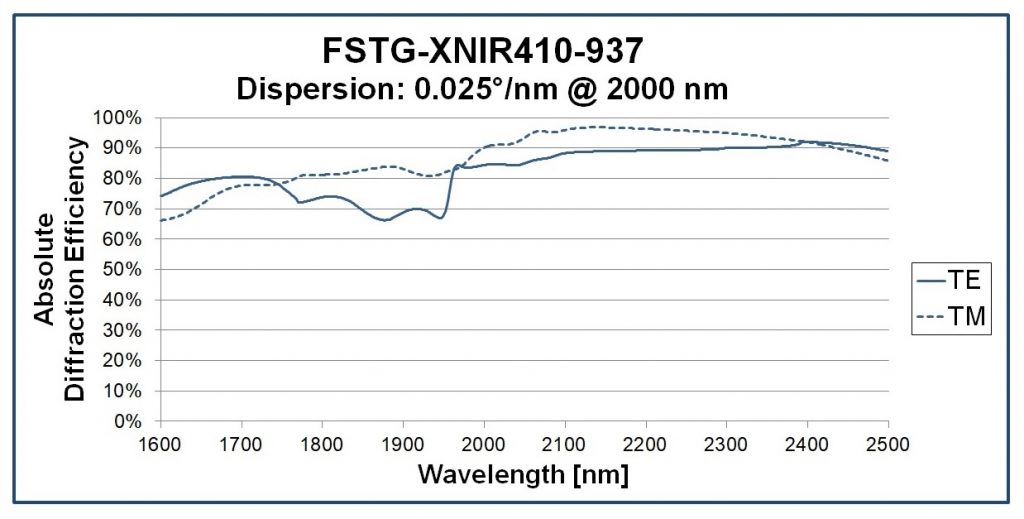

Typical Grating Performance
Download Product sheet
Spectrometer-Grating-FSTG-XNIR410-937
Ordering
The FSTG-NIR410-937 is available for online purchase by either Credit Card or wire transfer, or you can contact us for a quotation.
Please contact us for volume pricing.
We are also happy to work with you to design an optimal grating for your OEM requirements. Click here to specify your requirements for a discussion or quotation.
