PING-1000-042

PING C-band Telecom Grating


Product Specifications

Parameter Specification
Grating technologySurface relief, etched transmission gratings
Production technologyHolographic/lithographic stepper and RIE etching
Grating resolution1000 l/mm
Illumination bandwidth1525 nm - 1575 nm
Angle of incidence 50 deg
Diffraction efficiency (TE & TM)> 90%
PDL< 0.25 dB
Materials100% dielectric materials
Grating area 40 mm x 37 mm
Chip size43.6 mm x 38 mm
Chip thickness1 mm

Typical Grating Performance:

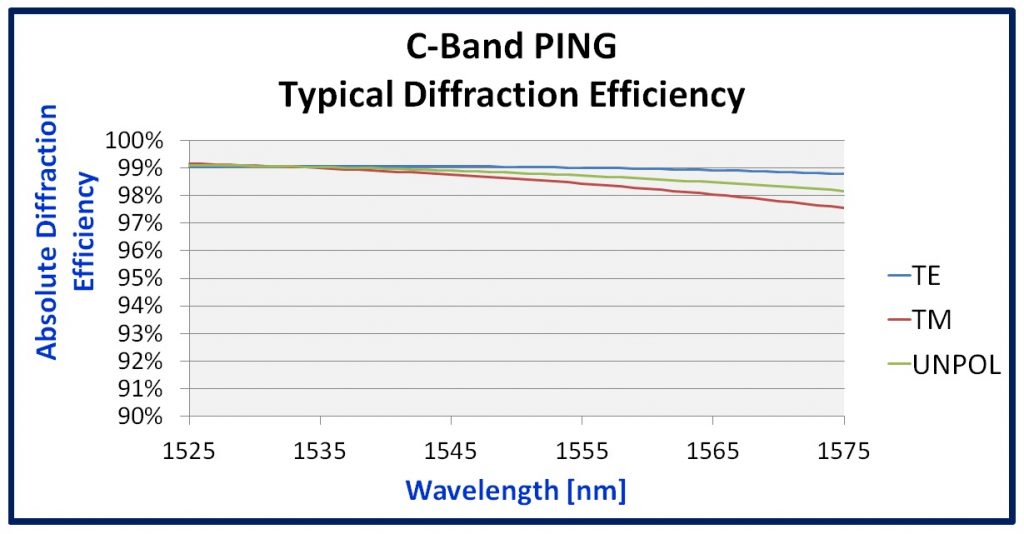

PING (Telecom C-Band) Grating Performance

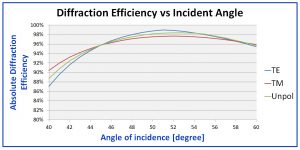

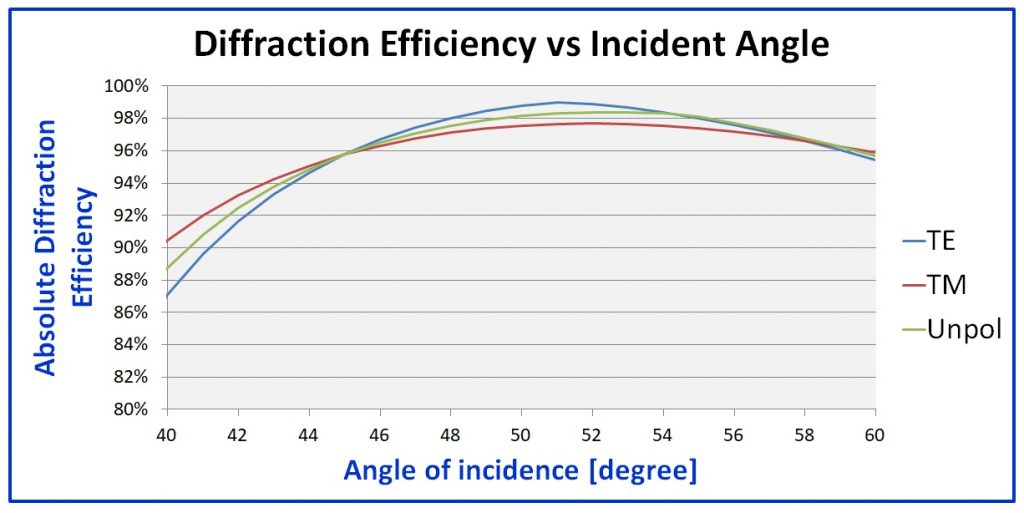

Angle Dependency of PING Gratings

Download Product Sheets

Ibsen-Product-Sheets-PING-1000-042

Ordering

This grating is available for online purchase by Credit Card or paypal payment:

PING-1000-042: Select quantity

We are also happy to work with you to design an optimal grating for your OEM requirements. Click here to specify your requirements for a discussion or quotation.
